IMRAK 31019″ wall-mount rack cabinet in assembly kit, with 360° access
- Manufacturer
IMRAK 310 is the wall-mount cabinet for floor cabinets and peripheral installations, where space is limited and cabling needs to be kept tidy. The assembly kit reduces transport volume and allows assembly by a single person.
The structure consists of two frame assemblies with a top cover and bottom base; side panels and covers are removable and provide 360° access to cabling. The front 19″ uprights are adjustable and compliant with IEC 60297, with a load capacity of 40 Kg. The front door, glass or metal, is reversible and fitted with a lock.
Technical data
Features
- Cabinet for wall mounting
- Available in assembly kit, easy to install
- Frame structure consisting of 2 frame assemblies and 2 covers (top/bottom)
- Load capacity up to 40 Kg
- Adjustable front 19" rack uprights, one-piece and compliant with IEC60297
- Optimized top, bottom and front cable routing at 360°
- Front door in glass or metal with reversible opening and lock
- Ventilated side panels, easily removable
- Possibility to arrange multiple cabinets side by side without coupling kit
- Provision for mounting a complete grounding set in compliance with EN 60950 standard
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 7016Anthracite grey
- RAL 9005Jet black
Configurations
How this series can be ordered: the versions built so far, each with what sets it apart.
IMRAK® 310 PRIMARY
Versione standard – Porta anteriore a vetro e pannello posteriore con fori di fissaggio
IMRAK® 310 PRIMARY
Versione standard – Porta frontale in metallo e pannello posteriore con fori di fissaggio

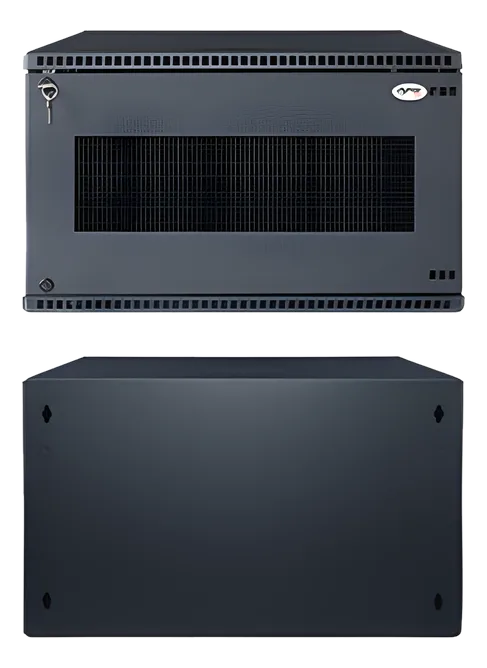

IMRAK® 310 PRIMARY
Versione standard – Porta frontale ventilata in metallo e pannello posteriore con fori di fissaggio

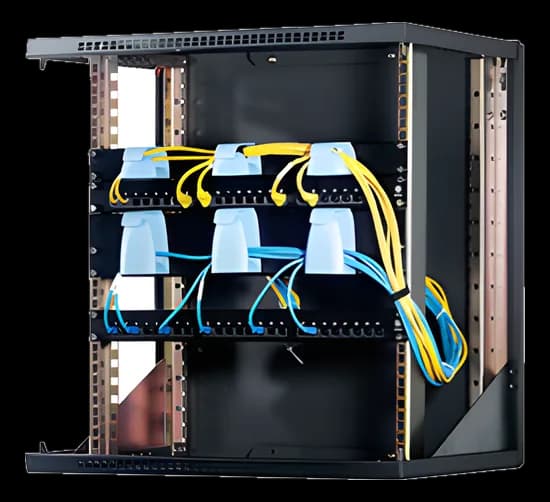

IMRAK® 310 PRIMARY
Versione standard · Telaio interno con esempio cablaggio
Documentation
Cabinet part numbers
The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.
| Part number | Description | Rack units | Dimensions |
|---|---|---|---|
| VT941-287062 | IMRAK 310 Primary cabinet with metal door | 7 U | 600 x 400 mm (L x P) |
| VT941-287064 | IMRAK 310 Primary cabinet with glass door | 7 U | 600 x 400 mm (L x P) |
| VT941-287086 | IMRAK 310 Primary cabinet with metal door | 7 U | 600 x 500 mm (L x P) |
| VT941-287088 | IMRAK 310 Primary cabinet with glass door | 7 U | 600 x 500 mm (L x P) |
| VT968-500231 | IMRAK 310 Primary cabinet with vented metal door | 7 U | 600 x 400 mm (L x P) |
| VT941-287070 | IMRAK 310 Primary cabinet with metal door | 12 U | 600 x 400 mm (L x P) |
| VT941-287072 | IMRAK 310 Primary cabinet with glass door | 12 U | 600 x 400 mm (L x P) |
| VT941-287094 | IMRAK 310 Primary cabinet with metal door | 12 U | 600 x 500 mm (L x P) |
| VT941-287096 | IMRAK 310 Primary cabinet with glass door | 12 U | 600 x 500 mm (L x P) |
| VT941-287078 | IMRAK 310 Primary cabinet with metal door | 17 U | 600 x 400 mm (L x P) |
| VT941-287080 | IMRAK 310 Primary cabinet with glass door | 17 U | 600 x 400 mm (L x P) |
| VT941-287102 | IMRAK 310 Primary cabinet with metal door | 17 U | 600 x 500 mm (L x P) |
| VT941-287104 | IMRAK 310 Primary cabinet with glass door | 17 U | 600 x 500 mm (L x P) |
Accessories
The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.
| Photo | Part number | Description |
|---|---|---|
 | 003-200-00002 | APW catalog item in the 19″ Rack Cabinets category |
 | 003-200-00003 | APW item in the 19″ Rack Cabinets category, with derived configurations |
 | 003-200-00004 | 19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug |
 | VA937-598663 | Cable entry brush kit |
 | VK385-775723 | Kit of metal double rings for cable support (10 pcs) |
 | VK385-776190 | M6 wing nuts kit, 50 pcs |
 | VK385-776191 | M6×12 mm screws and washers kit, 50 pcs |
 | VK385-776196 | 1U panel kit with metal hooks |
 | VK385-776229 | 1U panel kit with plastic hooks |
 | VK385-776232 | Plastic single ring kit for cable support (10 pcs) |
 | VK548-598652 | Fan unit |
| VK593-599790 | 19″ cantilever shelf kit, 255 mm | |
| VK593-599791 | 19″ cantilever shelf kit, 400 mm | |
 | VK937-598513 | Grounding kit |
 | VT555-500515 | Copper ground bar kit, 1U 19″, with insulators |
