Armadio rack 19 pollici da parete APW IMLAN con sportello anteriore in vetro e pannello laterale chiuso

IMLAN19″ wall-mount rack cabinet with removable side panels and 360° access

Manufacturer

IMLAN is the wall cabinet for peripheral installations and floor cabinets, where cabling must be routed carefully and wall space is limited.

It consists of a frame, top cover, bottom base, removable side panels and a front door; the removable panels and covers provide 360° access. It is designed for 19″ rack rails with side cable routing and has a load capacity of 80 Kg. The perforations in the panels ensure ventilation, further expandable by removing the grille covers. Multiple IMLAN units can be placed side by side without a coupling kit.

Request information Full specifications ↓

Technical data

Features

Wall cabinet for wall mounting
Frame structure composed of 2 frame assemblies and 2 covers (top / bottom)
Load capacity up to 80 Kg
Front 19" rack rails, adjustable, compliant with IEC60297, with integrated side cable routing
Top, bottom and front cable routing optimized at 360°. Rear cable routing
Front door in glass or metal with reversible opening and central key lock
Easily removable side panels
Possibility of arranging multiple cabinets side by side without a coupling kit
Provision for mounting a complete grounding set in compliance with EN 60950

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey

Technical specifications

Rack units	15 U12 U6 U22 U9 U

Mounting	Wall Mount
Dimensions	L 600 mm · P 400 / 500 / 600 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

IMLAN PRIMARY
Versione standard · Porta anteriore a vetro
IMLAN PRIMARY
Versione standard · Porta anteriore in metallo

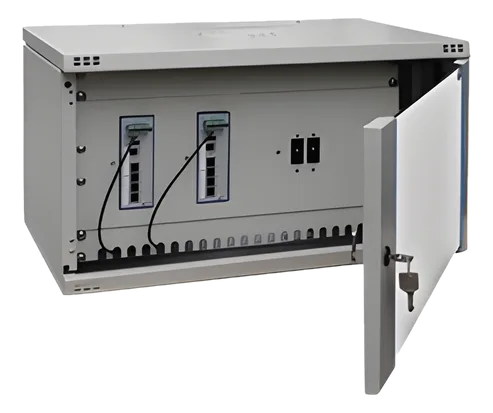

IMLAN
