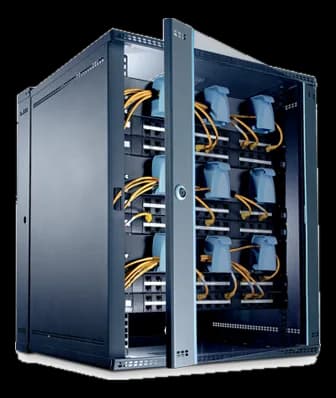

IMRAK 41019″ wall-mount rack cabinet with welded structure, optional rear extension
- Manufacturer
IMRAK 410 is the wall-mount cabinet for offices and environments where the rack remains in view: welded structure, compact dimensions, refined finish. It can also be installed on walls with an irregular surface.
The front 19″ uprights are adjustable and compliant with IEC 60297, with a load capacity of 40 Kg. Ventilation grilles on the top and base, with snap-fit grille covers, increase ventilation, and an optional 1U ventilation unit is available on the top. The optional 100 mm rear extension, with reversible hinges, allows the front body to be rotated by more than 90° to reach the rear of the equipment.
Technical data
Features
- Cabinet for wall mounting
- Fully welded frame structure
- Load capacity up to 40 Kg
- Adjustable front 19" rack uprights, one-piece and compliant with IEC60297
- Glass or metal front door with reversible opening and central key lock
- Optional 100 mm rear extension to allow rotation of the cabinet's front body and access to the rear
- Provision for mounting a complete grounding set in compliance with EN 60950
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 7016Anthracite grey
Configurations
How this series can be ordered: the versions built so far, each with what sets it apart.

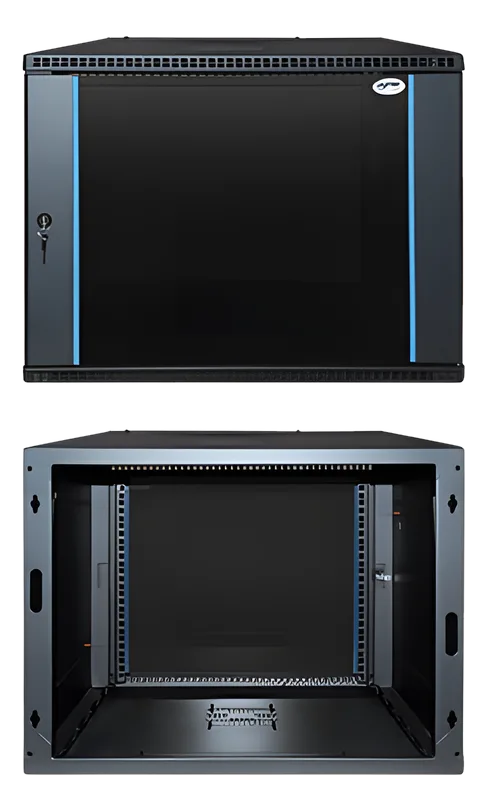

IMRAK® 410 PRIMARY
Versione standard · Porta anteriore a vetro
IMRAK® 410 PRIMARY
Versione standard con retrosezione · posteriore
IMRAK® 410 PRIMARY
Versione configurata · Porta a cornice in Lexan

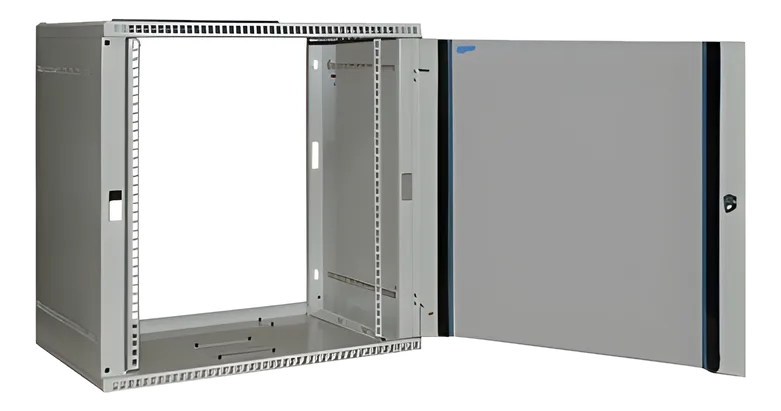

IMRAK® 410 PRIMARY
Versione configurata · RAL 7032
Documentation
Cabinet part numbers
The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.
| Part number | Description | Rack units | Dimensions |
|---|---|---|---|
| VT937-288111 | IMRAK 410 Primary cabinet with glass door | 6 U | 600 x 400 mm (L x P) |
| VT937-288115 | IMRAK 410 Primary cabinet with glass door | 6 U | 600 x 500 mm (L x P) |
| VT937-288123 | Rear section | 6 U | — |
| VT937-288112 | IMRAK 410 Primary cabinet with glass door | 9 U | 600 x 400 mm (L x P) |
| VT937-288116 | IMRAK 410 Primary cabinet with glass door | 9 U | 600 x 500 mm (L x P) |
| VT937-288124 | Rear section | 9 U | — |
| VT937-288113 | IMRAK 410 Primary cabinet with glass door | 12 U | 600 x 400 mm (L x P) |
| VT937-288117 | IMRAK 410 Primary cabinet with glass door | 12 U | 600 x 500 mm (L x P) |
| VT937-288125 | Rear section | 12 U | — |
| VT937-288114 | IMRAK 410 Primary cabinet with glass door | 15 U | 600 x 400 mm (L x P) |
| VT937-288118 | IMRAK 410 Primary cabinet with glass door | 15 U | 600 x 500 mm (L x P) |
| VT937-288126 | Rear section | 15 U | — |
Accessories
The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.
| Photo | Part number | Description |
|---|---|---|
 | 003-200-00002 | APW catalog item in the 19″ Rack Cabinets category |
 | 003-200-00003 | APW item in the 19″ Rack Cabinets category, with derived configurations |
 | 003-200-00004 | 19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug |
 | VA937-598663 | Cable entry brush kit |
 | VK385-775723 | Kit of metal double rings for cable support (10 pcs) |
 | VK385-776190 | M6 wing nuts kit, 50 pcs |
 | VK385-776191 | M6×12 mm screws and washers kit, 50 pcs |
 | VK385-776196 | 1U panel kit with metal hooks |
 | VK385-776229 | 1U panel kit with plastic hooks |
 | VK385-776232 | Plastic single ring kit for cable support (10 pcs) |
 | VK548-598652 | Fan unit |
| VK593-599790 | 19″ cantilever shelf kit, 255 mm | |
| VK593-599791 | 19″ cantilever shelf kit, 400 mm | |
 | VK937-598513 | Grounding kit |
 | VT555-500515 | Copper ground bar kit, 1U 19″, with insulators |
