IMLAN B-SIDE19″ wall-mount rack cabinet with additional 6U side rails for deep equipment
- Manufacturer
IMLAN B-SIDE is designed for cases where active equipment and patch panels must coexist on the same wall, and available depth is insufficient for a traditional cabinet.
The additional 19″ side uprights allow housing systems 500 mm deep in a wall-mount frame only 300 mm deep, with 12U front plus 6U side and a load capacity of 80 Kg. An open frame version is also available. The removable panels provide 360° access, and the position of the 19″ uprights keeps cables accessible both on the front and on the rear.
Technical data
Features
- Wall cabinet for wall fixing
- Frame structure composed of 2 frame assemblies and 2 covers (top / bottom)
- Load capacity up to 80 Kg
- Additional 6U 19" side rails for vertical equipment mounting
- Front 19" 12U rack uprights, adjustable, compliant with IEC60297, with integrated side cable routing
- 360° optimized top, bottom and front cable routing. Rear cable routing
- Front door in glass or metal with reversible opening and lock
- Ventilated and easily removable side panels
- Possibility of arranging multiple cabinets side by side without coupling kit
- Provision for mounting a complete grounding set in compliance with EN 60950
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 7016Anthracite grey
Configurations
How this series can be ordered: the versions built so far, each with what sets it apart.
IMLAN B-SIDE PRIMARY
Versione standard · Vista frontale
IMLAN B-SIDE PRIMARY

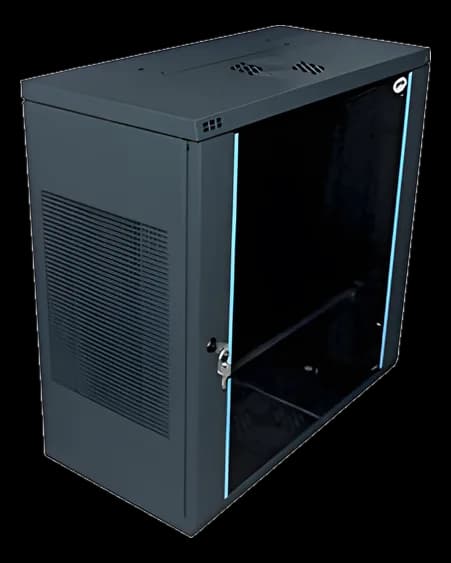

Versione standard · Vista prospettica
IMLAN B-SIDE PRIMARY

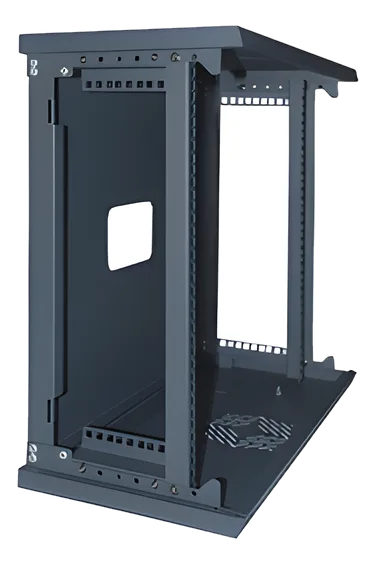

Versione standard · Telaio interno con vista unità 19” laterali
IMLAN B-SIDE PRIMARY
Versione standard · Dettaglio telaio
Documentation
Cabinet part numbers
The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.
| Part number | Description | Rack units | Dimensions |
|---|---|---|---|
| VT944-750007 | 12U + 6U x 300 mm wall-mount cabinet | — | — |
Accessories
The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.
| Photo | Part number | Description |
|---|---|---|
 | 003-200-00002 | APW catalog item in the 19″ Rack Cabinets category |
 | 003-200-00003 | APW item in the 19″ Rack Cabinets category, with derived configurations |
 | 003-200-00004 | 19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug |
 | C12ALMST-MT2S | APW catalog item in the 19″ Rack Cabinets category |
 | C16ALMST-IL2S | APW item in the 19″ Rack Cabinets category, with two configurations |
 | VA937-598663 | Cable entry brush kit |
 | VK385-775723 | Kit of metal double rings for cable support (10 pcs) |
 | VK385-776190 | M6 wing nuts kit, 50 pcs |
 | VK385-776191 | M6×12 mm screws and washers kit, 50 pcs |
 | VK385-776196 | 1U panel kit with metal hooks |
 | VK385-776229 | 1U panel kit with plastic hooks |
 | VK385-776232 | Plastic single ring kit for cable support (10 pcs) |
 | VK548-598652 | Fan unit |
| VK593-599790 | 19″ cantilever shelf kit, 255 mm | |
 | VK944-000167 | Grounding kit |
