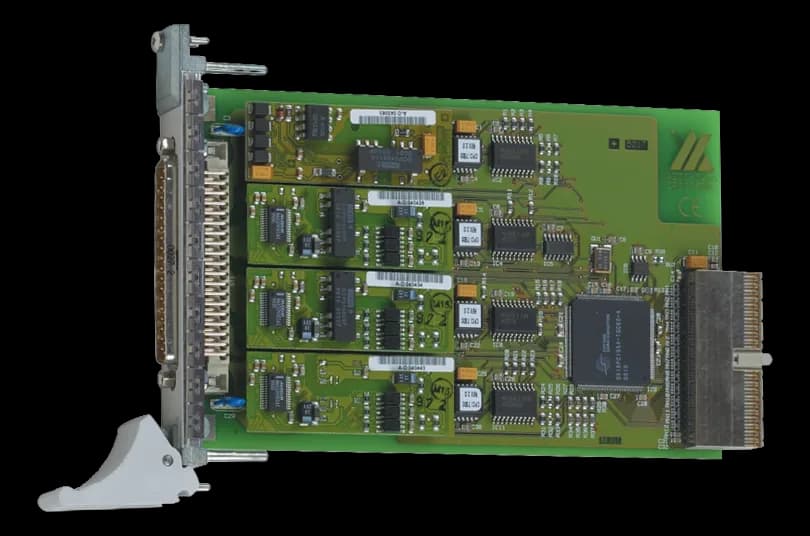

CPCI-7500CompactPCI serial board with interchangeable interface modules
- Manufacturer
CPCI-7500 is a serial interface board for CompactPCI racks: every channel takes its electrical standard from the MX module fitted on board, with or without galvanic isolation. The board measures 160 × 100 mm and weighs 0.2 kg.
Power comes from the bus at 5 V and the galvanic isolation of the modules is 1000 V. The field connection is made on a 37-pin connector.
At a glance
- Memory: 128-byte FIFO buffer for each interface
- Board function: Serial
- Architecture standard: cPCI 3U
- Power input: DC V
Technical specifications
| Memory | 128-byte FIFO buffer for each interface |
|---|
| Connectors | D-Sub(male · front) |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Power input | DC V |
|---|
| Dimensions | 160 × 100 mm |
|---|---|
| Weight | 0.2 kg |
| Storage temperature | -25–70 °C |
|---|---|
| MTBF | 98551 h |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
