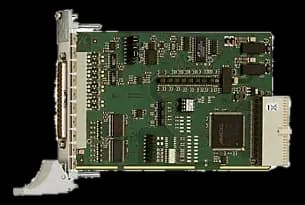

CPCI-300112-bit CompactPCI analog acquisition board
- Manufacturer
CPCI-3001 is a data acquisition board for CompactPCI racks, used in on-machine voltage measurements and in test benches. The board measures 160 × 100 mm and weighs 0.17 kg.
Conversion works at 100 kHz with a 159 kHz input filter and gain programmable from software. The inputs are protected up to ±40 V and separated from the bus with 500 V of isolation.
At a glance
- Board function: Analog and digital I/O
- Architecture standard: cPCI 3U
- Operating temperature: -40–85 °C
Technical specifications
| Connectors | D-Sub(male · front) |
|---|
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | cPCI 3U |
| Power consumption | 1.5 W(+5 V) |
|---|
| Dimensions | 160 × 100 mm |
|---|---|
| Weight | 0.17 kg |
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -25–70 °C |
| MTBF | 75867 h |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
