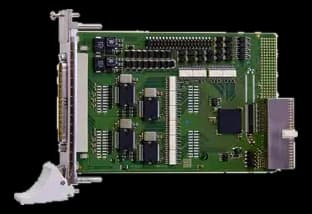

cPCI-156432-channel CompactPCI digital I/O board
- Manufacturer
cPCI-1564 is a digital input and output board in CompactPCI form factor, suited to racks installed in environments without climate control. The board measures 160 × 100 mm and weighs 0.2 kg.
The outputs are separated from the bus up to 1000 V through optocouplers and the field signals work at a nominal 24 V. Three 32-bit counters up to 500 kHz find room on board.
At a glance
- Watchdog: Yes
- Serial interfaces: 16
- Channels: 32 channel
- Board function: Analog and digital I/O
- Architecture standard: cPCI 3U
Technical specifications
| Watchdog | Yes |
|---|
| Serial interfaces | 16 |
|---|---|
| Connectors | N-pin connector(40-pol. Pfostenstecker (digitale Eingäng)D-Sub(male · front) |
| Channels | 32 channel |
|---|
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | cPCI 3U |
| Power consumption | 0.13–1.15 W(+3.3 V)0.13 W(+5 V) |
|---|
| Dimensions | 160 × 100 mm |
|---|---|
| Weight | 0.2 kg |
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
