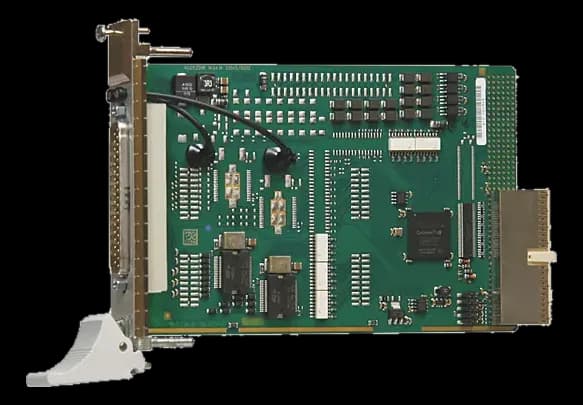

cPCI-1500CompactPCI board with 16 opto-isolated digital inputs and 16 outputs
- Manufacturer
cPCI-1500 is a digital input and output board in CompactPCI form factor, used in industrial racks for the direct connection of machine signals. The board measures 160 × 100 mm and weighs 0.2 kg.
Separation from the bus is entrusted to optocouplers with 1000 V of isolation, while the field connection is made on a front 37-pin D-Sub connector.
At a glance
- Watchdog: Yes
- Channels: 16 channel
- Board function: Analog and digital I/O
- Architecture standard: cPCI 3U
Technical specifications
| Watchdog | Yes |
|---|
| Connectors | D-Sub(male · front) |
|---|
| Channels | 16 channel |
|---|
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | cPCI 3U |
| Power consumption | 1.1 W(+5 V)0.24 W(+24 V) |
|---|
| Dimensions | 160 × 100 mm |
|---|---|
| Weight | 0.2 kg |
| Storage temperature | -25–70 °C |
|---|---|
| MTBF | 85150 h |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
