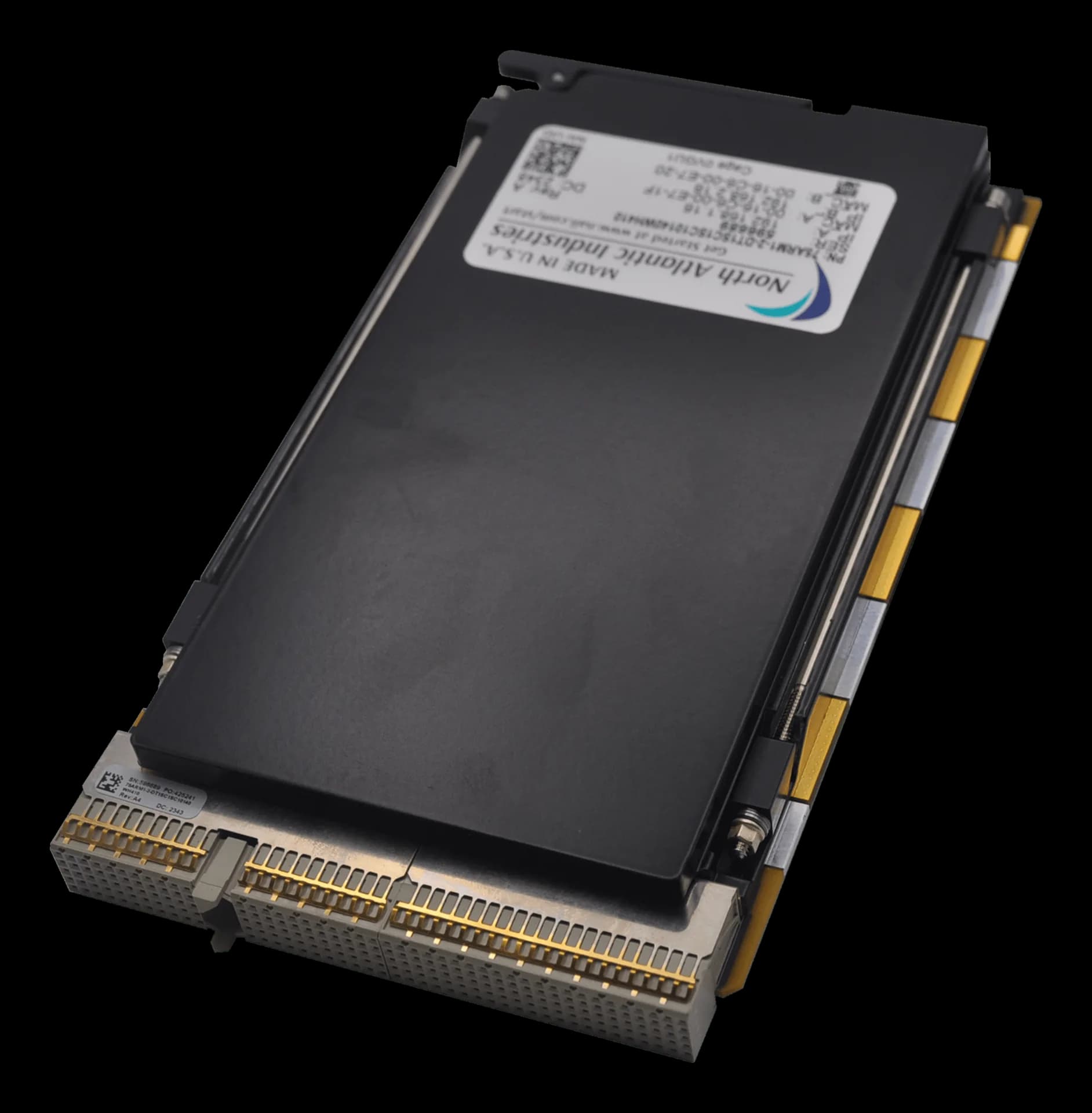

75ARM13U CompactPCI board with dual core processing
- Manufacturer
75ARM1 is a board in 3U CompactPCI form factor, meant for industrial racks where processing and mass storage have to sit in the same slot.
The weight of the board is 0.354 kg, a figure that counts in the mechanical sizing of an enclosure subject to shock and vibration.
At a glance
- Processor: ARM® Cortex®-A9 Dual Core 800 MHz Processor
- CPU cores: 2
- Memory: 512 MB DDR3 SDRAM GB
- RAM type: DDR3
- Storage: 32 GB SATA II NAND Flash
Technical specifications
| Processor | ARM® Cortex®-A9 Dual Core 800 MHz Processor |
|---|---|
| CPU cores | 2 |
| Memory | 512 MB DDR3 SDRAM GB |
|---|---|
| RAM type | DDR3 |
| Storage | 32 GB SATA II NAND FlashThe 75ARM1 utilizes a SATA II NAND Flash memory capable of providing up to 32 GB of storage, offering high-capacity, durable, reliable, and (max) |
|---|
| Ethernet ports | two 10/100/1000 Base-T Ethernet portsThe 75ARM1 has two 10/100/1000 Base-T Ethernet ports, with the option to have one to the rear, one to the front I/O, or both to the rear.(optional) |
|---|---|
| Connectors | N-pin connector(male · front) |
| Other I/O | J4 pins 25, 50 (Connected to cPCI system ground). |
| Channels | 2 channel |
|---|
| Board function | CPU / Processor |
|---|---|
| Architecture standard | cPCI 3U |
| Form factor | 3U Eurocard |
| Bus interface | 3.3 V signaling voltage, and is 5 V tolerantcPCI |
| Weight | 0.354 kg |
|---|
| Storage temperature | -55–105 °C |
|---|
| Operating systems | LinuxVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
