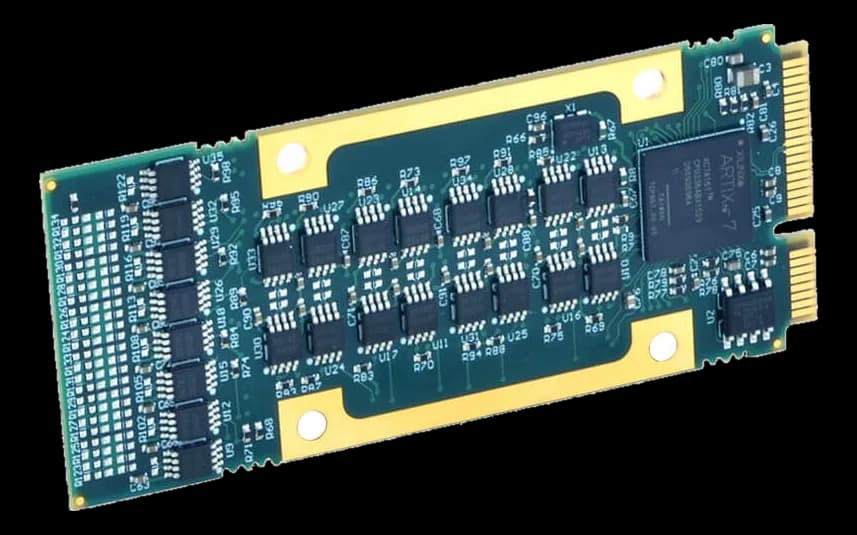

AP484Six-channel AcroPack counter/timer mezzanine module on PCI Express, Xilinx Artix-7 FPGA
- Manufacturer
- Configurations
- 1 available configurations
AP484 belongs to the AcroPack line, which brings Acromag's Industry Pack mezzanine modules onto a PCIe interface while retaining the functionality and memory map of the IP modules: a tech-refresh, not a redesign. The rugged COTS form factor works on PCIe, VPX and XMC carriers in military, defence, automation and aerospace applications, as well as in scientific and development laboratories.
Configuration is handled almost entirely through a single register, so programming stays compact; the modes cover event counting, frequency and period/pulse-width measurement, quadrature position and generation of square waves or pulse trains. The module, 70 mm long, mates with the carrier through a downward-facing 100-pin Samtec connector, fifty pins of which are available as field signals.
Available as part number AP484E-LF, with six 32-bit RS422 counters.
At a glance
- 62.5 MHz time base
- Internal, software or external trigger
- Optional AP-CC-01 conduction-cool kit
Technical specifications
| FPGA / processing | Xilinx® Artix-7 |
|---|
| Connectors | A down facing 100 pin Samtec connector will mate with the carrier card. Fifty of these signals are available as field I/O signals. |
|---|
| Isolation & signal | Interface for events and pulse/period measurements.Also triggers load of watchdog timer register. Level is RS422 differential digital. |
|---|---|
| Counter | Six 32-bit counters – RS422/RS485. |
| Trigger modes | SoftwareExternal digital triggerInternal timer |
| Architecture standard | AcroPackPCI Express |
|---|---|
| Board function | Clock / TimingI/O |
| Power input | 3.3V DC ± 5%. |
|---|
| Dimensions | 70mm long, this is 19.05mm longer than the full length mini PCIe card at 50.95mm · the same as mPCIe board of 30mm |
|---|
| Cooling | Conduction-cooled(optional) |
|---|---|
| Operating temperature | -40–70 °C-40–85 °C(optional) |
| Storage temperature | -55–150 °C |
| Certifications | RoHS |
|---|
| Operating systems | WindowsLinuxVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
