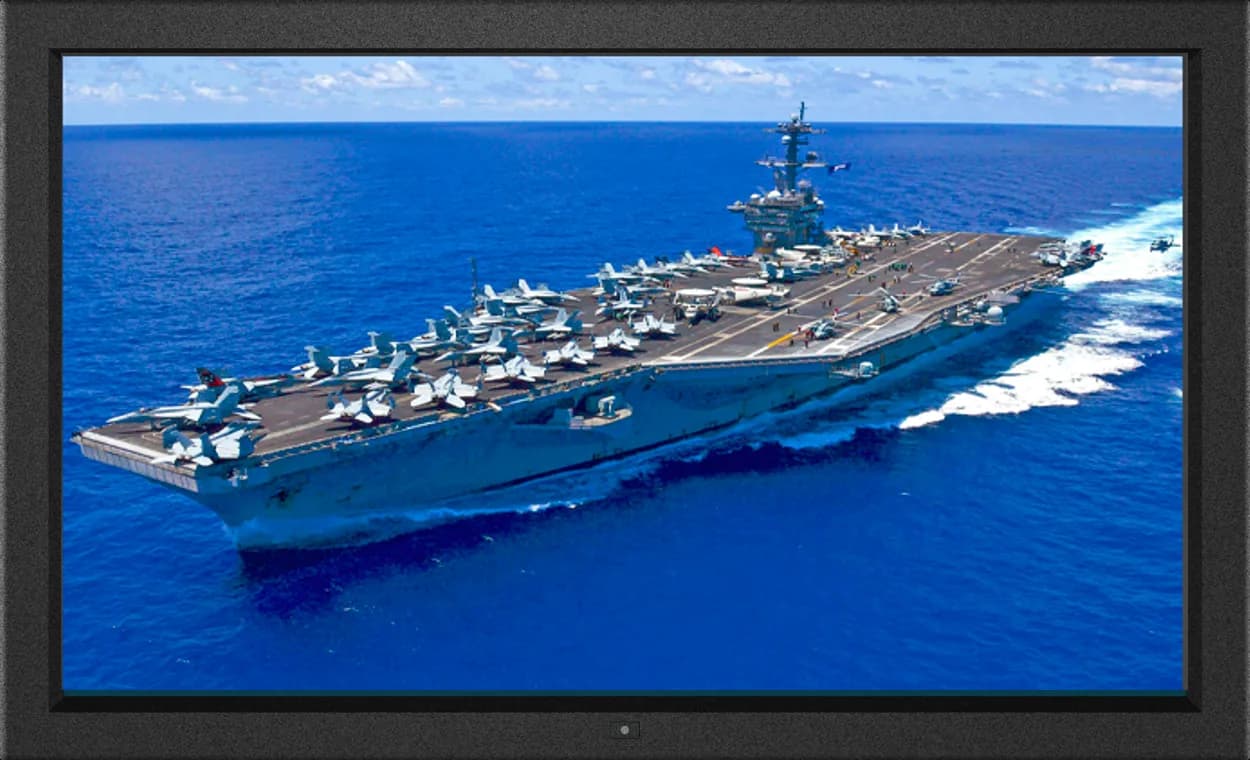

AP-F3231.5" industrial monitor with anti-glare LED panel
- Manufacturer
- Configurations
- 5 available configurations
AP-F32 is an Austin Hughes industrial monitor in a wall format, designed for shared display: mimic panels, line monitoring and department information, where the content must stay readable even from a distance.
Operation is specified between 0~55 °C and the weight is 20.9 kg; storage is allowed over a -20~60 °C range.
The family counts 4 child configurations; an example is the AP-F32/DC12 variant.
At a glance
- Display size: 31.5 ″
- Resolution: 1920x1080 FHD
- Video inputs: DVI
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 31.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Video inputs | DVIVGAComposite BNCDisplayPort(optional · 1.0)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200 : 1(typ) |
| Backlight type | LED |
| Response time | 8 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.363 mm |
| Display colors | 16.7M, 8-bit |
| Active area | 698.4 × 392.85 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 2ch Linear PCM30kΩ / 750mV(input)10W x 2(speaker)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 56 W9 W(saving)2 W(off) |
| Mounting | Wall MountVESA Mount(300x300) |
|---|---|
| Weight | 20.9 kg25.7 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| Certifications | FCCWEEE (2012/19/UE)CEUKCAREACHRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-F32/DC12 |
| AP-F32/DC125 |
| AP-F32/DC24 |
| AP-F32/DC48 |
| AP-F32/TPC10 |
