MicroTCA Blades & Modules (MTCA.0)

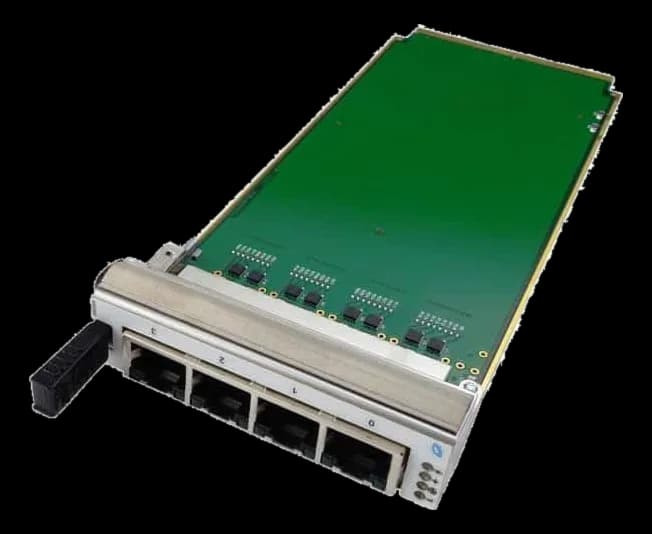

AMC995AMC module with four RJ-45 connectors on the front
- Manufacturer
AMC995 is an AMC module that exposes the connections of the MicroTCA system outwards: the four front RJ-45 connectors allow structured cabling to be landed without dedicated adapters.
Stated draw is minimal, in keeping with an interface-only function that carries out no onboard processing, and weighs negligibly on the power budget of the chassis. The certifications provided for are CE, FCC and UL, with a stated storage range from -40 to 85 °C.
At a glance
- Board function: I/O
- Architecture standard: AMC
- Form factor: Single mid-size
- Power consumption: 1 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC |
| Form factor | Single mid-size |
| Bus interface | Quad RJ-45 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 1 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
