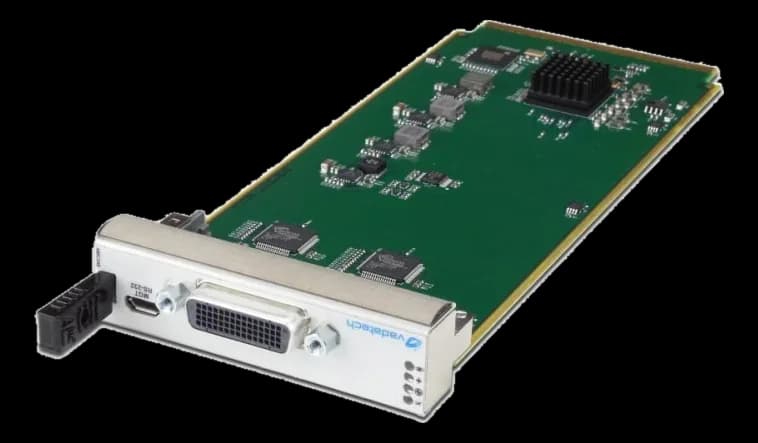

AMC348Mid-size AMC.1 video module with output up to 1920x1080
- Manufacturer
AMC348 is a video module in AMC.1 mid-size format for MicroTCA shelves: the graphics output reaches 1920x1080 pixels and is brought to the front panel by a Low Force Helix connector, the compact answer used by the other video adapters of the series too.
Against the larger video modules it sits at a low draw, 3 W, with 16 MB of onboard memory and storage temperature from -40 to 85 °C. Management runs over IPMI 2.0 and software support covers Linux and Windows.
At a glance
- Memory: 16 MB of memory
- Board function: GPU / Graphics
- Architecture standard: AMC.1
- Form factor: Single mid-size
- Power consumption: 3 W
Technical specifications
| Memory | 16 MB of memory |
|---|
| Ethernet ports | Dual ports using "Y" Adapter Cable, either DVI or VGA (see ordering options) |
|---|---|
| Other I/O | Screen resolutions up to 1920x1080 |
| Board function | GPU / Graphics |
|---|---|
| Architecture standard | AMC.1AMC |
| Form factor | Single mid-sizeSingle full-size(optional) |
| Bus interface | Low Force Helix (LFH) connectorx1 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|
| Certifications | ULFCCCE |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
