AMC341AMC.1 Dual Link DVI or VGA video module up to 2560x1600
- Manufacturer

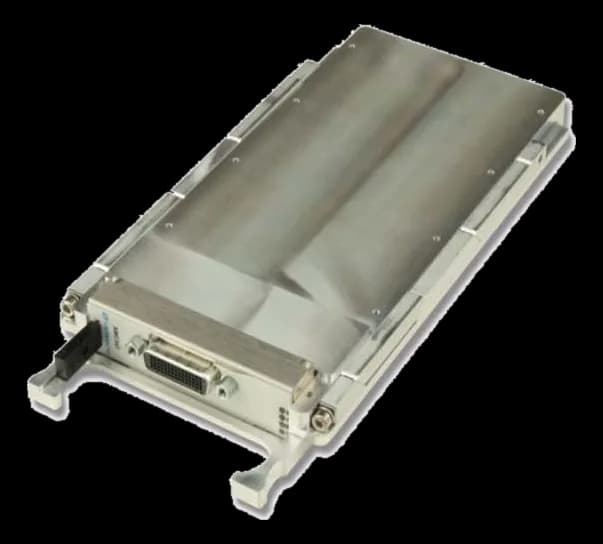

AMC341 brings two video outputs on an AMC.1 module: the 60-pin Low Force Helix connector of the front panel splits with a Y cable towards two DVI-I or two HD15, with a DVI to HDMI adapter provided for among the order options.
Graphics memory is 128 MB GDDR3 and resolution reaches 2560x1600 pixels at 60 Hz. Storage temperature runs from -40 to 85 °C and software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Memory: D = HDMI Adapter
- Board function: GPU / Graphics
- Architecture standard: AMC.1
Technical specifications
| Memory | D = HDMI Adapter |
|---|
| Ethernet ports | Dual ports using "Y" Adapter Cable, either DVI or VGA (see ordering options) |
|---|---|
| Other I/O | Screen resolutions up to 2560x1600 @ 60 Hz |
| Board function | GPU / Graphics |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | Low Force Helix (LFH) 60-pin connector |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|
| Certifications | CEFCCUL |
|---|
| Operating systems | LinuxSolarisWindowsVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
