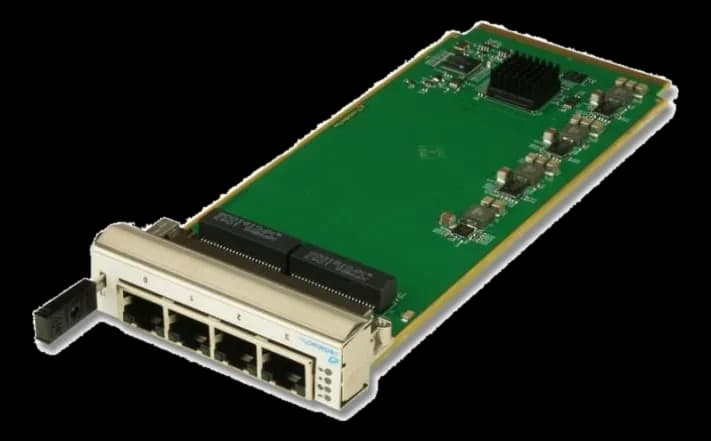

AMC237AMC module with four copper GbE ports on RJ-45
- Manufacturer
AMC237 is an AdvancedMC module that adds four copper Gigabit Ethernet ports to an AdvancedTCA or MicroTCA shelf, with RJ-45 connectors on the front panel.
The link towards the carrier is second generation PCIe and the module carries out checksum offload, TCP segmentation and RSS. The format is single-module, with a half-size, mid-size or full-size panel; the operating systems recognized are Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Form factor: Single mid-size
- Power consumption: 5 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Form factor | Single mid-size |
| Bus interface | Gen2 x4Quad RJ-45 connectors |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|
| Certifications | CEULFCC |
|---|
| Operating systems | VxWorksLinuxWindowsSolaris |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
