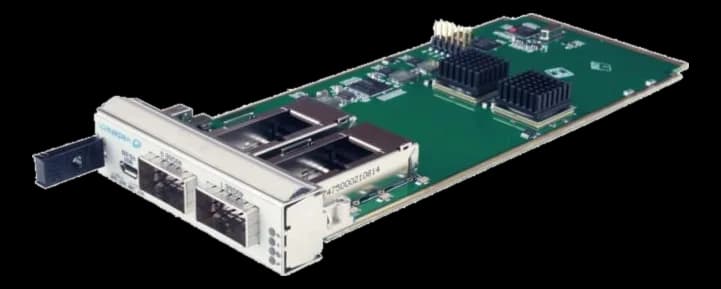

AMC233AMC.2 Ethernet conversion module from XLPPI to XLAUI and XFI
- Manufacturer
AMC233 is an Ethernet conversion module in AMC.2 format: it works from XLPPI towards XLAUI and XFI, bringing to two QSFP+ ports of the front panel both an aggregated link and separate channels.
EDC equalization covers the SR4 and LR4 optics and CR4 copper, so as to serve different runs without changing module. Stated draw is 6 W, storage temperature runs from -40 to 85 °C and management runs over IPMI 2.0, with the service serial exposed on a front micro USB.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.2
- Form factor: Single mid-size
- Power consumption: 6 W
Technical specifications
| Ethernet ports | 40GbE or (4x) 10GbE via the QSFP+ Portsdual QSFP+ Ports |
|---|
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.2AMC |
| Form factor | Single mid-size |
| Bus interface | Dual QSFP+ / Micro USB for RS-232 (Management) |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 6 W |
|---|
| Rugged / conformal coating | 0 = No coating / 1 = Humiseal 1A33 Polyurethane / 2 = Humiseal 1B31 Acrylic(Humiseal 1A33/1B31) |
|---|---|
| Dimensions | 73.5 × 180.6 mm |
| Storage temperature | -40–85 °C |
|---|
| Certifications | ULFCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
