AIE-KT78_68NVIDIA Jetson Thor Edge AI system, M.2 NVMe storage, CE certified, FCC Class A, UKCA
- Manufacturer
- Configurations
- 2 available configurations

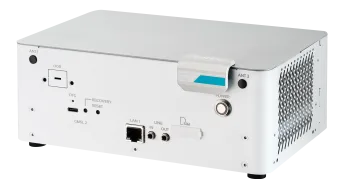

AIE-KT78/68 is the Aetina DeviceEdge system for cobots, humanoid robotics, smart factory and smart-city roadside nodes: inference stays in the field, not in the cloud. Linux operating system, 220 x 143 x 80 mm industrial chassis.
Compute uses a GPU with NVIDIA Blackwell architecture and an ARM Neoverse V3AE CPU: multi-modal and Vision-Language-Action models run offline, and deterministic actuator control stays in the same unit, without external motion controllers.
Two configurations: AIE-KT78-1-A1 with Jetson Thor T5000, 14-core CPU and 128 GB LPDDR5X, up to 2070 FP4 TFLOPS; AIE-KT68-1-A1 with Jetson Thor T4000, 12-core CPU and 64 GB LPDDR5X, up to 1200 FP4 TFLOPS.
At a glance
- DC input 9–48 V
- Two RJ45 10GbE ports
- 2x CAN FD, isolated, AIE-KT78 only
- M.2 B-Key slot for 5G/LTE
- Integrated 1 TB M.2 NVMe SSD
Technical specifications
| Graphics | NVIDIA Blackwell architecture GPU |
|---|
| Storage | 1× M.2 M-Key 2280 (NVMe 1TB built-in) |
|---|
| Video outputs | 1× DP 1.4a1 x HDMI 2.0b |
|---|
| Ethernet ports | 1× QSFP28 slot (T5000: 4× 25 GbE, T4000: 3× 25 GbE)2x RS232/RS485/RS4222x Isolated CAN FD (T5000 Only)(RJ45)4 x DI/DO (Isolation) @3.3V(RJ45) |
|---|---|
| USB ports | 1× USB-C for OTG only4× USB-A 3.2 Gen 2 |
| Audio | 1× HD Audio-in/out |
| Wireless | 5G(optional) |
|---|
| Expansion | 1x M.2 M-Key 2280 (NVMe1TB built-in)1x M.2 B-Key 3042/3052 (LTE/4G/5G)1x M.2 E-Key 2230 (WiFi/BT)1x Micro SIM card slot |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9V-48V · supporting 9 to 48V wide-range input and -25°C to +55°C operating temperatures |
| Dimensions | L:220 mm x W:143mm x H:80 mm |
|---|---|
| Weight | 3.171 kg |
| Storage temperature | -40–85 °C |
|---|
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-KT68-1-A1 |
| AIE-KT78-1-A1 |
