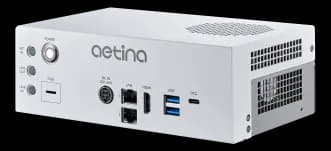

AIE-KO22-32_AIE-KN32-42
- Manufacturer
- Configurations
- 4 available configurations
Jetson Orin Nano/NX · 20–100 TOPS · wall/DIN opt. · −25~70 °C · M.2 NVMe · CE, FCC Class A, UKCA
At a glance
- AI module: NVIDIA Jetson Orin Nano
- Storage: 1× M.2 M-Key 2242 (NVMe 128GB built-in)
- Number of displays: 1
- USB ports: 1× OTG Type-C
- Serial interfaces: 1× RS-422/485 (2-in-1)
Technical specifications
| AI module | NVIDIA Jetson Orin NanoNVIDIA Jetson Orin NX |
|---|
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| Number of displays | 1 |
|---|---|
| Video outputs | 1× HDMI 2.0 Type A |
| Ethernet ports | 2× RJ-45 GbE Ports |
|---|---|
| USB ports | 1× OTG Type-C2x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)(front) |
| Serial interfaces | 1× RS-422/485 (2-in-1)1x RS232 |
| Audio | Line-out / Line-in / Mic (optional with daughter board) |
| Digital I/O | 5× GPIO |
| CAN bus | 1× CAN (isolation; support CAN FD) |
| Other I/O | 1× I2C |
| Wireless | 4G/LTE5GWi-Fi |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 12–24 V |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 196.5 x 124 x 68 mm (7.73 x 4.88 x 2.67") |
| Weight | 1.102 kg |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-KN32-1-S2 |
| AIE-KN42-1-S2 |
| AIE-KO22-1-S2 |
| AIE-KO32-1-S2 |
