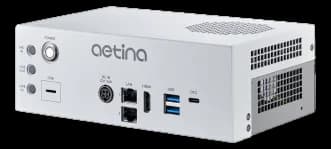

AIE-KO22Wall mount edge AI computer with a Jetson Orin Nano 4GB module
- Manufacturer
- Configurations
- 2 available configurations
AIE-KO22 is an Aetina edge AI platform for machine vision and inline data analysis: it weighs 1.102 kg and keeps the footprint of a small panel device, so processing stays next to cameras and sensors instead of moving to the server room.
The Arm Cortex-A78AE CPU works with 6 cores and LPDDR5 memory on an ARM architecture, under a Linux operating system. One serial port remains available for PLCs and field instrumentation, to integrate the system into existing automation.
At a glance
- AI module: NVIDIA Jetson Orin Nano
- CPU class: ARM Cortex-A78AE
- Processor: 6-core Arm® Cortex® -A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
- Memory: 4GB 64-bit LPDDR5 34 GB/s / 8GB 128-bit LPDDR5 68 GB/s
- RAM type: LPDDR5
Technical specifications
| AI module | NVIDIA Jetson Orin Nano |
|---|---|
| CPU class | ARM Cortex-A78AE |
| Processor | 6-core Arm® Cortex® -A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 |
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores512 Core NVIDIA Ampere, with 16 Tensor Cores |
| Memory | 4GB 64-bit LPDDR5 34 GB/s / 8GB 128-bit LPDDR5 68 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB integrato) |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 2× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen2 (Type-A), banda 10 Gbps condivisa |
| Serial interfaces | 1× UART1× RS-422/485 (2-in-1)1× RS-232 |
| Audio | Line-out / Line-in / Mic (optional with daughter board)(mic-in) |
| Digital I/O | 5× GPIO(bidir) |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT, PCIe/USB 2.0)1× M.2 M-Key 2242 (NVMe 128GB integrato)1× M.2 B-Key 3042/3052 (LTE/4G/5G, USB 3.2/USB 2.0) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Power consumption | 6.4–30.05 W |
| Battery / UPS | With super capacitor, battery(optional) |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 196.5 × 68 × 124 mm |
| Weight | 1.102 kg |
| Cooling | Fan (active) |
|---|---|
| Operating temperature | -25–70 °C |
| Certifications | UKCAFCCCE |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-KO22-1-A1 |
| AIE-KO22-1-S1 |
