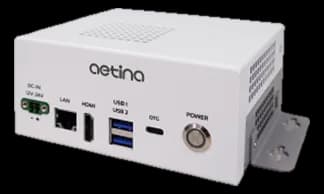

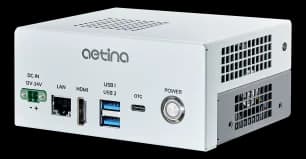

AIE-KO21_31-AIE-KN31_41Edge AI system with NVIDIA Jetson Orin NX or Orin Nano, CE, UKCA, FCC Class A certified
- Manufacturer
- Configurations
- 6 available configurations
The Aetina AIE-KO21/31 and AIE-KN31/41 series is an edge inference system for smart factory, smart city and smart transportation. It runs on Linux with support for JetPack 5.0 and later, in a 123 x 99 x 56 mm enclosure weighing 0.54 kg.
The module defines the variant: Orin Nano 4GB (AIE-KO21), Orin Nano 8GB (AIE-KO31), Orin NX 8GB (AIE-KN31), Orin NX 16GB (AIE-KN41). Storage can be expanded via external M.2 2242 NVMe, not only the onboard drive. The −25~70 °C operating range applies with 0.5 m/s airflow. CE, UKCA and FCC Class A certifications.
At a glance
- Up to 100 TOPS (AIE-KN41)
- NVIDIA Super Mode enabled
- Integrated 128GB M.2 NVMe SSD
- 10 G shock per IEC 60068-2-27
Technical specifications
| AI module | NVIDIA Jetson Orin NanoNVIDIA Jetson Orin NX |
|---|
| Storage | 1× M.2 M-Key 2242 (128GB built-in) |
|---|
| Video outputs | 1× HDMI 2.0 Type A |
|---|
| Ethernet ports | 1× RJ-45 GbE ports |
|---|---|
| USB ports | 2× USB 3.2 Gen2 Type A · 1× OTG Type-C |
| Serial interfaces | 1× UART |
| Audio | LINE IN/OUT, Microphone (optional with daughter board) |
| Digital I/O | 5× GPIO |
| CAN bus | 1× CAN (isolation; support CAN FD) |
| Other I/O | 5× GPIO,1× I2C, 1× RS-232, 1× UART, 1× CAN (Isolation) |
| Expansion | 1× M.2 M-Key 2242 (128GB built-in)1x M.2 E-Key 2230 (WiFi/BT) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 12–24 V |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 123× 99 x 56 mm (48.4 x 38.9 x 22 in) |
| Weight | 0.54 kg |
| Operating temperature | -25–70 °C |
|---|
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-KN31-1-A1 |
| AIE-KN41-1-A1 |
| AIE-KO21-1-A1 |
| AIE-KO21-1-S1 |
| AIE-KO31-1-A1 |
| AIE-KO31-1-S1 |
