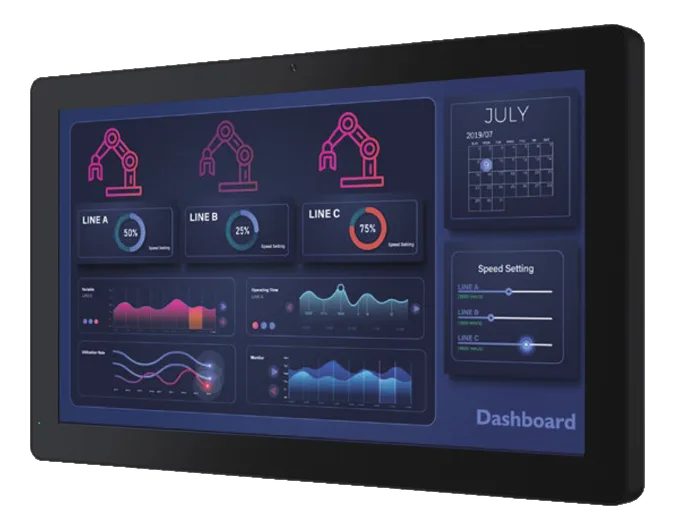

AFL3-W19C-ADLP18.5" fanless industrial Panel PC with IP64 protection
- Manufacturer
- Configurations
- 5 available configurations
AFL3-W19C-ADLP is an industrial Panel PC with an 18.5" display based on 12th/13th generation Intel Core Mobile processors (Alder Lake-P/Raptor Lake-P). The plastic frame with VESA mounting and the Wi-Fi and Bluetooth connectivity allow its integration into production and automation environments.
Fanless cooling eliminates moving parts, while the IP64 protection rating ensures resistance to dust and water splashes. The backlight declares a life of 50000 h and the display reaches a contrast ratio of 1200.
The family varies by CPU generation (12th Gen Alder Lake or 13th Gen Raptor Lake); example configuration: AFL3-W19C-ADLP-i3/8G-R11.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 12th gen (Alder Lake)
- Processor: 12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P)
- RAM type: DDR4
- Maximum RAM: 64 GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake) |
| Processor | 12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P) |
| Memory | Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM (8G Pre-installed) GB(default) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 1× 2.5" SATA 6Gb/s HDD bay |
|---|
| Display size | 18.5 ″ |
|---|---|
| Touchscreen | PCAP(USB) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 1200 : 1 |
| Viewing angle | 170°/170° |
| Backlight MTBF | 50000 hours h |
| Touch controller | EXC3160(EETI) |
| Video outputs | HDMI 1.4b (4K UHD)1× HDMI1× HDMI 2.0 (fino a 3840×2160 @60Hz)(3840x2160) |
| Ethernet ports | LAN1: Intel I226 LM (Intel AMT) LAN2: Intel I226V1× RJ45 (IPMI)2× LAN (Intel I226V 2.5GbE) |
|---|---|
| USB ports | 4× USB 3.2 Gen1x1 (Type-A)4× USB 3.2 Gen1 |
| Serial interfaces | 1× RS-232/422/485 (DB9, AFC)1× RS-232 (DB9) |
| Audio | digital microphoneAMP 3W + 3W (internal speaker)ALC888S |
| Camera | 2-megapixel with low light function, digital microphone |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 2× M.2 M-key 2280 (PCle Gen4 x4)1× M.2 B-key (PCIe x1 or SATA, IPMI) / 1× M.2 E-key 2230 (PCIe 3.0 x1 + USB 2.0 x1 + CNVI, Vpro)1× M.2 B-key 3080 (PCIe x1 or SATA) support IPMI function |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 85.2 W |
| Mounting | VESA Mount |
|---|---|
| Weight | 6.79 kg |
| Chassis material | plastica |
| Chassis color | Black(Black C) |
| IP rating | Front IP64 |
|---|---|
| Operating temperature | 0–50 °C |
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEFCCUKCA |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Processor |
|---|---|
| AFL3-W19C-ADLP-i3/8G-R11 | — |
| AFL3-W19C-ADLP-i5/8G-R11 | — |
| AFL3-W19C-ADLP-Ri3E/8G-R11 | 13th Generation Intel® Core™ i3-1320PE onboard processor |
| AFL3-W19C-ADLP-Ri5E/8G-R11 | 13th Generation Intel® Core™ i5-1340PE onboard processor |
| AFL3-W19C-ADLP-Ri7E/8G-R11 | 13th Generation Intel® Core™ i7-1370PE onboard processor |
