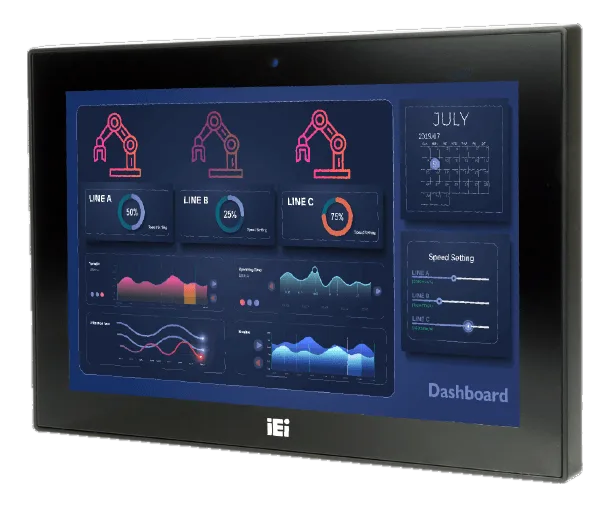

AFL3-W10A-ALFanless Panel PC with quad-core Apollo Lake CPU and 9~30 V power input
- Manufacturer
AFL3-W10A-AL is an industrial Panel PC with fanless cooling and a plastic frame, usable for HMI and operator stations. Mounting is provided in panel, VESA, wall or desk configuration, with support for Linux, Windows and Windows 10 IoT.
The platform is based on an Intel Celeron/Pentium Apollo Lake CPU with 4 cores at a frequency of 1.5~2.4 GHz and a TDP contained between 6 and 10 W, consistent with the absence of fans. The wide-range 9~30 V power input widens the integration options in industrial and mobile settings.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Apollo Lake
- Processor: Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
- CPU frequency: 1.5–2.4 GHz
- CPU TDP: 6–10 W
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Apollo Lake |
| Processor | Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) |
| CPU frequency | 1.5–2.4 GHz |
| CPU TDP | 6–10 W |
| CPU cores | 4 |
| Memory | one 204-pin 1866MHz DDR3L DIMMs support up to 8GB1*4GB DDR3L GB |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal)*1× 2.5” SATA 3Gb/s HDD bay (optional one of the two) |
|---|
| Display size | 10.1 ″ |
|---|---|
| Touchscreen | PCAP(USB) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x6001366x7681280x8001024x768 XGA |
| Contrast ratio | 800:1 |
| Viewing angle | 160 / 160150 / 145170 / 160 |
| Pixel pitch | 0.1695 (H) x 0.1695 (V) mm |
| Display colors | 16.7M |
| Backlight MTBF | 15000 h |
| Touch controller | EETI 80H60EETI EXC3146EXC3146(EETI)EXC3160(EETI) |
| Video outputs | 1× HDMI |
| Ethernet ports | 2× PCIe GbE by Intel i211 |
|---|---|
| USB ports | 2× USB 3.2 Gen12× USB 2.02× USB 3.2 Gen1x1 |
| Serial interfaces | 1× RS-232/422/485 by RJ45 (Support Auto Flow Control over RS-485)1× RS-232/422/485 (DB9)1× RS-232 (DP9) |
| Audio | ALC269digital microphone1× Line-outRealtek ALC888S |
| Camera | 2-megapixel with low light function, digital microphone |
| Other I/O | 1 x 9V~30V DC Jack · 1 x Power Button · 1 x Reset button · 1 x Clear CMOS button · 1 x AT/ATX switch |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | A+E-key 2230 slot (PCIe/USB signal)(M.2-E) |
|---|
| Power input | 9–30 V |
|---|
| Mounting | VESA MountDesktop / StandWall MountPanel Mount |
|---|---|
| Dimensions | 262 x 181 x 42 mm |
| Cutout dimensions | 236 x 149 mm |
| Weight | 1.06 kg |
| Chassis material | plastica |
| Chassis color | Black(Black C) |
| IP rating | Front IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Windows 10 IoTWindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
