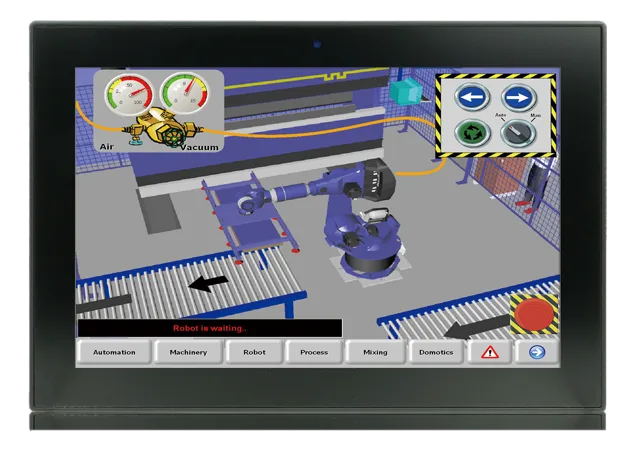

AFL3-W10A-BT10.1" fanless panel PC with IP64 rating and wide-range DC power input
- Manufacturer
- Configurations
- 1 available configurations
AFL3-W10A-BT is an industrial panel PC with a 10.1" display, intended for HMI and operator stations in production environments. Mounting supports panel, VESA, wall and desktop configurations, with integrated Wi-Fi and Bluetooth connectivity.
The front provides IP64 protection against dust and water jets, while the fanless design eliminates moving parts. The DC power input accepts an extended range from 9 to 30 V, with a declared consumption of 27.6 W, suited to installations with unregulated power buses.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel® Celeron® J1900 (quad core, 2.0 GHz)
- CPU frequency: 2 GHz
- CPU cores: 4
- Memory: 8GB GB
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel® Celeron® J1900 (quad core, 2.0 GHz) |
| CPU frequency | 2 GHz |
| CPU cores | 4 |
| Memory | 8GB GB2GB DDR3L RAM GB2GB DDR3L SDRAM pre-installed GB(default · 1333MHz) |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | mSATA |
|---|
| Display size | 10.1 ″ |
|---|---|
| Touchscreen | PCAP(USB) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x800 |
| Contrast ratio | 800:1 |
| Viewing angle | 170º / 170º |
| Pixel pitch | 0.1695 (H)×0.1695 (V) mm |
| Display colors | 16.2M |
| Backlight MTBF | 15000 hrs h |
| Touch controller | EETI EXC3146EETI EXC7200 |
| OSD controls | Software OSD |
| Ethernet ports | 2× PCIe GbE (RTL8111E)2× PCIe GbE (RTL8111HN-CG)2× RJ-45 for GbE LAN |
|---|---|
| USB ports | 2× USB 2.02× USB 3.02× USB 3.2 Gen1 |
| Serial interfaces | 1× RS-232 COM (RJ-45)1× RS-232/422/485 COM (DB-9, RI/5V/12V) |
| Audio | 1× Audio (line-out)ALC892AMP 2W + 2W (internal speaker)digital microphoneRealtek ALC888S |
| Camera | 2-megapixel with low light function, digital microphone |
| Other I/O | 1 x Power Button · 1 x Reset button · 1 x AT/ATX switch · 1 x 9-30V DC lockable power jack |
| Wireless | BluetoothWi-Fi |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–30 V DC |
| Power consumption | 27.6 W |
| Mounting | Desktop / StandPanel MountVESA MountWall Mount |
|---|---|
| Dimensions | 181 × 42 × 262 mm |
| Cutout dimensions | 236 × 150 mm |
| Weight | 1.06 kg |
| Chassis material | Plastic |
| Chassis color | Black(Black C) |
| IP rating | Front IP64 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AFL3-W10A-BT-J1/PC/4G-R14 |
