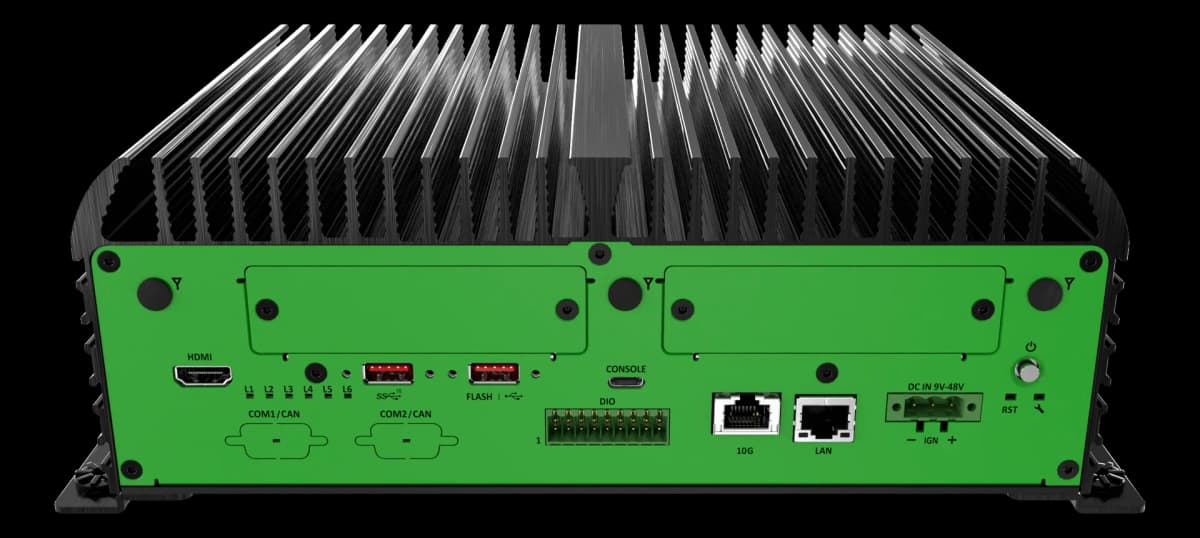

JCO-6000-ORN-A_2EBIO is the Premio edge AI computer built on the NVIDIA Jetson AGX Orin module. It can be mounted on a wall, on board a train or on a vehicle, and runs inference where the data is generated, not in a remote cabinet.
AI computing
The declared performance depends on the module: 275 TOPS with a 12-core Arm Cortex-A78AE CPU and 64 GB (60 W), 200 TOPS with an 8-core CPU and 32 GB (40 W). The memory is LPDDR5 at 3200 MHz on the module, and the GPU is NVIDIA Ampere with Tensor cores. The operating system is Linux.
Power and environment
The input is direct current from 9 to 110 V, with adjustable ignition management, PC/CAR mode and remote power-on. Cooling is fanless; the operating temperature ranges from -40 to 85 °C, the same as the storage temperature. The enclosure is made of extruded aluminium, measures 270 × 95 × 190 mm and weighs 7 kg.
Interfaces
Video: 1× HDMI up to 3840×2160 at 60 Hz.
USB: 4× USB 3.0 Type-A, 1× USB Type-C for the console, 1× USB 2.0 for operating system flashing.
Network: 4 PoE ports.
Serial: 2× RS-232/422/485, switchable via MCU.
Digital I/O and bus: 8 isolated inputs and 8 isolated outputs, 2× CAN 2.0 B.
Wireless: Wi-Fi and Bluetooth on M.2 E-Key 2230, 4G/LTE and 5G on M.2 B-Key 3042/3052, with 2× microSIM and 6 antenna holes.
Storage and expansion
The standard configuration includes 64 GB eMMC 5.1, microSD and a 128 GB M.2 M-Key NVMe (PCIe x4); on order, the M.2 can be increased to 256 GB, 512 GB, 1 TB or 2 TB. A second M.2 M-Key 2242/2260 (PCIe x4) accepts AI modules or another NVMe.
Certifications
Listed in the catalogue: EN 50155 and EN 50121 for rail, E-Mark for vehicles, plus CE, FCC, UL and UKCA.
