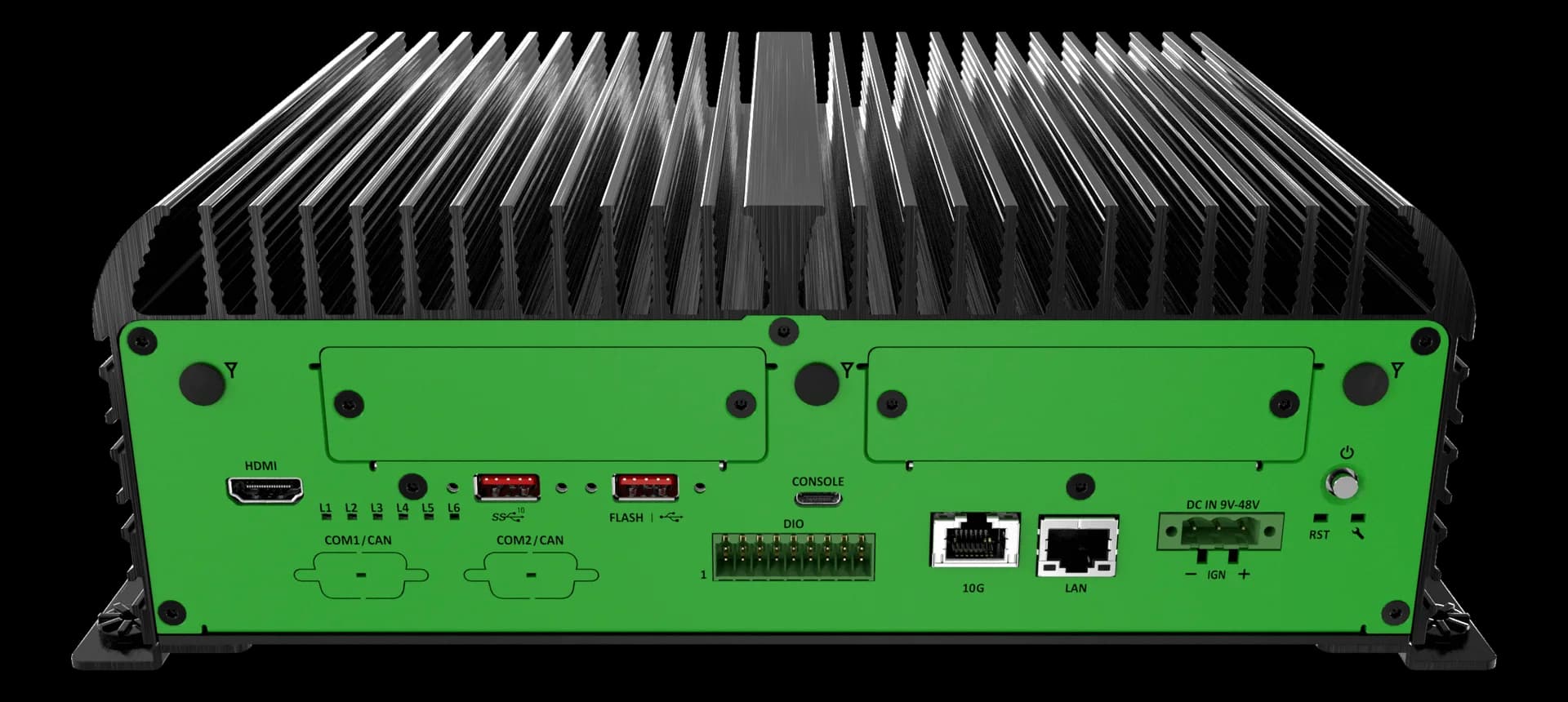

JCO-6000-ORN-A_2EBIOFanless edge AI computer with Jetson AGX Orin
- Manufacturer
JCO-6000-ORN-A_2EBIO is a wall mount Premio edge AI computer, conceived for rail and industrial plants where computing has to sit close to the sensors.
The NVIDIA Ampere GPU of the AGX Orin module counts 1792 CUDA cores and 56 Tensor Cores, with LPDDR5 memory and TPM 2.0 on board. The declared certifications include EN 50121 and EN 50155, alongside UL and UKCA.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- AI performance: 275 TOPS (12-core/64GB, 60W); 200 TOPS (8-core/32GB, 40W)
- CPU class: ARM Cortex-A78AE
- Memory: AGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM
- RAM type: LPDDR5
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| AI performance | 275 TOPS (12-core/64GB, 60W); 200 TOPS (8-core/32GB, 40W) |
| CPU class | ARM Cortex-A78AE |
| Processor | 64 GB, 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU (60W/275 TOPS)(optional) |
| Graphics | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| Tensor cores | 56 |
| CUDA cores | 1792 |
| Memory | AGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 M-Key1× eMMC 5.1 64 GB, 1× M.2 M-Key 2242/2260/2280 (NVMe, PCIe x4, 128GB di default), 1× microSD, 2× microSIM1× M.2 M-Key 2280 (PCIe x4, NVMe, default 128 GB)2TB M.2 (opzione ordering)(optional)256GB M.2 (opzione ordering)(optional)512GB M.2 (opzione ordering)(optional)128GB M.2 (opzione ordering)(optional)1TB M.2 (opzione ordering)(optional) |
|---|
| Video outputs | HDMI Connector1× HDMI, 3840×2160 @60Hz(3840x2160) |
|---|
| Ethernet ports | 1× RJ45 (10/100 Mbps)4× LAN GbE (M12)8× GbE (RJ45 o M12)Marvell 88e1512 (right) 24V: PoE Power Budget Supports Up to 120W2× RJ45 |
|---|---|
| USB ports | 1× USB Type-C (console)1× USB 2.0 (OS flash)4× USB 3.0 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 (switch via MCU)2× COM |
| Audio | value * 0.1 seconds , then Buzzer turn off. |
| Digital I/O | 8× DI / 8× DO (isolati)(out)8× DI / 8× DO (isolati)(in) |
| CAN bus | 2× CAN 2.0 B |
| Other I/O | 6x Antenna Holes, 1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch, 1x AT/ATX Switch, 1x Remote Power On/Off, 1x PC/CAR Mode Switch |
| PoE | 4× PoE |
| Wireless | 4G/LTE5GWi-FiBluetooth |
|---|
| Expansion | 1× M.2 E-Key 2230 (PCIe x1, USB 2.0, Wi-Fi/Bluetooth)1× M.2 B-Key 3042/3052 (USB 3.2 Gen 2, moduli 4G/5G)1× M.2 M-Key 2242/2260 (PCIe x4, moduli AI/NVMe)(AI Module) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–110 V |
| Ignition management | Adjustable Power Ignition Management |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 270 × 95 × 190 mm |
| Weight | 7 kg |
| Chassis material | alluminio, metallo(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -40–85 °C |
| Certified market sectors | AutomotiveRailway |
|---|---|
| Certifications | CEUKCAULFCCE-MarkEN 50155EN 50121 |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
