RKP2417F2U 17.3" rack LCD console with local KVM
- Manufacturer
- Configurations
- 56 available configurations

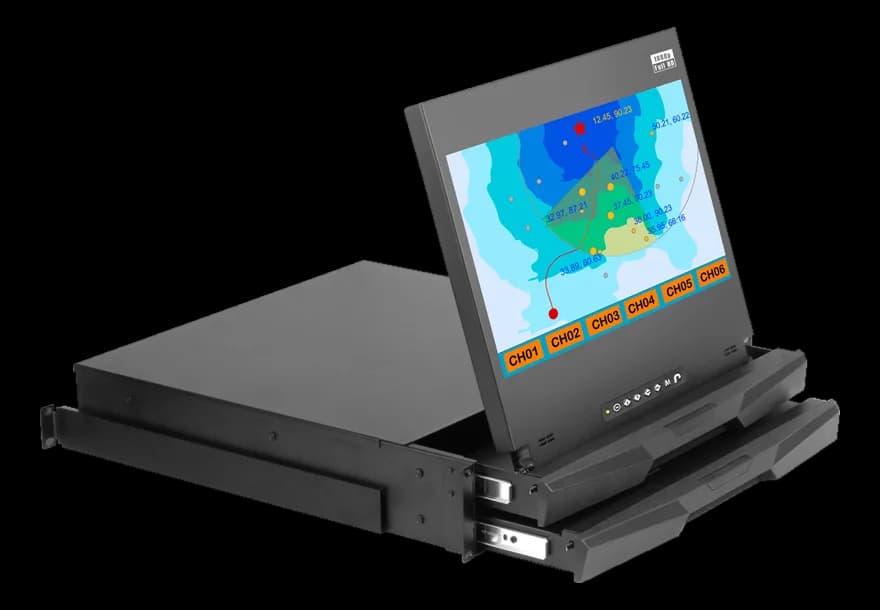

RKP2417F is an LCD console for 19″ rack cabinets in 2U format, with a 17.3" display and an integrated local KVM for direct management of the servers and equipment installed in the rack.
The panel uses LED backlighting with 300 cd/m² brightness and an anti-glare surface treatment with hard-coating, to reduce reflections. The operating window covers 0~55 °C and an altitude up to 4876.8 m, with a stated MTBF of 15000 h.
At a glance
- Display size: 17.3 ″
- Resolution: 1920x1080 FHD
- Video inputs: DVI
- Brightness: Up to 399 standard cd/m²
- Contrast ratio: 600 : 1
Technical specifications
| Display size | 17.3 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Video inputs | DVIVGAComposite BNCDisplayPort(1920x1080)HDMI(HDMI 1.4 / HDCP 1.4 3G / HD / SD-SDI · optional · 1.4)SDI(BNC x 1 / Active through, equalized & re · optional)HDMI(HDMI 1.4, HDCP 1.4 · 1.4)DisplayPort(1.0)DisplayPort(optional · 1.0) |
| Touchscreen | Resistive(Resistive 1-pt · alternative)PCAP(Projected Capacitive 10-pt · alternative) |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 600 : 11000:1(typ) |
| Aspect ratio | 16:9 |
| Viewing angle | 85/85/85/85 |
| Pixel pitch | 0.1989 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 381.888 × 214.812 mm |
| Backlight type | LED |
| Response time | 5.5 ms |
| Surface hardness | 3H |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Touch points | Resistive 1-ptProjected Capacitive 10-pt(pcap) |
| KVM / console type | Local KVM |
|---|---|
| Keyboard & pointing device | USB interface2x USB type A(USB-A)104-key USB keyboard with either touchpad or trackball(touchpad/trackball) |
| Audio | 3.5mm stereo jack2ch Linear PCM30kΩ / 750mV(input)30kΩ / 2.8V(output)Dual stereo 2W x 2(speaker)SMPTE 299M / 272M-C(SDI) |
| AC/DC input | ACAC+DC |
|---|---|
| Power consumption | 2 W(single console · saving)1 W(single console · off)1 W(console / kvm · off)45 W(with kvm)45 W(console w/ kvm)14 W(single console)2 W(console · saving)34 W(with kvm · saving)34 W(console w/ kvm · saving) |
| Rack units | 2 U |
|---|---|
| Dimensions | 442 × 88 × 480 mm |
| Weight | 21.1 kg27 kg(gross) |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | REACHWEEE (2012/19/UE)FCCUKCACERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | KVM / console type | Number of ports |
|---|---|---|
| RKP2417F-1201b_EU | Local KVM | — |
| RKP2417F-1201e_EU | Local KVM | — |
| RKP2417F-1602b_EU | Local KVM | 16 |
| RKP2417F-1602e_EU | Local KVM | 16 |
| RKP2417F-801DP_EU | — | — |
| RKP2417F-801K_EU | — | — |
| RKP2417F-802b_EU | Local KVM | 8 |
| RKP2417F-802e_EU | Local KVM | 8 |
| RKP2417F-IP1602b_EU | Local KVM | 16 |
| RKP2417F-IP1602e_EU | Local KVM | 16 |
| RKP2417F-IP802b_EU | Local KVM | 8 |
| RKP2417F-IP802e_EU | Local KVM | 8 |
