KVM Switches for 19″ Rack Cabinets
DF11717.3" rack LCD console with local KVM and anti-glare LED display
- Manufacturer
- Configurations
- 57 available configurations

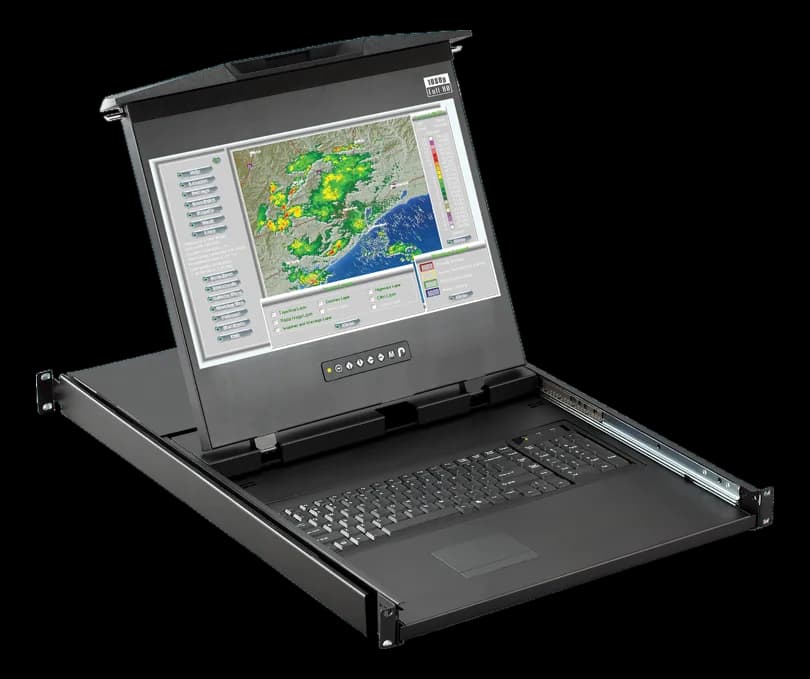

DF117 is an LCD console for 19″ rack cabinets and standalone applications, with a 17.3" LED-backlit display and a local KVM function for direct management of the servers installed in the cabinet.
The panel has an anti-glare (AG) surface treatment with hard-coating and 3H surface hardness, 300 cd/m² brightness and a 0.1989 mm pixel pitch. Power is AC with a 100~240 V input and an operating temperature range of 0~55 °C.
The DF117 family is available in local KVM or Cat6/remote versions and in 8, 16 or 32 port configurations, as in part number DF117-1201e_EU.
At a glance
- Display size: 17.3 ″
- Resolution: 1920x1080 FHD
- Video inputs: VGA
- Brightness: Up to 399 standard cd/m²
- Keyboard & pointing device: USB interface
Technical specifications
| Display size | 17.3 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Video inputs | VGADVIComposite BNCSDIDisplayPort(1920x1080)DisplayPort(optional · 1.0)DisplayPort(1.0) |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 1000 : 1(typ) |
| Viewing angle | 85/85/85/85 |
| Pixel pitch | 0.1989 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 381.888 × 214.812 mm |
| Backlight type | LED |
| Surface hardness | 3H |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Keyboard & pointing device | USB interface104-key USB keyboard with touchpad |
|---|---|
| Audio | 2ch Linear PCM3.5mm stereo jackSMPTE 299M / 272M-C(SDI)Dual stereo 2W x 2(speaker)30kΩ / 2.8V(output)30kΩ / 750mV(input) |
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V9–18 V(optional)66–160 V(optional)180–425 V(optional)36–75 V(optional)18–36 V(optional) |
| Power consumption | 2 W(console · saving)14 W(single console)45 W(console w/ kvm)45 W(with kvm)1 W(console / kvm · off)1 W(single console · off)34 W(console w/ kvm · saving)2 W(single console · saving)34 W(with kvm · saving) |
| Weight | 12.9 kg18.9 kg(gross) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | CEFCCUKCAREACHWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | KVM / console type | Number of ports |
|---|---|---|
| DF117-1201b_EU | — | — |
| DF117-1201e_EU | — | — |
| DF117-1602b_EU | — | — |
| DF117-1602e_EU | — | — |
| DF117-801DPB_EU | — | — |
| DF117-801DPE_EU | — | — |
| DF117-801KB_EU | — | — |
| DF117-801KE_EU | — | — |
| DF117-802b_EU | Local KVM | 8 |
| DF117-802e_EU | Local KVM | 8 |
| DF117-IP1602b_EU | — | — |
| DF117-IP1602e_EU | — | — |
