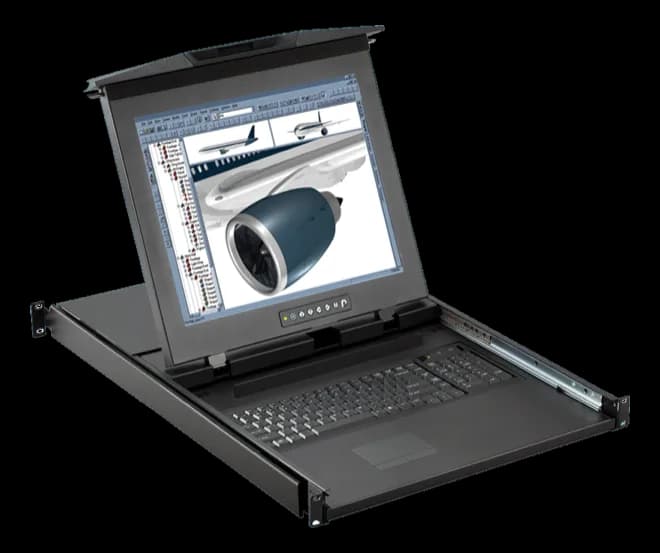

D11717″ rack LCD console with local KVM and LED display
- Manufacturer
- Configurations
- 31 available configurations
D117 is a rack LCD console for 19″ cabinets and standalone applications, with a 17″ display and local KVM for direct management of the equipment installed in the rack.
The operating temperature range is 0~55 °C and the MTBF value is 30000 h. The display surface has a hard-coating treatment with 3H hardness.
The family comprises 56 configurations; part number D117-1201e_EU is one example of the available versions.
At a glance
- Display size: 17 ″
- Resolution: 1280x1024 SXGA
- Video inputs: Composite BNC
- Brightness: Up to 399 standard cd/m²
- KVM / console type: Local KVM
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Video inputs | Composite BNCVGASDIS-VideoHDMIDVIDisplayPort(optional · 1.0) |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 1000 : 1(typ) |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.264 mm |
| Display colors | 16.7 M |
| Active area | 337.92 × 270.33 mm |
| Backlight type | LED |
| Response time | 5 ms |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG)Hard-coating |
| KVM / console type | Local KVM |
|---|---|
| Keyboard & pointing device | 104-key USB keyboard with touchpad |
| Audio | Dual Stereo Speaker2ch Linear PCM ( 32 / 44.1 / 48 KHz )3.5mm stereo jack2 x 2W(speaker)30kΩ / 2.8V(output)SMPTE 299M / 272M-C(SDI)30kΩ / 750mV(input) |
| AC/DC input | AC |
|---|---|
| Power input | 18–36 V(optional)9–18 V(optional)66–160 V(optional)180–425 V(optional)36–75 V(optional) |
| Power consumption | 1 W(single console · off)34 W(console w/ kvm · saving)2 W(console · saving)2 W(single console · saving)34 W(with kvm · saving)1 W(console / kvm · off)55 W(console w/ kvm)22 W(console) |
| Weight | 13.6 kg12.6 kg19.8 kg(gross)18.4 kg(gross) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | CEFCCUKCAREACHWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| D117-1201e_EU |
| D117-1602e_EU |
| D117-801DPB_EU |
| D117-801DPE_EU |
| D117-801KB_EU |
| D117-801KE_EU |
| D117-802e_EU |
| D117-IP1602e_EU |
| D117-IP802e_EU |
| D117-MU1602e_EU |
| D117-MU1603e_EU |
| D117-MU1604e_EU |
