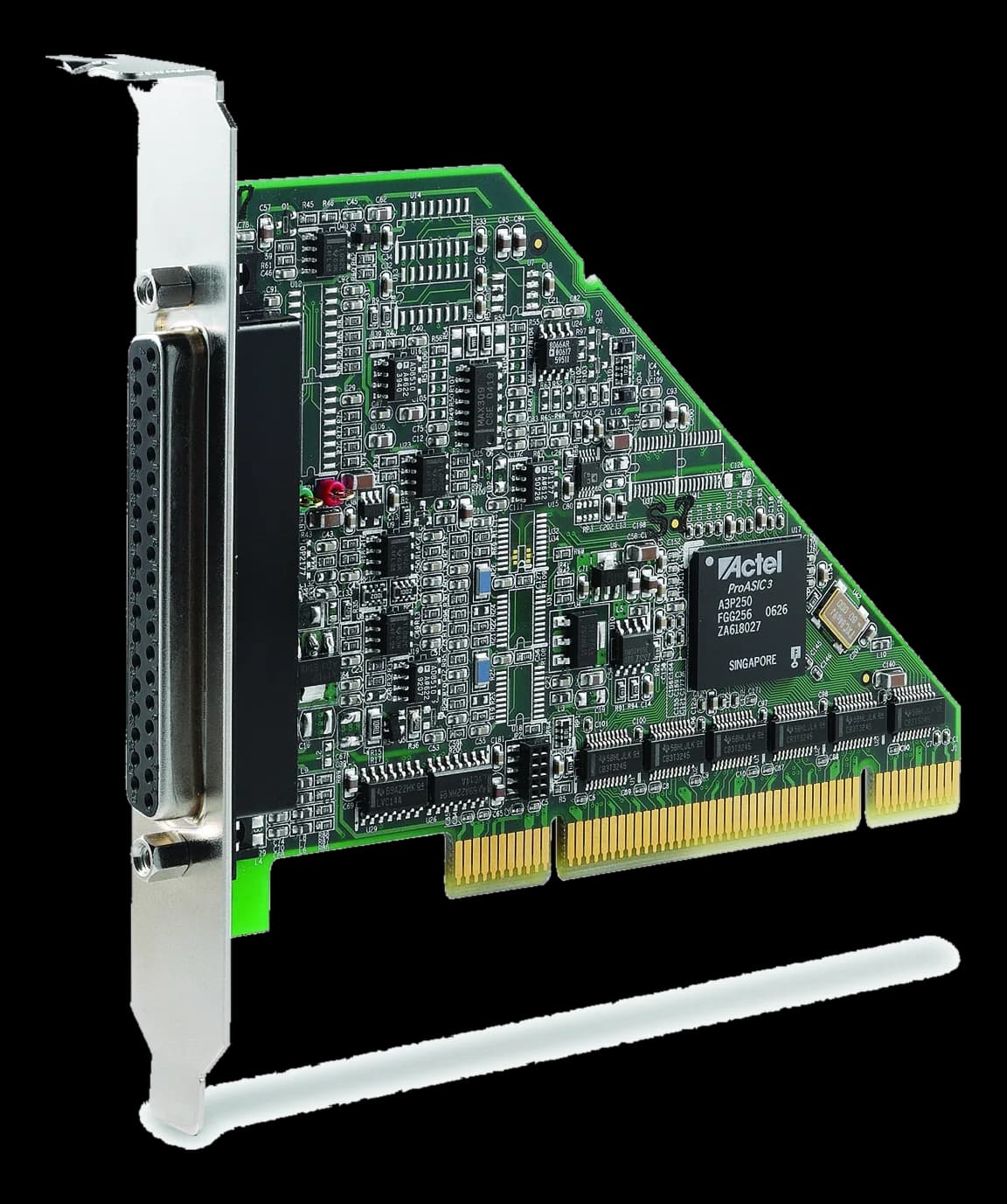

Scheda PCI-9221 con chip Actel ProASIC3, connettore D-sub femmina e bordo dorato per slot PCI

PCI & PCIe I/O Boards

PCI-922116-bit PCI DAQ board with encoder reading

Manufacturer

PCI-9221 is a multifunction data acquisition board for the PCI bus, suited to test benches and automatic cells where analog measurement lives alongside the reading of an axis position.

Sampling reaches 250 kSps with DC input coupling. In differential encoder mode the board calls for an additional 24 V supply on the dedicated pins of connector CON1, a condition to allow for in the field wiring.

At a glance

  • Channels: 16 channel
  • ADC resolution: 16 Bit bit
  • Sampling rate: 250 kS/s (1 channel; 100 kS/s in scanning) kSps
  • Analog input range: ±5 V
  • DAC resolution: 16-bit bit

Technical specifications

Digital I/O8 DI/4 DO (5 V TTL level)(out)8 DI/4 DO (5 V TTL level)(in)
ConnectorsD-Sub

Channels16 channel
Counter2× timer/counter 32-bit (base clock 40 MHz; external clock up to 10 MHz)
ADC resolution16 Bit bit
Sampling rate250 kS/s (1 channel; 100 kS/s in scanning) kSps
Analog input range±5 V
DAC resolution16-bit bit
Analog output range±5 V
Input impedance>1 GΩ ohm
Input couplingDC
Trigger modesSoftwareExternal digital trigger
Acquisition specificationsGain per range: ±5 V = 1; ±1 V = 5; ±0,5 V = 10; ±0,2 V = 25± 5 V = 1800 kHz; ± 1 V = 1800 kHz; ± 0.5 V = 1600 kHz; ± 0.2 V = 1400 kHz(logic levels)Input impedance: 1000 GΩ/150 pF with card powered on; 1 kΩ with card powered off or in overload(misc)Offset: ±2,6 mV tipico pre-calibrazione; ±0,5 mV dopo calibrazione(accuracy)
Isolation & signalAn extra 24 V power (apply to pin 1 and 2 on CON1 connector) is required in differential encoder mode
I/O protectionOvervoltage(power on+continuous · ±10 V)Overvoltage(power off+continuous · ±10 V)

Board functionAnalog and digital I/O
Architecture standardPCI
Bus interface32-bit 3.3 V or 5 V PCI bus5 V and 3.3 V universal PCI busPolling, scatter-gather DMAProgrammed I/O; Bus-mastering DMA with scatter/gather

Power consumption1.2 W(+12 V)1.2 W(-12 V)5 W(+5 V)

Dimensions120 × 87 mm

Operating temperature0–45 °C
Storage temperature-20–80 °C

Operating systemsLinuxWindows

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
