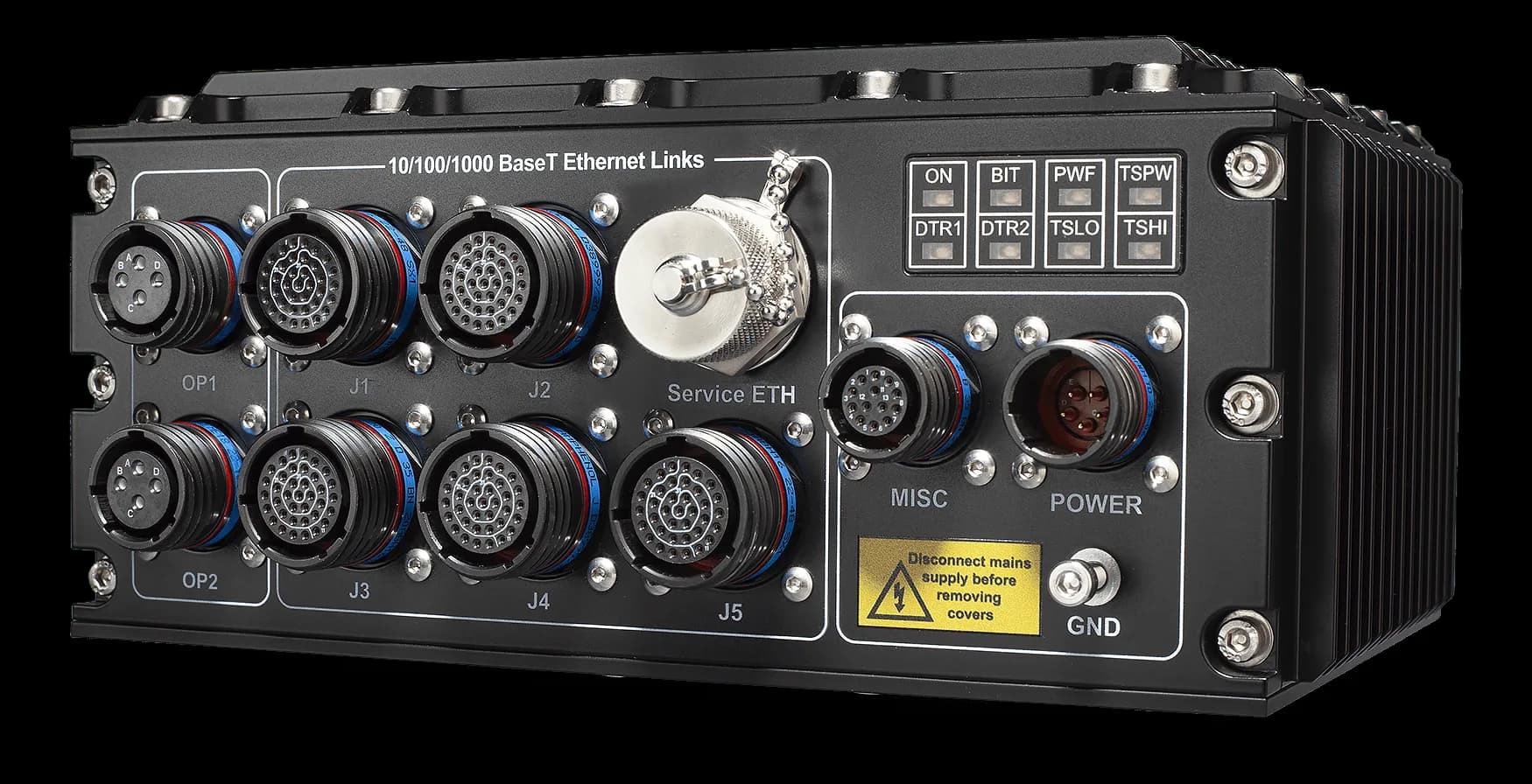

MIL-SSR / MIL-10SSRRugged military switch with firewall and VPN alongside IEEE 802.1X and MACsec
- Manufacturer
The reconfigurable MPSoC platform offers edge computing capability, with support for DDS and MQTT in a KVM virtual machine for user applications and integrated CAN 2.0 ports as an option.
Layer 2 includes IEEE 802.1Q VLANs up to 4K groups, LLDP, storm control and IGMP Snooping up to 1024 multicast filters; spanning tree covers STP, RSTP and MSTP. Management runs in-band from any switch port or out-of-band from the service port, with RS-232 serial console and IBIT diagnostics; synchronization follows IEEE 1588 PTPv2 as Transparent or Ordinary Clock.
At a glance
- FPGA / processing: Xilinx UltraScale+ MPSoC device: 4x 64bit CPU ARM-Cortex-A53, 2x 32bit CPU ARM-Cortex-R5F, 1x GPU ARM-Mali 400MHz, 1x 16nm UltraScale+ FPGA
- Serial interfaces: 1× RS-232 (connettore Miscellaneous)
- Management: Managed
- Copper port speed: 10/100/1000 Gigabit Mbps
- Redundancy protocols: RSTP
Technical specifications
| FPGA / processing | Xilinx UltraScale+ MPSoC device: 4x 64bit CPU ARM-Cortex-A53, 2x 32bit CPU ARM-Cortex-R5F, 1x GPU ARM-Mali 400MHz, 1x 16nm UltraScale+ FPGA |
|---|
| Serial interfaces | 1× RS-232 (connettore Miscellaneous) |
|---|---|
| Digital I/O | 2× GPIO o ingresso PPS/IRIG-B (connettore Miscellaneous) |
| Connectors | RJ45 |
| Device type | Secure router |
|---|---|
| Management | Managed |
| Copper port speed | 10/100/1000 Gigabit Mbps |
| Redundancy protocols | RSTPMSTPHSR/PRP(optional) |
| Power input | DC V |
|---|---|
| Power consumption | 20–35 W |
| Dimensions | 220 × 98 × 155 mm |
|---|---|
| Weight | 3 kg |
| Cooling | Fanless |
|---|---|
| MTBF | 200000 h(GB) |
| Certifications | MIL-STD-461MIL-STD-704MIL-STD-1275 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
