IMAGE Server19″ floor-standing server rack cabinet, static load capacity 1000 Kg

Manufacturer

IMAGE Server is the floor-standing cabinet for entry level server rooms, where equipment from different brands is installed and the usable depth must be sufficient for servers and cabling.

The steel structure consists of two welded frame assemblies and two covers, with a maximum static load capacity of 1000 Kg uniformly distributed. The front 19″ uprights are depth-adjustable, while the rear uprights, split into three zones, allow the installation of multi-brand servers. The top cover accepts a «zero U» ventilation unit with 2 or 4 fans.

Request information Full specifications ↓

Technical data

Features

Frame structure made of 2 frame assemblies and 2 covers (top / bottom)
Static load capacity up to 1000 Kg uniformly distributed
Adjustable front 19" rack uprights and split rear uprights, adjustable and compliant with IEC60297
Front 19" side reducers (800 mm wide rack) for vertical cable management, cable routing slots and provision for mounting cable management accessories
Top cover ventilated on the sides, equipped with two cable pass-through areas with closing plate or provision for a 2 or 4 fan ventilation unit
Ventilated metal front door (45%) or ventilated glass front door. Single or double ventilated rear door
Easily removable side panels with security lock from the outside
Open bottom for convenient cable pass-through, prepared for mounting closing panels
Height-adjustable feet
Optional wheels with 250 Kg load capacity
"Additional bay" versions prepared for coupling
Provision for mounting a complete grounding set in compliance with EN 60950

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey
RAL 9005Jet black

Technical specifications

Rack units	27 U43 U47 U

Dimensions	L 600 / 800 mm · P 1000 / 1200 mm
Chassis material	acciaio

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

IMAGE® Server PRIMARY
Versione standard – Porta anteriore a vetro, porta posteriore in metallo ventilata
IMAGE® Server PRIMARY
Versione standard – Porta anteriore e posteriore in metallo ventilata
IMAGE® Server
Versione configurata · Armadio con cuffia gestione cablaggio laterale
IMAGE® Server
Versione configurata · Montanti disassati
IMAGE® Server
Versione configurata – Porte con maniglia elettrica e lettore badge “multiclass”
IMAGE® Server
Versione configurata – Porte con maniglia elettrica con tastierino numerico
IMAGE® Server
Versione configurata · Porta frontale ventilata personalizzata
IMAGE® Server
Versione configurata · Armadio 27U con porta frontale ventilata

Documentation

DatasheetPDF · 233 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT384-776315	Image Server Primary vented glass front and vented rear doors	27 U	600 x 1000 mm (L x P)
VT384-776316	Image Server Primary vented glass front and vented rear doors	27 U	800 x 1000 mm (L x P)
VT384-776543	Image Server Primary vented metal front and rear doors	27 U	600 x 1000 mm (L x P)
VT384-776544	Image Server Primary vented metal front and rear doors	27 U	800 x 1000 mm (L x P)
VT384-776545	Description not available yet	27 U	600 x 1000 mm (L x P)
VT384-776546	Description not available yet	27 U	800 x 1000 mm (L x P)
VT384-776547	Image Primary additional unit vented metal front and rear doors	27 U	600 x 1000 mm (L x P)
VT384-776548	Image Primary additional unit vented metal front and rear doors	27 U	800 x 1000 mm (L x P)
VT384-775769	Image Server Primary vented glass front and vented rear doors	43 U	600 x 1000 mm (L x P)
VT384-775770	Image Server Primary vented glass front and vented rear doors	43 U	800 x 1000 mm (L x P)
VT386-775993	Image Server Primary cabinets vented metal front and rear doors	43 U	600 x 1000 mm (L x P)
VT386-775994	Image Server Primary cabinets vented metal front and rear doors	43 U	800 x 1000 mm (L x P)
VT386-776006	Image Primary additional unit vented glass front and vented rear doors	43 U	600 x 1000 mm (L x P)
VT386-776007	Image Primary additional unit vented glass front and vented rear doors	43 U	800 x 1000 mm (L x P)
VT386-776010	Image Primary additional unit vented metal front and rear doors	43 U	600 x 1000 mm (L x P)
VT386-776011	Image Primary additional unit vented metal front and rear doors	43 U	800 x 1000 mm (L x P)
VT386-777413	Image Server Primary cabinets vented metal front and rear doors	43 U	600 x 1200 mm (L x P)
VT386-777414	Image Server Primary cabinets vented metal front and rear doors	43 U	800 x 1200 mm (L x P)
VT384-775771	Image Server Primary vented glass front and vented rear doors	47 U	600 x 1000 mm (L x P)
VT384-775772	Image Server Primary vented glass front and vented rear doors	47 U	800 x 1000 mm (L x P)
VT386-775995	Image Server Primary cabinets vented metal front and rear doors	47 U	600 x 1000 mm (L x P)
VT386-775996	Image Server Primary cabinets vented metal front and rear doors	47 U	800 x 1000 mm (L x P)
VT386-776008	Image Primary additional unit vented glass front and vented rear doors	47 U	600 x 1000 mm (L x P)
VT386-776009	Image Primary additional unit vented glass front and vented rear doors	47 U	800 x 1000 mm (L x P)
VT386-776012	Image Primary additional unit vented metal front and rear doors	47 U	600 x 1000 mm (L x P)
VT386-776013	Image Primary additional unit vented metal front and rear doors	47 U	800 x 1000 mm (L x P)
VT386-777415	Image Server Primary vented metal front and rear doors	47 U	600 x 1200 mm (L x P)
VT386-777416	Image Server Primary vented metal front and rear doors	47 U	800 x 1200 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	V0612-931401	Swing handle – with numeric combination lock and master key
	VA333-301001	Swing handle – with electromechanical release – single-point latch
	VA333-301002	Swing handle – with electromechanical release – three-point latch
	VA385-775228	Unit identification strips from 1U to 48U
	VA385-776542	Reverse unit identification strip from 48U to 1U
	VA584-000571	Kit of 100 pcs. Quickfix 1U panel – RAL 7016 plastic
	VA802-562180	Power cable 1.5 m unterminated with Schuko plug
	VA802-563534	Blanking cam
	VA803-561559	Power cable 2 m unterminated with BS1363/A 13A plug
	VK385-775383	Kit of 2 19″ uprights, 27U
	VK385-775384	Kit of 2 19″ uprights, 36U
	VK385-775385	Kit of 2 19″ uprights, 43U
	VK385-775505	Plinth kit 100 mm 600×600
	VK385-775506	Plinth kit 100 mm 600×800/800×600
	VK385-775508	Plinth kit 100 mm 800×800
	VK385-775525	Kit of 2 19″ uprights + reduction, 27U (L 800 mm)
	VK385-775526	Kit of 2 19″ uprights + reduction, 36U (L 800 mm)
	VK385-775527	Kit of 2 19″ uprights + reduction, 43U (L 800 mm)
	VK385-775532	Fan unit, 2 fans (half)
	VK385-775535	Cable entry brush kit
	VK385-775545	Coupling kit
	VK385-775629	Partial solid cover kit
	VK385-775653	Kit of 4 leveling feet
	VK385-775709	Sliding keyboard shelf, 19″
	VK385-775713	Metal cable duct kit, 27U (180 mm W)
	VK385-775714	Metal cable duct kit, 36U (180 mm W)
	VK385-775715	Metal cable duct kit, 42U/43U (180 mm W)
	VK385-775723	Kit of metal double rings for cable support (10 pcs)
	VK385-775726	Grounding kit for equipment
	VK385-775727	Partial vented cover kit
	VK385-775730	Fixed shelf kit, 470 mm (cabinet depth 600/800)
	VK385-775732	Fixed shelf kit, 670 mm (cabinet depth 800)
	VK385-775755	Kit of 2 19″ uprights, 47U
	VK385-775757	Kit of 2 19″ uprights + reduction, 47U (L 800 mm)
	VK385-775828	Fan unit, 4 fans (full)
	VK385-775843	Thermostat and wiring kit
	VK385-775847	Plinth kit 100 mm 600×1000
	VK385-775848	Plinth kit 100 mm 800×1000
	VK385-775850	Metal cable duct kit, 47U (180 mm W)
	VK385-775863	Anti-tilt base for casters, 600 mm width
	VK385-775864	Anti-tilt base for casters, 800 mm width
	VK385-775895	Fan unit, 2 low-noise fans (half)
	VK385-775896	Fan unit, 4 low-noise fans (full)
	VK385-775905	1U 19″ solid panel kit, black (RAL 9005)
	VK385-775906	2U 19″ solid panel kit, black (RAL 9005)
	VK385-775907	3U 19″ solid panel kit, black (RAL 9005)
	VK385-775908	4U 19″ solid panel kit, black (RAL 9005)
	VK385-775909	5U 19″ solid panel kit, black (RAL 9005)
	VK385-775928	Vented plinth kit 100 mm 600×1000
	VK385-775931	Vented plinth kit 100 mm 800×1000
	VK385-775933	Vented plinth kit 100 mm 600×600
	VK385-775934	Vented plinth kit 100 mm 600×800/800×600
	VK385-775935	Vented plinth kit 100 mm 800×800
	VK385-775952	470 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-775953	670 mm support rail kit (800 mm deep cabinet), RAL 9005
	VK385-776190	M6 wing nuts kit, 50 pcs
	VK385-776191	M6×12 mm screws and washers kit, 50 pcs
	VK385-776192	370 mm fixed shelf kit (600/800 mm deep cabinet)
	VK385-776194	570 mm fixed shelf kit (800 mm deep cabinet)
	VK385-776196	1U panel kit with metal hooks
	VK385-776214	Anti-tilt base for leveling feet, 600 mm width
	VK385-776216	Anti-tilt base for leveling feet, 800 mm width
	VK385-776229	1U panel kit with plastic hooks
	VK385-776232	Plastic single ring kit for cable support (10 pcs)
	VK385-776252	570 mm support rail kit (800/1000 mm deep cabinet), RAL 9005
	VK385-776253	770 mm support rail kit (1000 mm deep cabinet), RAL 9005
	VK385-776268	370 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-776270	Kit of 4 leveling-foot adapters for servers (mounts feet and casters together)
	VK385-776414	1U panel with brush strip, black
	VK385-776415	2U cable support panel, black
	VK385-776416	19″ cable support bar, black
	VK385-776498	Plinth kit for leveling feet and casters 600×600
	VK385-776499	Plinth kit for leveling feet and casters 600×800
	VK385-776500	Plinth kit for leveling feet and casters 600×1000
	VK385-776501	Plinth kit for leveling feet and casters 800×600
	VK385-776502	Plinth kit for leveling feet and casters 800×800
	VK385-776503	Plinth kit for leveling feet and casters 800×1000
	VK385-776540	Kit: 2 casters with brake + 2 without, Server version, heavy duty + feet + adapters
	VK385-776541	Kit of 2 casters with brake + 2 without, Server version – 250 Kg static load
	VK593-599790	19″ cantilever shelf kit, 255 mm
	VK593-599791	19″ cantilever shelf kit, 400 mm
	VT385-775389	Standard glass door, 27U 600
	VT385-775390	Standard glass door, 36U 600
	VT385-775391	Standard glass door, 43U 600
	VT385-775392	Standard glass door, 27U 800
	VT385-775393	Standard glass door, 36U 800
	VT385-775394	Standard glass door, 43U 800
	VT385-775557	Metal door, 27U 600 mm
	VT385-775558	Metal door, 36U 600 mm
	VT385-775559	Metal door, 43U 600 mm

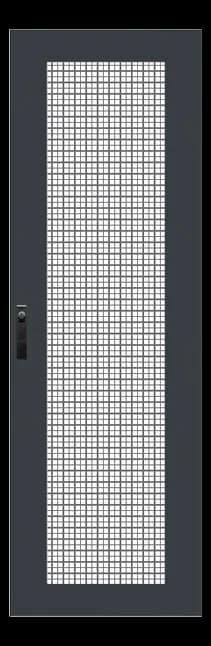

	VT385-775618	Fully vented metal door, 36U 800 mm
	VT385-775623	Metal door, 27U 800 mm
	VT385-775624	Metal door, 36U 800 mm
	VT385-775625	Metal door, 43U 800 mm
	VT385-775759	Standard glass door, 47U 600
	VT385-775760	Standard glass door, 47U 800
	VT385-775787	Vented glass door, 43U/600
	VT385-775791	Fully vented metal door, 43U 600 mm
	VT385-775793	Vented glass door, 47U/600
	VT385-775796	Fully vented metal door, 47U 600 mm
	VT385-775798	Vented glass door, 43U/800
	VT385-775801	Fully vented metal door, 43U 800 mm
	VT385-775803	Vented glass door 47U/800
	VT385-775806	Fully vented metal door 47U 800 mm
	VT385-775897	Metal door 47U 600 mm
	VT385-775898	Metal door 47U 800 mm
	VT385-775939	Fully vented metal door 27U 600 mm
	VT385-776094	Swing handle – manual key lock (2 keys)
	VT385-776187	Lifting eyebolt kit
	VT385-776207	Fully vented metal door 36U 600 mm
	VT385-776233	Swing handle – automatic key lock (2 keys)
	VT385-776297	Swing handle – without lock
	VT385-776329	Fully vented metal door 27U 800 mm
	VT385-776345	36U x 600 mm vented glass door
	VT385-776368	19″ x 425 mm sliding shelf kit, RAL 9005 (600/800 mm depth)
	VT385-776369	19″ x 625 mm sliding shelf kit, RAL 9005 (800 mm depth)

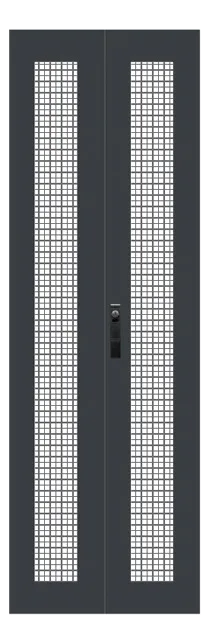

	VT385-776376	Fully vented double metal door 27U 600 mm
	VT385-776377	Fully vented double metal door 27U 800 mm
	VT385-776378	Fully vented double metal door 36U 600 mm
	VT385-776379	Fully vented double metal door 36U 800 mm
	VT385-776380	Fully vented double metal door 43U 600 mm
	VT385-776381	Fully vented double metal door 43U 800 mm
	VT385-776382	Fully vented double metal door 47U 600 mm
	VT385-776383	Fully vented double metal door 47U 800 mm
	VT385-776384	Double glass door 27U 600 mm
	VT385-776385	Double glass door 27U 800 mm
	VT385-776386	Double glass door 36U 600 mm
	VT385-776387	Double glass door 36U 800 mm
	VT385-776388	Double glass door 43U 600 mm
	VT385-776389	Double glass door 43U 800 mm
	VT385-776390	Double glass door 47U 600 mm
	VT385-776391	Double glass door 47U 800 mm
	VT385-776392	Double metal door 27U 600 mm
	VT385-776393	Double metal door 27U 800 mm
	VT385-776394	Double metal door 36U 600 mm
	VT385-776395	Double metal door 36U 800 mm
	VT385-776396	Double metal door 43U 600 mm
	VT385-776397	Double metal door 43U 800 mm
	VT385-776398	Double metal door 47U 600 mm
	VT385-776399	Double metal door 47U 800 mm
	VT385-776406	36U x 800 mm vented glass door
	VT385-776418	Cable duct kit top panel IMAGE SERVER L 600
	VT385-776430	Three-point closure metal door 27U 600 mm
	VT385-776431	Three-point closure metal door 36U 600 mm
	VT385-776432	Three-point closure metal door 43U 600 mm
	VT385-776433	Three-point closure metal door 47U 600 mm
	VT385-776434	Three-point closure metal door 27U 800 mm
	VT385-776435	Three-point closure metal door 36U 800 mm
	VT385-776436	Three-point closure metal door 43U 800 mm
	VT385-776437	Three-point closure metal door 47U 800 mm
	VT385-776446	Framed glass door, three-point closure, 27U 600 mm
	VT385-776447	Framed glass door, three-point closure, 36U 600 mm
	VT385-776448	Framed glass door, three-point closure, 43U 600 mm
	VT385-776449	Framed glass door, three-point closure, 47U 600 mm
	VT385-776450	Framed glass door, three-point closure, 27U 800 mm
	VT385-776451	Framed glass door, three-point closure, 36U 800 mm
	VT385-776452	Framed glass door, three-point closure, 43U 800 mm
	VT385-776453	Glass door with frame, three-point lock, 47U 800 mm
	VT385-776462	Fully vented metal door with three-point lock, 27U 600 mm
	VT385-776463	Fully vented metal door with three-point lock, 36U 600 mm
	VT385-776464	Fully vented metal door with three-point lock, 43U 600 mm
	VT385-776465	Fully vented metal door with three-point lock, 47U 600 mm
	VT385-776466	Fully vented metal door with three-point lock, 27U 800 mm
	VT385-776467	Fully vented metal door with three-point lock, 36U 800 mm
	VT385-776468	Fully vented metal door with three-point lock, 43U 800 mm
	VT385-776469	Fully vented metal door with three-point lock, 47U 800 mm
	VT388-827600	Glass door with frame, 27U/600
	VT388-827800	Glass door with frame, 27U/800
	VT388-836600	Glass door with frame, 36U/600
	VT388-836800	Glass door with frame, 36U/800
	VT388-843600	Glass door with frame, 43U/600
	VT388-843800	Glass door with frame, 43U/800
	VT388-847600	Glass door with frame, 47U/600
	VT388-847800	Glass door with frame, 47U/800
	VT390-784799	Pull-out drawer kit, 19″ 2U, RAL 9005
	VT390-787528	Support rail kit, 570 mm (800/1000 mm deep cabinet), galvanized
	VT390-787537	Support rail kit, 670 mm (800 mm deep cabinet), galvanized
	VT390-787644	DIN rail enclosure panel kit, 19″, RAL 9005
	VT390-787647	DIN rail enclosure panel kit – 180 mm depth – RAL 9005
	VT390-787965	Support rail kit, 370 mm (600/800 mm deep cabinet), galvanized
	VT390-787966	Support rail kit, 470 mm (600/800 mm deep cabinet), galvanized
	VT390-787967	Support rail kit, 770 mm (1000 mm deep cabinet), galvanized
	VT390-787968	Support bracket kit, 42U, for vertical PDU, mounting hardware included
	VT390-787969	Support bracket kit, 47U, for vertical PDU, mounting hardware included
	VT390-788068	DIN rail enclosure panel kit with hinged Lexan panel – 180 mm depth – RAL 9005
	VT390-788074	Pull-out drawer kit, 19″ 2U, RAL 9005, top-enclosed – recessed handle
	VT390-788074_7035	Pullout drawer kit 19″ 2U RAL 7035, closed top, recessed handle
	VT390-788091_7035	Pull-out drawer kit, 19″ 3U, RAL 7035, top-enclosed – recessed handle
	VT390-788091_9005	Pull-out drawer kit, 19″ 3U, RAL 9005, top-enclosed – recessed handle
	VT555-501531	Vented panel kit, 1U 19″, black (RAL 9005)
	VT555-501532	Vented panel kit, 2U 19″, black (RAL 9005)
	VT584-000133	670 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000134	770 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000151	625 mm pull-out shelf kit (1000 mm depth)
	VT584-000152	825 mm pull-out shelf kit (1200 mm depth)
	VT584-000252	Cantilever cable management support, horizontal
	VT584-000366	Adjustable-depth fixed shelf kit (550 mm to 900 mm)
	VT584-000537	2U 19″ equipment security enclosure, 600 mm
	VT593-599469	Blue cable entry slot trim kit, 125 mm (10 pcs)
	VT593-599470	Cable support kit, 125 mm (10 pcs)
	VT802-510011	Catalog item in the APW range for 19″ rack cabinets
	VT802-510014	APW reference for fitting out 19″ rack cabinets
	VT802-510026	Item in the APW range dedicated to 19″ rack cabinets
	VT802-510027	APW component for fitting out the 19″ rack
	VT802-552929	Ground bar, 13U, for cabinets
	VT802-552930	Ground bar, 27U, for cabinets
	VT802-552931	Ground bar, 39U, for cabinets
	VT802-553081	A4 document holder
	VT802-556088	Distribution bar kit for cabinets
