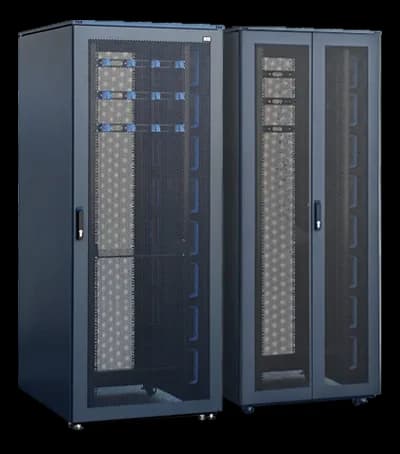

VERAK S-MAX19″ floor-standing rack cabinet for high-density servers, load capacity 1500 Kg

Manufacturer

VERAK S-MAX is the floor-standing cabinet for data centers and high-density server rooms, where the load per rack and heat dissipation matter as much as usable space.

The structure consists of two end frames and four vertical uprights, providing a static load capacity of up to 1500 Kg uniformly distributed. The front and rear 19″ uprights are adjustable and compliant with IEC 60297. The ventilated doors, with tilting handle and three-point locking, are reversible; the side panels are removable with a security lock.

The "additional bay" versions are designed for side-by-side coupling in a row.

Request information Full specifications ↓

Technical data

Features

Frame structure consisting of 2 end frames and 4 vertical uprights
Static load capacity of up to 1500 Kg uniformly distributed
19″ rack uprights, adjustable at the front and sectional at the rear, compliant with IEC60297 standards
Front 19″ side reducers (800 mm wide rack) for vertical cable management, cable routing slots and pre-arrangement for mounting cable management accessories
Ventilated top cover with 5/7 cable routing areas, 2/3 on each side depending on cabinet depth and 1 at the rear
Ventilated (81%) metal front door or reversible ventilated glass front door with temperature display and probe, tilting handle, automatic lock and three-point locking
Ventilated double rear door with tilting handle, automatic lock and three-point locking
180° door opening
Easily removable side panels with security lock from inside the cabinet
Open bottom for convenient cable routing and pre-arranged for mounting closing panels
Height-adjustable feet
Optional wheels with 250 Kg load capacity
"Additional bay" versions designed for coupling
Supplied with a complete grounding cable set compliant with EN 60950 standard

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey
RAL 9005Jet black

Technical specifications

Rack units	27 U42 U47 U

Dimensions	L 600 / 800 mm · P 978 / 1178 mm
Chassis material	acciaio

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

VERAK® S-MAX PRIMARY

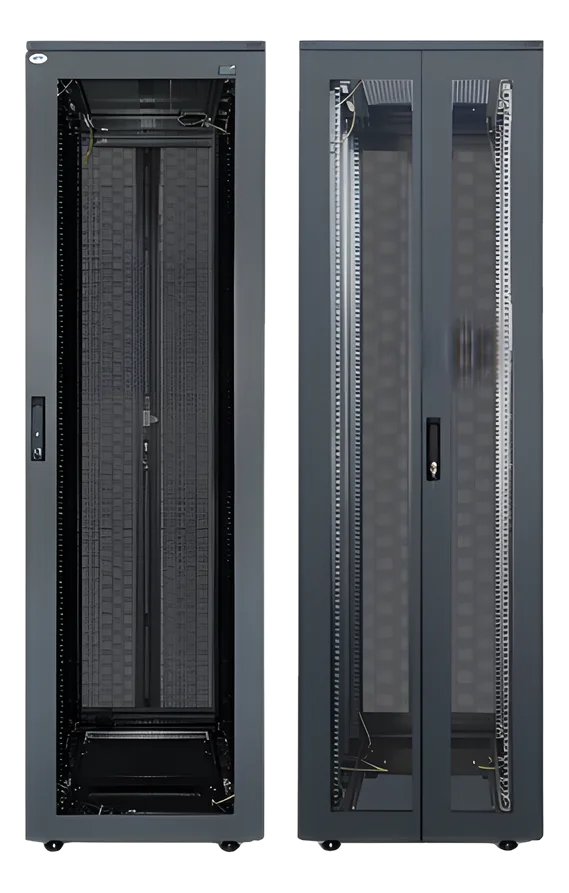

Versione standard – 600 mm · Porta ventilata in metallo
VERAK® S-MAX PRIMARY

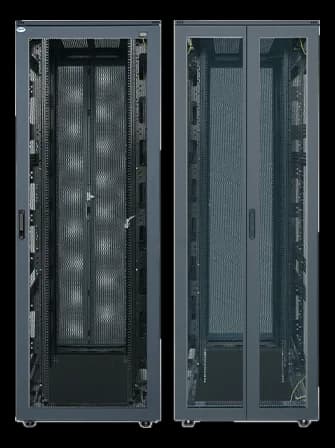

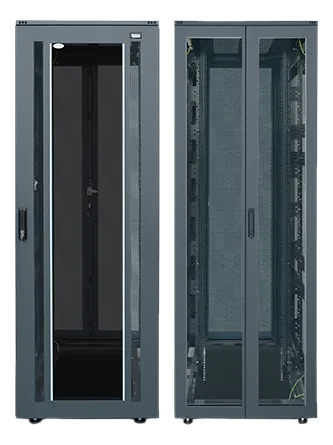

Versione standard – 800 mm · Porta ventilata in metallo
VERAK® S-MAX PRIMARY

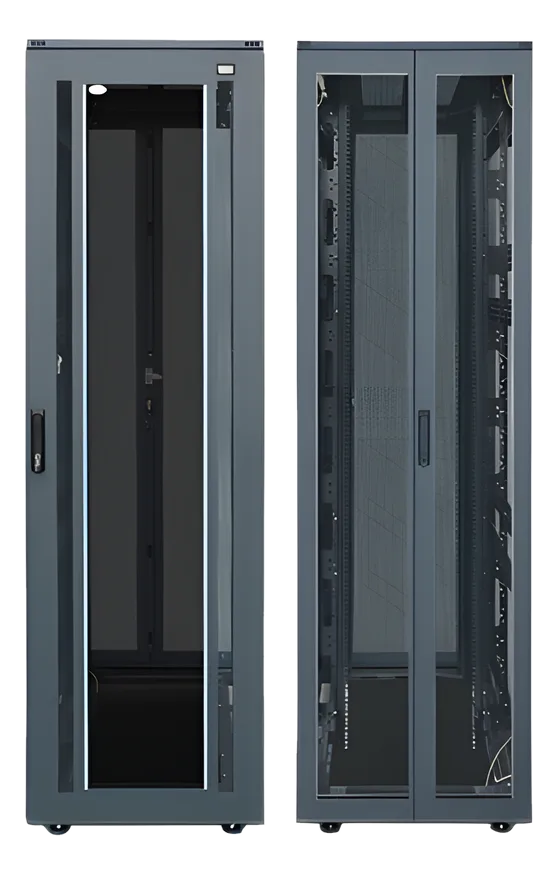

Versione standard – 600 mm · Porta ventilata in vetro
VERAK® S-MAX PRIMARY
Versione standard – 800 mm · Porta ventilata in vetro
VERAK® S-MAX SHORT SIZE PRIMARY
Versione standard · Porta ventilata in vetro
VERAK® S-MAX

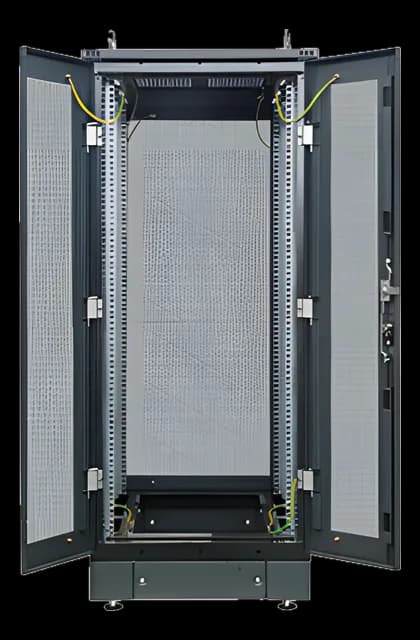

Versione configurata · Montanti zincati
VERAK® S-MAX

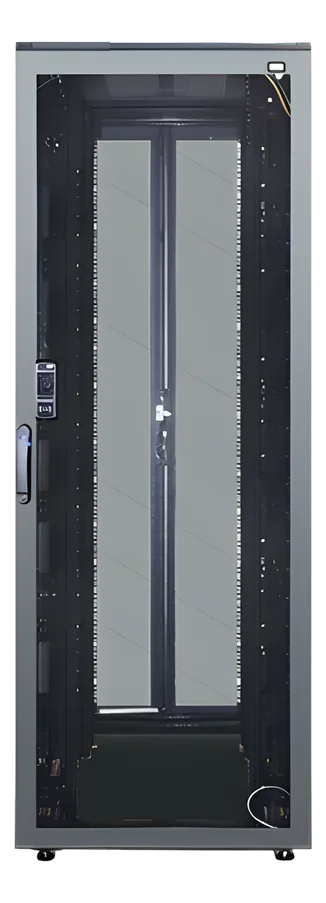

Versione configurata · Controllo accessi integrato
VERAK® S-MAX

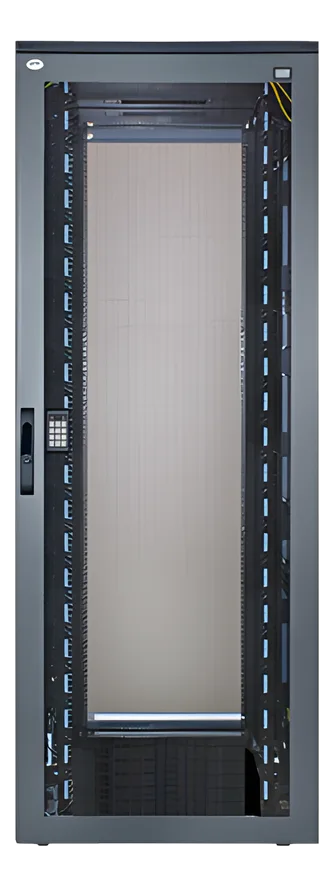

Versione configurata · Montanti 21″
VERAK® S-MAX

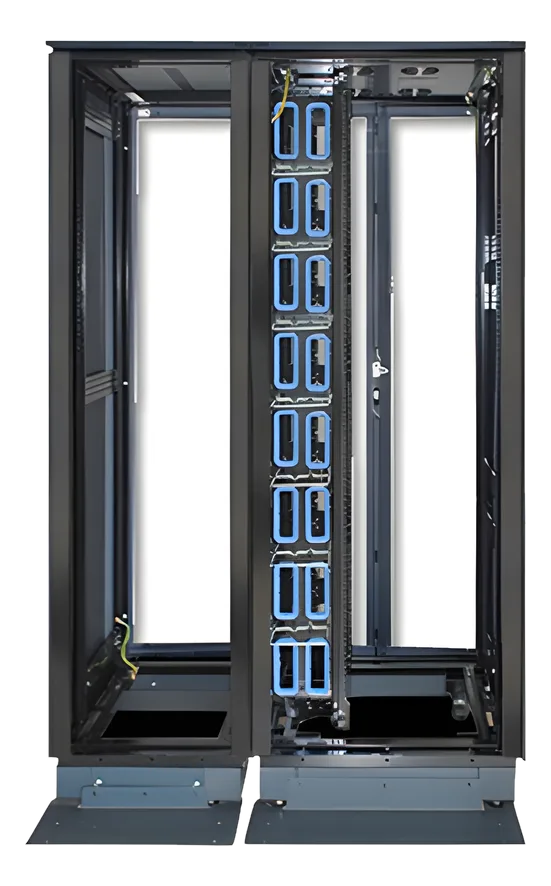

Versione configurata · Kit antiribaltamento
VERAK® S-MAX

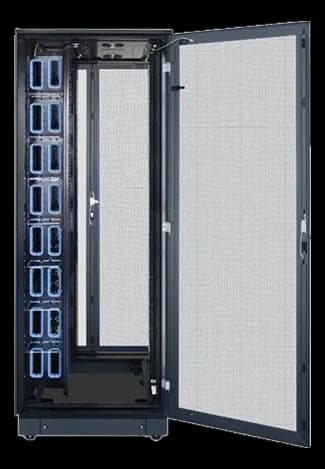

Versione configurata · Montanti disassati
VERAK® S-MAX

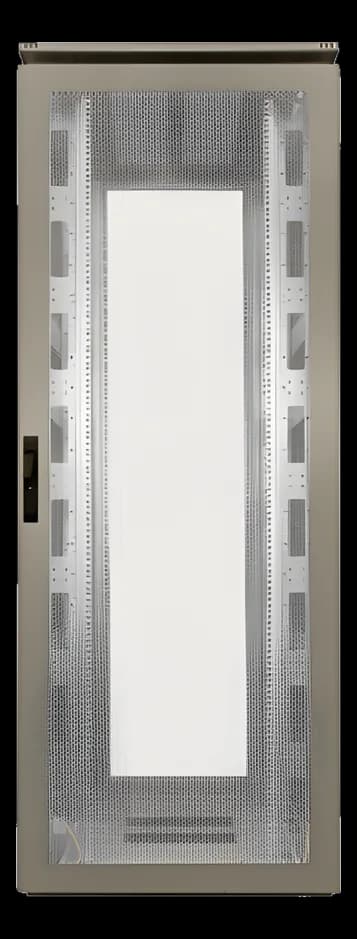

Versione configurata · RAL 7032
VERAK® S-MAX

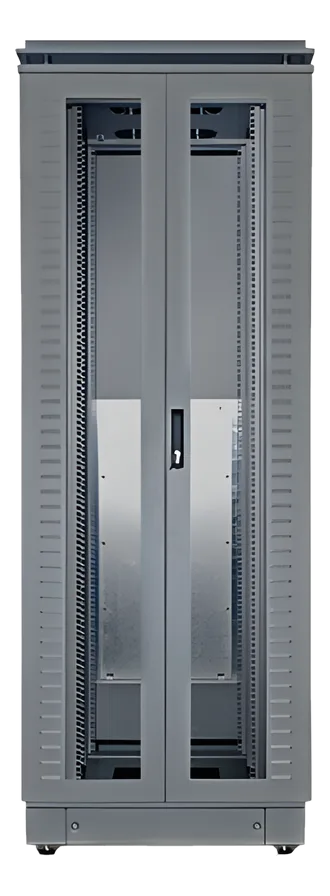

Versione configurata · Protezione IP42

Documentation

DatasheetPDF · 418 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT555-500257	Short-size vented glass front door	12 U	600 x 1000 mm (L x P)
VT555-500258	Short-size vented glass front door	16 U	600 x 1000 mm (L x P)
VT584-000001	Primary cabinet with vented metal front doors	27 U	600 x 1000 mm (L x P)
VT584-000006	Primary cabinet with vented metal front doors	27 U	800 x 1000 mm (L x P)
VT584-000191	Primary cabinet with vented glass front doors	27 U	600 x 1000 mm (L x P)
VT584-000196	Primary cabinet with vented glass front doors	27 U	800 x 1000 mm (L x P)
VT584-000258	Primary cabinet with vented metal front doors	27 U	600 x 800 mm (L x P)
VT584-000264	Primary cabinet with vented metal front doors	27 U	800 x 800 mm (L x P)
VT584-000590	Primary cabinet with vented glass front doors	27 U	600 x 800 mm (L x P)
VT584-000596	Primary cabinet with vented glass front doors	27 U	800 x 800 mm (L x P)
VT584-000002	Primary cabinet with vented metal front doors	42 U	600 x 1000 mm (L x P)
VT584-000004	Primary cabinet with vented metal front doors	42 U	600 x 1200 mm (L x P)
VT584-000007	Primary cabinet with vented metal front doors	42 U	800 x 1000 mm (L x P)
VT584-000009	Primary cabinet with vented metal front doors	42 U	800 x 1200 mm (L x P)
VT584-000192	Primary cabinet with vented glass front doors	42 U	600 x 1000 mm (L x P)
VT584-000194	Primary cabinet with vented glass front doors	42 U	600 x 1200 mm (L x P)
VT584-000197	Primary cabinet with vented glass front doors	42 U	800 x 1000 mm (L x P)
VT584-000199	Primary cabinet with vented glass front doors	42 U	800 x 1200 mm (L x P)
VT584-000265	Primary cabinet with vented metal front doors	42 U	800 x 800 mm (L x P)
VT584-000591	Primary cabinet with vented glass front doors	42 U	600 x 800 mm (L x P)
VT584-000597	Primary cabinet with vented glass front doors	42 U	800 x 800 mm (L x P)
VT584-000003	Primary cabinet with vented metal front doors	47 U	600 x 1000 mm (L x P)
VT584-000005	Primary cabinet with vented metal front doors	47 U	600 x 1200 mm (L x P)
VT584-000008	Primary cabinet with vented metal front doors	47 U	800 x 1000 mm (L x P)
VT584-000010	Primary cabinet with vented metal front doors	47 U	800 x 1200 mm (L x P)
VT584-000193	Primary cabinet with vented glass front doors	47 U	600 x 1000 mm (L x P)
VT584-000195	Primary cabinet with vented glass front doors	47 U	600 x 1200 mm (L x P)
VT584-000198	Primary cabinet with vented glass front doors	47 U	800 x 1000 mm (L x P)
VT584-000200	Primary cabinet with vented glass front doors	47 U	800 x 1200 mm (L x P)
VT584-000266	Primary cabinet with vented metal front doors	47 U	800 x 800 mm (L x P)
VT584-000592	Primary cabinet with vented glass front doors	47 U	600 x 800 mm (L x P)
VT584-000598	Primary cabinet with vented glass front doors	47 U	800 x 800 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	VA333-301001	Swing handle – with electromechanical release – single-point latch
	VA333-301002	Swing handle – with electromechanical release – three-point latch
	VA385-775228	Unit identification strips from 1U to 48U
	VA385-776542	Reverse unit identification strip from 48U to 1U
	VA554-546642	Swing handle – with numeric combination lock and master key
	VA584-000571	Kit of 100 pcs. Quickfix 1U panel – RAL 7016 plastic
	VA802-562180	Power cable 1.5 m unterminated with Schuko plug
	VA802-563532	Keyed lock – automatic closing (2 keys)
	VA802-563534	Blanking cam
	VA802-563610	Keyed lock – manual closing (2 keys)
	VA803-561559	Power cable 2 m unterminated with BS1363/A 13A plug
	VK385-775709	Sliding keyboard shelf, 19″
	VK385-775713	Metal cable duct kit, 27U (180 mm W)
	VK385-775715	Metal cable duct kit, 42U/43U (180 mm W)
	VK385-775723	Kit of metal double rings for cable support (10 pcs)
	VK385-775730	Fixed shelf kit, 470 mm (cabinet depth 600/800)
	VK385-775732	Fixed shelf kit, 670 mm (cabinet depth 800)
	VK385-775843	Thermostat and wiring kit
	VK385-775850	Metal cable duct kit, 47U (180 mm W)
	VK385-775905	1U 19″ solid panel kit, black (RAL 9005)
	VK385-775906	2U 19″ solid panel kit, black (RAL 9005)
	VK385-775907	3U 19″ solid panel kit, black (RAL 9005)
	VK385-775908	4U 19″ solid panel kit, black (RAL 9005)
	VK385-775909	5U 19″ solid panel kit, black (RAL 9005)
	VK385-775952	470 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-775953	670 mm support rail kit (800 mm deep cabinet), RAL 9005
	VK385-776190	M6 wing nuts kit, 50 pcs
	VK385-776191	M6×12 mm screws and washers kit, 50 pcs
	VK385-776192	370 mm fixed shelf kit (600/800 mm deep cabinet)
	VK385-776194	570 mm fixed shelf kit (800 mm deep cabinet)
	VK385-776196	1U panel kit with metal hooks
	VK385-776229	1U panel kit with plastic hooks
	VK385-776232	Plastic single ring kit for cable support (10 pcs)
	VK385-776252	570 mm support rail kit (800/1000 mm deep cabinet), RAL 9005
	VK385-776253	770 mm support rail kit (1000 mm deep cabinet), RAL 9005
	VK385-776268	370 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-776368	425 mm sliding shelf kit (600/800 mm deep cabinet)
	VK385-776369	625 mm sliding shelf kit (800 mm deep cabinet)
	VK385-776413	2U panel with cable entry slot, black
	VK385-776414	1U panel with brush strip, black
	VK385-776415	2U cable support panel, black
	VK385-776416	19″ cable support bar, black
	VK593-599790	19″ cantilever shelf kit, 255 mm
	VK593-599791	19″ cantilever shelf kit, 400 mm
	VT390-784799	Pull-out drawer kit, 19″ 2U, RAL 9005
	VT390-787528	Support rail kit, 570 mm (800/1000 mm deep cabinet), galvanized
	VT390-787537	Support rail kit, 670 mm (800 mm deep cabinet), galvanized
	VT390-787644	DIN rail enclosure panel kit, 19″, RAL 9005
	VT390-787647	DIN rail enclosure panel kit – 180 mm depth – RAL 9005
	VT390-787965	Support rail kit, 370 mm (600/800 mm deep cabinet), galvanized
	VT390-787966	Support rail kit, 470 mm (600/800 mm deep cabinet), galvanized
	VT390-787967	Support rail kit, 770 mm (1000 mm deep cabinet), galvanized
	VT390-787968	Support bracket kit, 42U, for vertical PDU, mounting hardware included
	VT390-787969	Support bracket kit, 47U, for vertical PDU, mounting hardware included
	VT390-788068	DIN rail enclosure panel kit with hinged Lexan panel – 180 mm depth – RAL 9005
	VT390-788074	Pull-out drawer kit, 19″ 2U, RAL 9005, top-enclosed – recessed handle
	VT390-788074_7035	Pullout drawer kit 19″ 2U RAL 7035, closed top, recessed handle
	VT390-788091_7035	Pull-out drawer kit, 19″ 3U, RAL 7035, top-enclosed – recessed handle
	VT390-788091_9005	Pull-out drawer kit, 19″ 3U, RAL 9005, top-enclosed – recessed handle
	VT555-500515	Copper ground bar kit, 1U 19″, with insulators
	VT555-501148	Fan unit kit, 4 fans, 600×1000/1200 mm, with integrated thermostat
	VT555-501531	Vented panel kit, 1U 19″, black (RAL 9005)
	VT555-501532	Vented panel kit, 2U 19″, black (RAL 9005)
	VT567-565489	Lifting eyebolt kit
	VT584-000133	670 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000134	770 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000135	870 mm fixed shelf kit (1200 mm version only)
	VT584-000151	625 mm pull-out shelf kit (1000 mm depth)
	VT584-000152	825 mm pull-out shelf kit (1200 mm depth)
	VT584-000157	6-fan unit kit, 600 mm
	VT584-000188	4-fan unit kit, 600 mm
	VT584-000209	600 mm anti-tilt kit, for use with leveling feet
	VT584-000216	4-fan unit kit, 600 mm, low noise
	VT584-000218	6-fan unit kit, 600 mm, low noise
	VT584-000220	100 mm base kit, 600 x 1000 mm
	VT584-000222	100 mm base kit, 600 x 1200 mm
	VT584-000225	Cable entry brush kit
	VT584-000252	Cantilever cable management support, horizontal
	VT584-000366	Adjustable-depth fixed shelf kit (550 mm to 900 mm)
	VT584-000379	600 mm anti-tilt kit, for use with casters or plinth
	VT584-000380	800 mm anti-tilt kit for casters/plinth
	VT584-000383	27U coupling trim kit
	VT584-000384	Coupling trim kit, 42U
	VT584-000385	Coupling trim kit, 47U
	VT584-000450	Description not available yet
	VT584-000451	Description not available yet
	VT584-000452	Description not available yet
	VT584-000453	Description not available yet
	VT584-000504	Heavy-load 2-caster kit with brake, 250 Kg
	VT584-000505	Heavy-load 2-caster kit without brake, 250 Kg
	VT584-000518	S-MAX reducer quick-lock cap kit
	VT584-000519	Overhead cable duct kit for S-MAX, W 600
	VT584-000520	Overhead cable duct kit for S-MAX, W 800
	VT584-000537	2U 19″ equipment security enclosure, 600 mm
	VT584-000538	Cable entry slot cover panel kit for 1000 mm cabinets
	VT584-000539	Cable entry slot cover panel kit for 1200 mm cabinets
	VT584-000540	Modular bottom plate kit with cable brush, 600 x 1000, RAL 9005
	VT584-000541	Modular bottom plate kit with cable brush, 600 x 1200, RAL 9005
	VT593-599469	Blue cable entry slot trim kit, 125 mm (10 pcs)
	VT593-599470	Cable support kit, 125 mm (10 pcs)
	VT802-510011	Catalog item in the APW range for 19″ rack cabinets
	VT802-510014	APW reference for fitting out 19″ rack cabinets
	VT802-510026	Item in the APW range dedicated to 19″ rack cabinets
	VT802-510027	APW component for fitting out the 19″ rack
	VT802-552929	Ground bar, 13U, for cabinets
	VT802-552930	Ground bar, 27U, for cabinets
	VT802-552931	Ground bar, 39U, for cabinets
	VT802-556088	Distribution bar kit for cabinets
