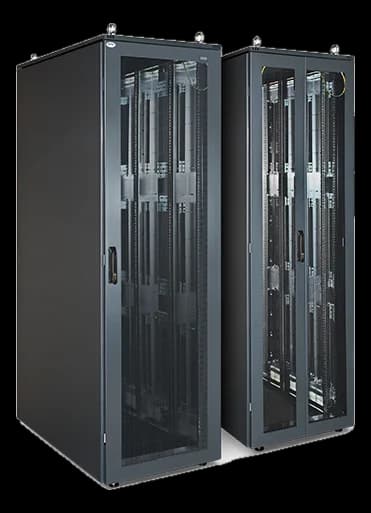

Blade S-MAX19″ rack cabinet for high-density servers with additional vertical units

Manufacturer

Blade S-MAX is the floor-standing cabinet for data centers housing high-density servers, where cabling and power ducts compete with usable space.

In addition to traditional horizontal 19″ units, it provides 6 or 8 additional vertical units depending on the version, plus a dedicated space in the top cover for power ducts: a 42U in traditional configuration thus reaches 50 units overall. The structure supports 1300 Kg static, uniformly distributed; the ventilated doors have a 180° opening, tilting handle and three-point lock.

Request information Full specifications ↓

Technical data

Features

Frame structure composed of 2 end frames and 4 vertical uprights
Static load capacity up to 1300 Kg uniformly distributed
Adjustable front 19" rack uprights and rear uprights compliant with IEC60297 standards with 50 mm side channeling for cable routing or use of vertical units
Ventilated top cover with 6 side cable-passage areas and 1 rear area
Reversible ventilated (81%) metal front door with temperature display and probe, tilting handle, automatic lock and three-point closure
Double ventilated rear door with tilting handle, automatic lock and three-point closure
180° door opening
Easily removable side panels with security lock inside the cabinet
Additional side vertical units
Open bottom for convenient cable routing, pre-fitted for closing panel installation
Height-adjustable feet
Optional wheels with 250 Kg load capacity
"Additional bay" versions pre-fitted for coupling
Supplied with complete grounding cable set in compliance with EN 60950 standard

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey
RAL 9005Jet black

Technical specifications

Rack units	47 U42 U

Chassis material	acciaio
Dimensions	L 600 mm · P 978 / 1178 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

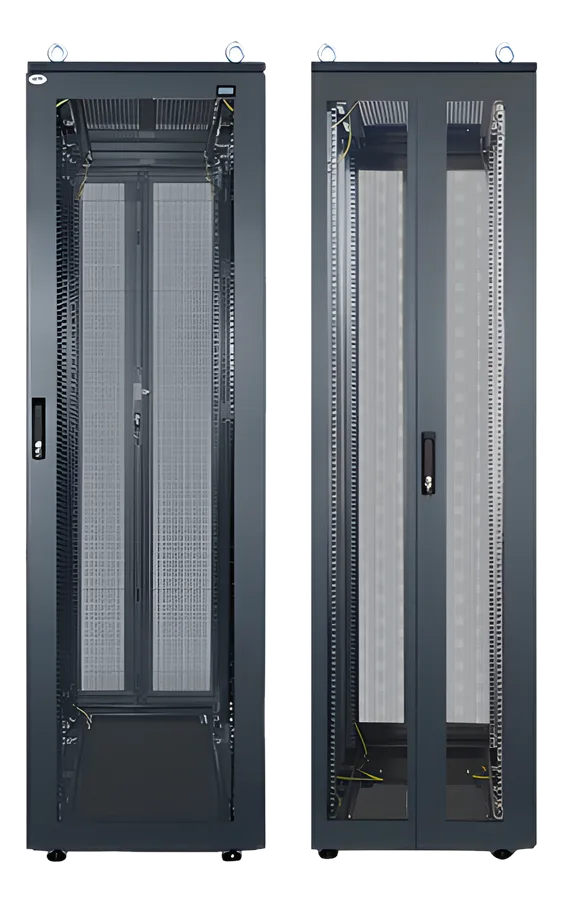

BLADE S-MAX PRIMARY
Versione standard – 600 mm · Porta ventilata in metallo

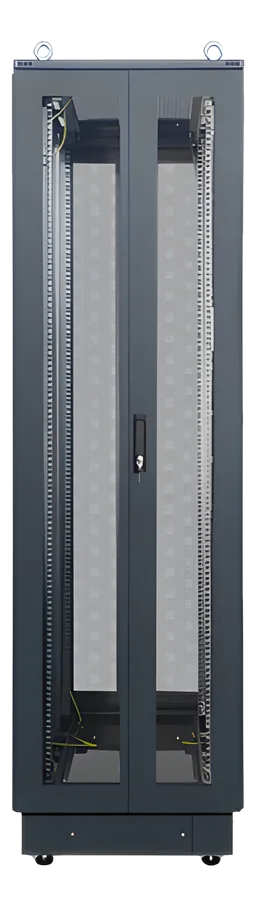

BLADE S-MAX
Versione configurata · Porte doppie frontali e posteriori

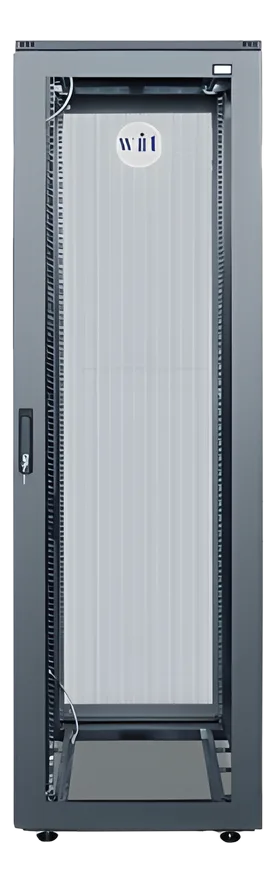

BLADE S-MAX
Versione configurata · Porta singola frontale e posteriore

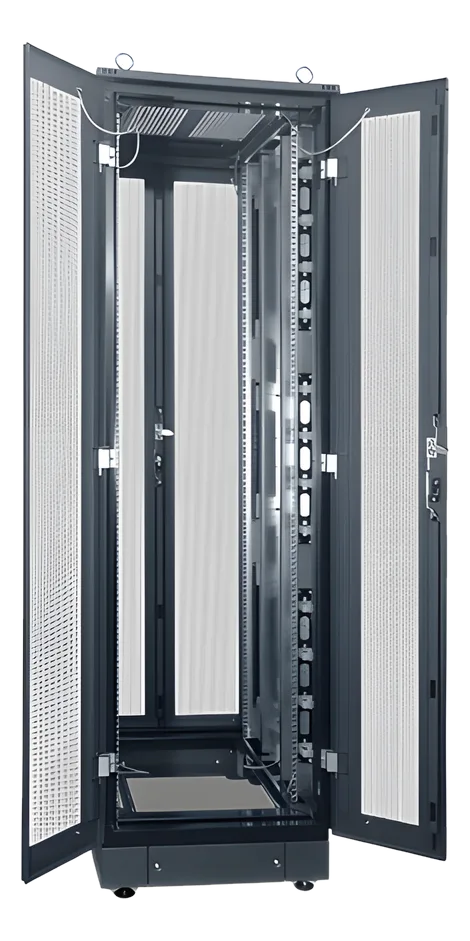

BLADE S-MAX
Versione configurata · Montanti e supporti zincati

Documentation

DatasheetPDF · 164 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT584-000309	BLADE S-MAX	42 U	600 x 1000 mm (L x P)
VT584-000311	BLADE S-MAX	42 U	600 x 1200 mm (L x P)
VT584-000310	BLADE S-MAX	47 U	600 x 1000 mm (L x P)
VT584-000312	BLADE S-MAX	47 U	600 x 1200 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	VA333-301001	Swing handle – with electromechanical release – single-point latch
	VA333-301002	Swing handle – with electromechanical release – three-point latch
	VA554-546642	Swing handle – with numeric combination lock and master key
	VA584-000571	Kit of 100 pcs. Quickfix 1U panel – RAL 7016 plastic
	VA802-562180	Power cable 1.5 m unterminated with Schuko plug
	VA802-563532	Keyed lock – automatic closing (2 keys)
	VA802-563534	Blanking cam
	VA802-563610	Keyed lock – manual closing (2 keys)
	VA803-561559	Power cable 2 m unterminated with BS1363/A 13A plug
	VK385-775709	Sliding keyboard shelf, 19″
	VK385-775715	Metal cable duct kit, 42U/43U (180 mm W)
	VK385-775843	Thermostat and wiring kit
	VK385-775850	Metal cable duct kit, 47U (180 mm W)
	VK385-775905	1U 19″ solid panel kit, black (RAL 9005)
	VK385-775906	2U 19″ solid panel kit, black (RAL 9005)
	VK385-775907	3U 19″ solid panel kit, black (RAL 9005)
	VK385-775908	4U 19″ solid panel kit, black (RAL 9005)
	VK385-775909	5U 19″ solid panel kit, black (RAL 9005)
	VK385-775952	470 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-775953	670 mm support rail kit (800 mm deep cabinet), RAL 9005
	VK385-776190	M6 wing nuts kit, 50 pcs
	VK385-776191	M6×12 mm screws and washers kit, 50 pcs
	VK385-776196	1U panel kit with metal hooks
	VK385-776229	1U panel kit with plastic hooks
	VK385-776232	Plastic single ring kit for cable support (10 pcs)
	VK385-776252	570 mm support rail kit (800/1000 mm deep cabinet), RAL 9005
	VK385-776253	770 mm support rail kit (1000 mm deep cabinet), RAL 9005
	VK385-776268	370 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-776413	2U panel with cable entry slot, black
	VK385-776414	1U panel with brush strip, black
	VK385-776415	2U cable support panel, black
	VK385-776416	19″ cable support bar, black
	VK593-599790	19″ cantilever shelf kit, 255 mm
	VK593-599791	19″ cantilever shelf kit, 400 mm
	VT390-784799	Pull-out drawer kit, 19″ 2U, RAL 9005
	VT390-787528	Support rail kit, 570 mm (800/1000 mm deep cabinet), galvanized
	VT390-787537	Support rail kit, 670 mm (800 mm deep cabinet), galvanized
	VT390-787644	DIN rail enclosure panel kit, 19″, RAL 9005
	VT390-787647	DIN rail enclosure panel kit – 180 mm depth – RAL 9005
	VT390-787965	Support rail kit, 370 mm (600/800 mm deep cabinet), galvanized
	VT390-787966	Support rail kit, 470 mm (600/800 mm deep cabinet), galvanized
	VT390-787967	Support rail kit, 770 mm (1000 mm deep cabinet), galvanized
	VT390-787968	Support bracket kit, 42U, for vertical PDU, mounting hardware included
	VT390-787969	Support bracket kit, 47U, for vertical PDU, mounting hardware included
	VT390-788068	DIN rail enclosure panel kit with hinged Lexan panel – 180 mm depth – RAL 9005
	VT390-788074	Pull-out drawer kit, 19″ 2U, RAL 9005, top-enclosed – recessed handle
	VT390-788074_7035	Pullout drawer kit 19″ 2U RAL 7035, closed top, recessed handle
	VT390-788091_7035	Pull-out drawer kit, 19″ 3U, RAL 7035, top-enclosed – recessed handle
	VT390-788091_9005	Pull-out drawer kit, 19″ 3U, RAL 9005, top-enclosed – recessed handle
	VT555-500515	Copper ground bar kit, 1U 19″, with insulators
	VT555-501148	Fan unit kit, 4 fans, 600×1000/1200 mm, with integrated thermostat
	VT555-501531	Vented panel kit, 1U 19″, black (RAL 9005)
	VT555-501532	Vented panel kit, 2U 19″, black (RAL 9005)
	VT567-565489	Lifting eyebolt kit
	VT584-000133	670 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000134	770 mm fixed shelf kit (1000 mm deep cabinet)
	VT584-000135	870 mm fixed shelf kit (1200 mm version only)
	VT584-000151	625 mm pull-out shelf kit (1000 mm depth)
	VT584-000152	825 mm pull-out shelf kit (1200 mm depth)
	VT584-000157	6-fan unit kit, 600 mm
	VT584-000188	4-fan unit kit, 600 mm
	VT584-000209	600 mm anti-tilt kit, for use with leveling feet
	VT584-000216	4-fan unit kit, 600 mm, low noise
	VT584-000218	6-fan unit kit, 600 mm, low noise
	VT584-000220	100 mm base kit, 600 x 1000 mm
	VT584-000222	100 mm base kit, 600 x 1200 mm
	VT584-000225	Cable entry brush kit
	VT584-000252	Cantilever cable management support, horizontal
	VT584-000366	Adjustable-depth fixed shelf kit (550 mm to 900 mm)
	VT584-000379	600 mm anti-tilt kit, for use with casters or plinth
	VT584-000384	Coupling trim kit, 42U
	VT584-000385	Coupling trim kit, 47U
	VT584-000504	Heavy-load 2-caster kit with brake, 250 Kg
	VT584-000505	Heavy-load 2-caster kit without brake, 250 Kg
	VT584-000519	Overhead cable duct kit for S-MAX, W 600
	VT584-000520	Overhead cable duct kit for S-MAX, W 800
	VT584-000537	2U 19″ equipment security enclosure, 600 mm
	VT584-000538	Cable entry slot cover panel kit for 1000 mm cabinets
	VT584-000539	Cable entry slot cover panel kit for 1200 mm cabinets
	VT584-000540	Modular bottom plate kit with cable brush, 600 x 1000, RAL 9005
	VT584-000541	Modular bottom plate kit with cable brush, 600 x 1200, RAL 9005
	VT584-000583	42U bracket kit for fixed rails, RAL 9005
	VT584-000584	47U bracket kit for fixed rails, RAL 9005
	VT802-510011	Catalog item in the APW range for 19″ rack cabinets
	VT802-510014	APW reference for fitting out 19″ rack cabinets
	VT802-510026	Item in the APW range dedicated to 19″ rack cabinets
	VT802-510027	APW component for fitting out the 19″ rack
	VT802-552929	Ground bar, 13U, for cabinets
	VT802-552930	Ground bar, 27U, for cabinets
	VT802-552931	Ground bar, 39U, for cabinets
	VT802-556088	Distribution bar kit for cabinets
