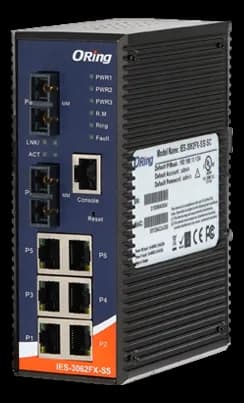

IES-3062FX-SS-SCManaged Fast/Gigabit switch with 2 SC fiber ports and O-Ring redundancy
- Manufacturer
IES-3062FX-SS-SC is a managed Ethernet switch for industrial networks on DIN rail, with 10/100 and 10/100/1000 copper ports and two SC fiber ports. Support for both multimode and single-mode, with the 100Base-FX, 1000Base-SX and 1000Base-LX standards, allows links over different distances and backbone types.
On network reliability it integrates the O-Ring, O-Chain, MRP, MSTP and RSTP redundancy protocols. The power supply accepts a 12~48 V range on a redundant input, with protection against overload/overcurrent and reverse polarity.
At a glance
- Fiber ports (SFP/FX): 2
- Fiber port speed: 100Base-FX
- Fiber mode: Single-mode
- Serial interfaces: RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1
- Management: Managed
Technical specifications
| Copper ports (RJ45/M12) | 6(10/100 Fast)2(10/100/1000 Gigabit) |
|---|---|
| Fiber ports (SFP/FX) | 2 |
| Fiber port speed | 100Base-FX |
| Fiber mode | Single-mode |
| Serial interfaces | RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
| Fiber standard | 100Base-FX1000Base-SX1000Base-LX |
| Fiber connector | SC |
| Management | Managed |
|---|---|
| Copper port speed | 10/100/1000 Gigabit10/100 Fast |
| Redundancy protocols | O-ChainO-RingRSTPMSTPMRP |
| Ethernet standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Forwarding mode | Store-and-forward |
| MAC table | 8192 address |
| Packet buffer | 1 Mbit |
| Priority queues | 4 queue |
| IGMP multicast groups | 1024 group |
| Power input | 12–48 V |
|---|---|
| Redundant input | Yes |
| Power consumption | 9 W |
| Alarm relay | Yes(1A@24VDC) |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 54.2 × 145.4 × 107.1 mm |
| Operating temperature | -40–75 °C |
|---|---|
| IP rating | IP30 |
| Storage temperature | -40–85 °C |
| Manufacturer warranty | 5 year |
| EMC (emission/immunity) | IEC 61000-4-6 CSIEC 61000-4-8 PFMFIEC 61000-4-2 ESDEN 55035FCC Part 15BEN 55032CISPR 32IEC 61000-4-3 RSIEC 61000-4-4 EFTIEC 61000-4-5 Surge |
|---|---|
| Electrical safety | EN 60950-1EN 62368-1 |
| End of life (EOL) | 30/09/2026 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
