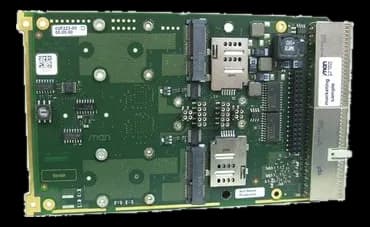

F223CompactPCI board for wireless modules compliant with EN 50155
- Manufacturer
F223 is a CompactPCI board for wireless connectivity on board vehicles: it takes PCI Express Mini Card modules for WLAN, UMTS, GSM, LTE and GPS, with the antennas brought to the front panel.
The board is specified from -40 to 85 °C in storage and for an altitude between -300 and 3000 m. Conformal coating protects the printed circuit board from humidity and dust.
At a glance
- Board function: Carrier
- Architecture standard: cPCI 3U
Technical specifications
| Connectors | SMA(RP) |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | cPCI 3U |
| Rugged / conformal coating | conformal coating |
|---|
| Operating altitude | -300–3000 m |
|---|---|
| Storage temperature | -40–85 °C |
| MTBF | 1224236 h(IEC/TR 62380) |
| Certifications | EN 50155 |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
