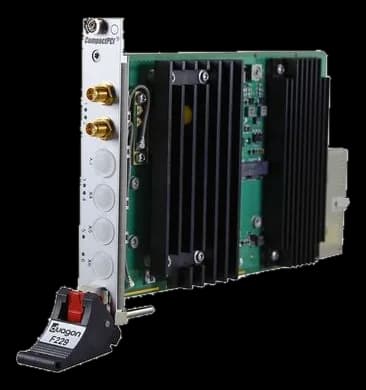

F229CompactPCI wireless board for the railway sector
- Manufacturer
F229 is a CompactPCI board for wireless connectivity on board vehicles, with GNSS, LTE and WLAN functions entrusted to the Mini Card modules fitted in the slots.
Cooling is by forced convection and the declared maximum altitude is 1400 m. The service life foreseen by the manufacturer is 20 years and fire protection follows EN 45545.
At a glance
- Board function: Carrier
- Architecture standard: cPCI 3U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Connectors | SMA(RP) |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | cPCI 3U |
| Rugged / conformal coating | EN 50155:2021, class PC2 (Any PCB protected on both sides); Third party products |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating altitude | 1400 m(EN 50125-1) |
| Operating temperature | -40–85 °C |
| Storage temperature | -40–85 °C |
| MTBF | 1292412 h(IEC/TR 62380) |
| Certifications | EN 50155 |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
