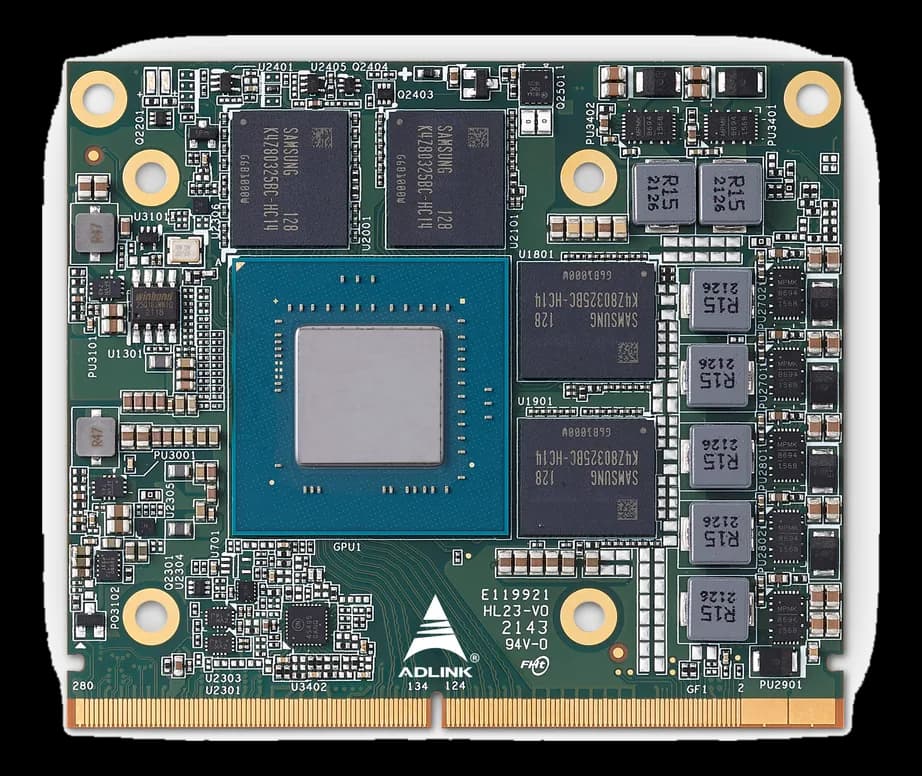

EGX-MXM-A2000MXM 3.1 Type A module with NVIDIA RTX A2000 Ampere GPU
- Manufacturer
The ADLINK EGX-MXM-A2000 is an MXM 3.1 Type A graphics module built around the NVIDIA RTX A2000 Ampere GPU (GA107-980), with PCIe Gen 4 x8 interface and GDDR6 memory on a 128-bit bus providing 192 GB/s of memory bandwidth. TGP ranges from 35 to 60 W. It is available for 0~55 °C standard operation or −20~70 °C in the ETT version, for graphics and GPGPU applications.
At a glance
- NVIDIA RTX A2000 GA107-980 GPU
- Memory bandwidth 192 GB/s
- PCIe Gen 4 x8 interface
- TGP from 35 to 60 W
Technical specifications
| Graphics | NVIDIA embedded graphics based on Ampere architecture · NVIDIA RTX™ A2000 GA107-980 GPU · NVIDIA Ampere Architecture |
|---|
| Memory | 4GB/8GB GDDR6 memory, 128-bit, Bandwidth: 192 GB/s · Up to 16GB GDDR6 memory, 256-bit |
|---|
| Architecture standard | MXM |
|---|---|
| Board function | GPU / Graphics |
| Bus interface | PCIe Gen 4 up to x16 interface · MXM 3.1, PCIe 4.0 x8 support · PCIe Gen 4 x8 interface |
| Power consumption | 35–60 W |
|---|
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm · Standard MXM 3.1 Type A (82x70mm) |
|---|
| Operating temperature | 0–55 °C(optional)-20–70 °C(optional) |
|---|---|
| Storage temperature | -40–85 °C |
| Operating systems | WindowsLinux |
|---|
| Form factor | MXM Type A |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
