EGX-MXM-A1000MXM Type A mezzanine graphics module with NVIDIA RTX A1000 GPU
- Manufacturer

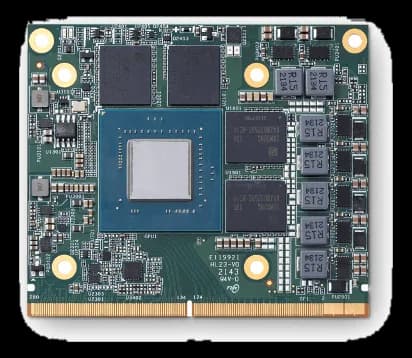

EGX-MXM-A1000 is a mezzanine module that brings an NVIDIA Ampere GA107-950 GPU to embedded systems requiring graphics and GPGPU acceleration without a full-size PCIe slot: machine vision, imaging, gaming platforms and rugged industrial computing.
On the software side it covers DirectX 12 and OpenGL 4.6 for rendering and OpenCL 1.2 for compute, so multi-display rendering and inference stay on the same silicon. The standard MXM 3.1 form factor keeps graphics replaceable rather than soldered on board.
The thermal grade is a configuration choice: standard version or extended temperature ETT version.
At a glance
- Memory bandwidth 192 GB/s
- 128-bit GDDR6 bus
- Form factor 82 x 70 x 4.8 mm
- 64-bit drivers for Windows 11, 10 and Linux
- CUDA Compute 8.0 API and above
Technical specifications
| Graphics | NVIDIA RTX A1000 (GA107-950) |
|---|
| Memory | 4GB GDDR6 |
|---|
| Architecture standard | MXM |
|---|---|
| Board function | GPU / Graphics |
| Bus interface | PCIe Gen 4 up to x16 interface · PCIe Gen 4 x8 |
| Operating temperature | -20–70 °C0–55 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Operating systems | WindowsLinux |
|---|
| Form factor | MXM Type A |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
