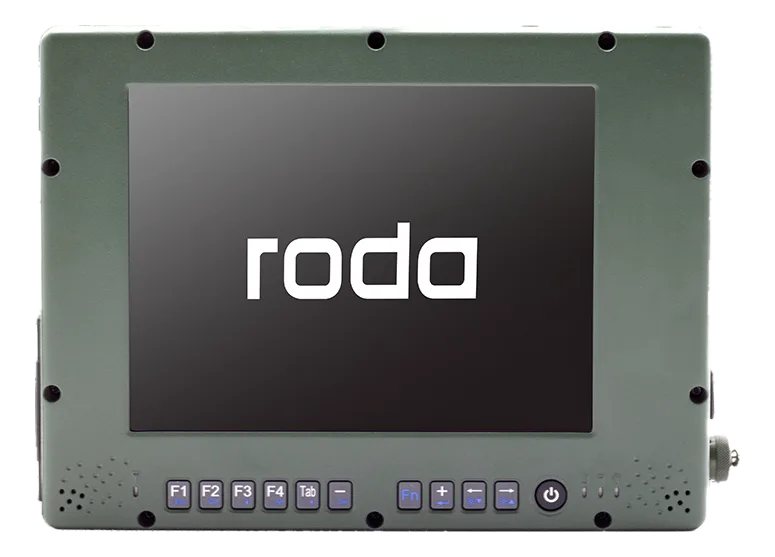

DR138.4" rugged tablet with a 57.2 Wh battery
- Manufacturer
DR13 is a RODA rugged tablet in compact format, for operators on the move and for work on board a vehicle; the supported operating system is Windows.
The platform is 7th-gen Intel (Kaby Lake) with Intel HD 620 graphics, DDR4 memory and a TPM 2.0 module. The power input accepts both AC and DC, with a supplied 90 W power adapter and surge and transient protection; operation is specified from -20 to 60 °C and storage from -40 to 70 °C.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® 7th Generation Dual Core™ i7-7600U Processor (4M Cache, up to 3.60 GHz)
- CPU frequency: 3.6–3.9 GHz
- TPM: TPM 2.0
- CPU cores: 2
Technical specifications
| CPU generation | 7th gen (Kaby Lake) |
|---|---|
| Processor | Intel® 7th Generation Dual Core™ i7-7600U Processor (4M Cache, up to 3.60 GHz) |
| Graphics | Intel® HD Graphics 620 |
| CPU frequency | 3.6–3.9 GHz |
| TPM | TPM 2.0 |
| CPU cores | 2 |
| CPU class | Intel Core i3/i5/i7/i9 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 32 GB |
| Memory | DDR4 2133 MHz Up to 32 GB (1× SO-DIMM slot)16GB System Memory GB(DDR4 · 2133MHz) |
| Storage | Exchangeable 2.5" SATA III SSD2.5” SATAIII SSD, Interface SATAIII, Height 7mm, Industrial gradeSD Card Slot x1 |
|---|
| Display size | 8.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 600–750 cd/m²(typ) |
| Optical bonding | Yes |
| Touchscreen | Resistive |
| USB ports | 2× USB3.1 (1× fast charge) |
|---|---|
| Audio | HD Audio and mono Speakers, Embedded Digital Mic(mic-in) |
| Camera | OPTIONAL: Webcam 1MP |
| Other I/O | 1× docking connector for DockLite DL |
| Serial interfaces | 1× COM (DB9) |
| Ethernet ports | 1× GBit LAN (RJ45) |
| Wireless | Wi-Fi |
|---|
| Battery capacity | 57.2 Wh |
|---|---|
| PSU power | 90 W |
| AC/DC input | DCAC |
| Dimensions | 250 × 190 × 45.2 mm |
|---|---|
| Chassis material | magnesio |
| IP rating | IP65 |
|---|---|
| Storage temperature | -40–70 °C |
| Operating temperature | -20–60 °C |
| Certifications | MIL-STD-461MIL-STD-810FCCCERoHS |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
