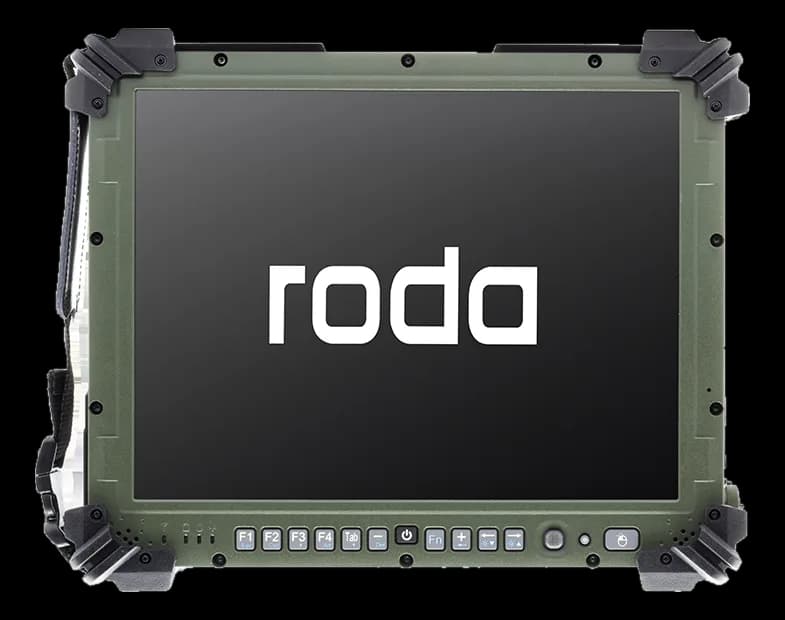

DK1312.1" rugged tablet with magnesium chassis and optical bonding
- Manufacturer
DK13 is a RODA rugged tablet for field work and on-board vehicle use; the supported operating system is Windows.
The figure that sets it apart is the battery thermal window: charge and discharge are specified from -10 to 55 °C, a requirement that counts in outdoor use. The platform is 7th-gen Intel (Kaby Lake) with Intel HD 620 graphics and DDR4 memory; the power input accepts both AC and DC with surge and transient protection, storage is specified from -40 to 70 °C and conformity also covers CE, FCC and RoHS.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- CPU frequency: 3.9 GHz
- TPM: TPM 2.0
- CPU cores: 2
- CPU class: Intel Core i3/i5/i7/i9
Technical specifications
| CPU generation | 7th gen (Kaby Lake) |
|---|---|
| Graphics | Intel® HD Graphics 620 |
| CPU frequency | 3.9 GHz |
| TPM | TPM 2.0 |
| CPU cores | 2 |
| CPU class | Intel Core i3/i5/i7/i9 |
| RAM type | DDR4 |
|---|---|
| Memory | DDR4 2133 MHz, Up to 32 GB (1× SO-DIMM slot)supporting 8/16GB DDR4 2133 memory card. Maximum capacity 16GB GBMax. 16GB, Industrial grade, DDR4 SO-DIMM x 1, 2133MHz |
| Storage | 2.5” SATAIII SSD, Interface: SATAIII, Height: 7mm, Industrial-GradeExchangeable 2.5" SATA III SSD |
|---|
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 450–650 cd/m²(typ) |
| Optical bonding | Yes |
| Touchscreen | Resistive |
| USB ports | 2× USB3.1 (1× fast charge) |
|---|---|
| Audio | HD Audio and Stereo Speakers |
| Camera | Optional: Webcam 1MP |
| Other I/O | 1× docking connector for DockLite DL |
| Serial interfaces | Serial Port DB9 x 1COM2/COM3 default RS232 |
| Ethernet ports | 1× GBit LAN (RJ45) |
| PSU power | 90 W |
|---|---|
| Battery / UPS | Charge: -10 ~ 55°C / Discharge: -10 ~ 55°C |
| AC/DC input | DCAC |
| Weight | 2.5 kg |
|---|---|
| Chassis material | magnesio |
| IP rating | IP65 |
|---|---|
| Storage temperature | -40–70 °C |
| Certifications | FCCCERoHSMIL-STD-461MIL-STD-810 |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
