DE137" rugged tablet with IP67 rating
- Manufacturer

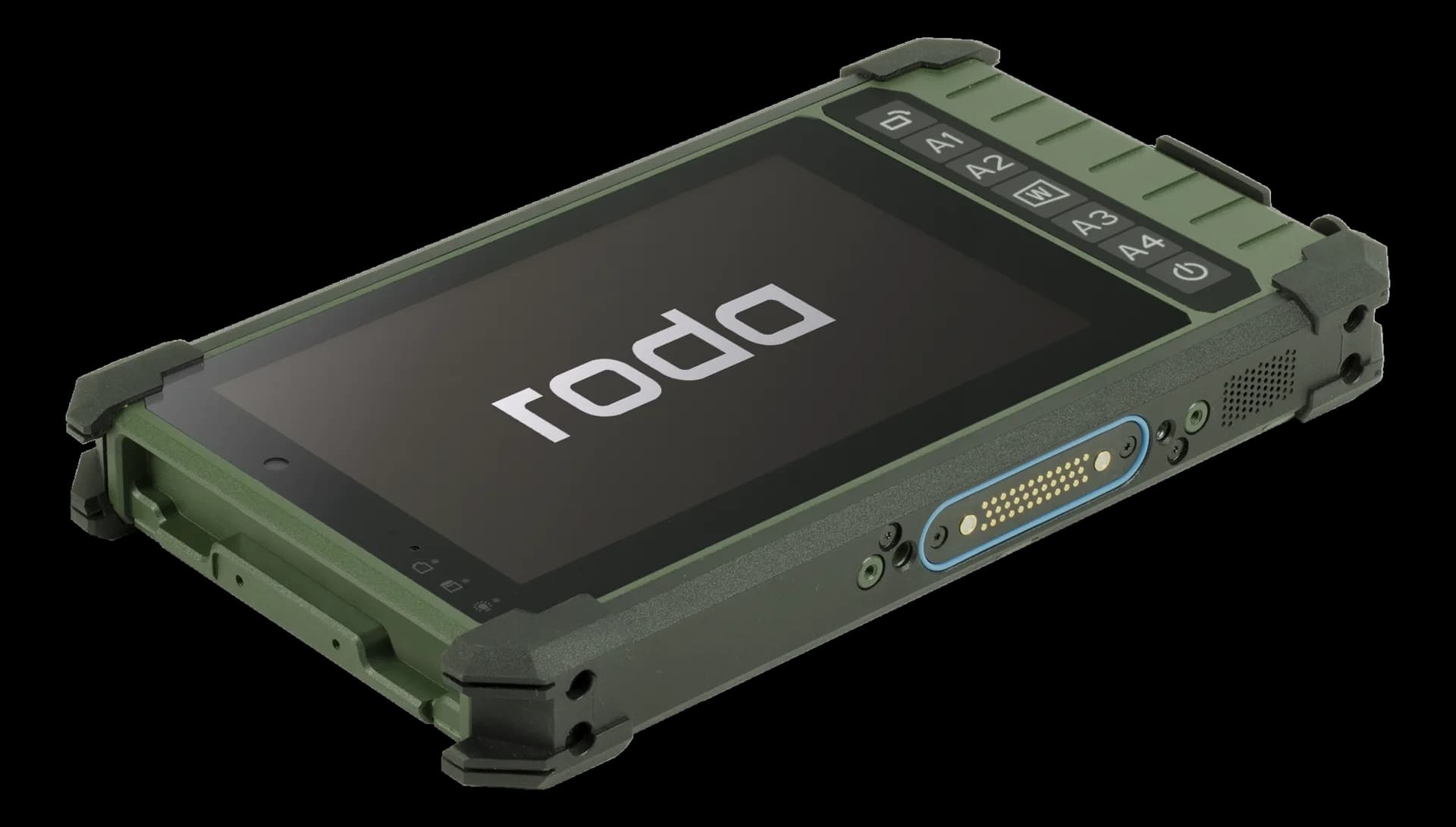

DE13 is a RODA rugged tablet in handheld format, conceived for the operator who works standing, on the move or on board a vehicle; the supported operating system is Windows.
The platform is 7th-gen Intel (Kaby Lake) with Intel HD 615 graphics and a TPM 2.0 module; the membrane function keys are LED backlit, with the power button on the front. The power input accepts both AC and DC, with surge and transient protection; out of service the tablet tolerates storage from -40 to 70 °C.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® 7th Generation Dual Core™ i7-7Y75 Processor (4M Cache, up to 3.60 GHz)
- CPU frequency: 3.6 GHz
- TPM: TPM 2.0
- CPU cores: 2
Technical specifications
| CPU generation | 7th gen (Kaby Lake) |
|---|---|
| Processor | Intel® 7th Generation Dual Core™ i7-7Y75 Processor (4M Cache, up to 3.60 GHz) |
| Graphics | Intel® HD Graphics 615 |
| CPU frequency | 3.6 GHz |
| TPM | TPM 2.0 |
| CPU cores | 2 |
| CPU class | Intel Core i3/i5/i7/i9 |
| RAM type | LPDDR3 |
|---|---|
| Memory | 16 GB LPDDR3 1066 MHz16GB System Memory (On board) GB(LPDDR3 · 1066MHz) |
| Storage | M.2 SATA SSD (1× slot)M.2 2280 M key SATAIII SSD, 128GB/256GB/512GB, Industrial Grade(M.2-M) |
|---|
| Display size | 7 ″ |
|---|---|
| Resolution | 1280x800 |
| Brightness | 640–800 cd/m²(typ) |
| Video outputs | 1× VGA |
| OSD controls | Power button (front side); Membrane Function Keys with LED Backlight |
| Touchscreen | Resistive |
| USB ports | Amphenol USB3.1 Type C x 11× USB-C |
|---|---|
| Audio | HD Audio and mono SpeakersEmbedded Digital Mic(mic-in) |
| Camera | Webcam 1MP |
| Other I/O | 1× docking connector |
| Serial interfaces | 2× COM (RS-232/422) |
| Ethernet ports | 1× GBit LAN |
| Wireless | BluetoothWi-Fi |
|---|
| Battery / UPS | 138 mm (W) x 136 mm (D) x 9.7 mm (H) |
|---|---|
| AC/DC input | ACDC |
| Weight | 1.15 kg |
|---|---|
| Dimensions | 250 × 144 × 30.5 mm |
| Chassis material | alluminio |
| IP rating | IP67 |
|---|---|
| Storage temperature | -40–70 °C |
| Operating temperature | -20–60 °C |
| Certifications | RoHSMIL-STD-461CEMIL-STD-810FCC |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
