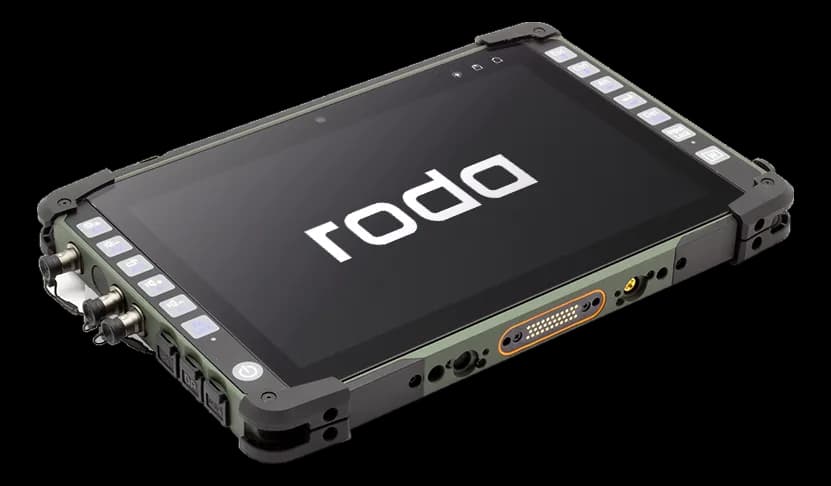

DS1310.1" rugged tablet in aluminum, in Black and NATO Green
- Manufacturer
DS13 is a RODA rugged tablet for operational use in the field; on board there are an integrated camera and a resistive touchscreen, and the supported operating system is Windows.
The platform is 7th-gen Intel (Kaby Lake) with Intel HD 615 graphics and a TPM 2.0 module. Operation is specified from -20 to 60 °C and storage from -40 to 70 °C, with surge and transient protection on the power input; conformity also covers MIL-STD-461, CE, FCC and RoHS.
At a glance
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Ivy Bridge i7-7Y75 Processor ,4 MB Cache
- CPU frequency: 3.6 GHz
- TPM: TPM 2.0
- CPU class: Intel Core i3/i5/i7/i9
Technical specifications
| CPU generation | 7th gen (Kaby Lake) |
|---|---|
| Processor | Intel® Ivy Bridge i7-7Y75 Processor ,4 MB Cache |
| Graphics | Intel® HD Graphics 615 |
| CPU frequency | 3.6 GHz |
| TPM | TPM 2.0 |
| CPU class | Intel Core i3/i5/i7/i9 |
| RAM type | LPDDR3 |
|---|---|
| Memory | 16GB System Memory GB16 GB LPDDR3 1866 MHzIndustrial grade, LPDDR3 |
| Storage | 128GB/256GB/512GBM.2 slot 2280 SATA III SSDmSATA SSDRemovable mSATA SSDSDHC, SDXC, UHS-1 type micro SD cards |
|---|
| Display size | 10.1 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | 650–750 cd/m²(typ) |
| Video outputs | 1× mini Displayport |
| Optical bonding | Yes |
| Touchscreen | Resistive |
| Audio | HD Audio and mono SpeakersOptional Embedded Digital Mic(mic-in) |
|---|---|
| Camera | Webcam 1MP |
| Other I/O | 1× DC-In (3-Pin) · 1× micro SD card slot · 2× ext. antenna signal · 1× docking connector for DockLite DS |
| Serial interfaces | 2× COM (RS-232/422) |
| Ethernet ports | 1× GBit LAN |
| Wireless | Bluetooth |
|---|
| Battery capacity | 50.6 Wh |
|---|---|
| PSU power | 90 W |
| AC/DC input | ACDC |
| Supply voltage | 100–240 V AC12–32 V DC |
| Dimensions | 286 × 193 × 27 mm |
|---|---|
| Chassis material | Aluminum |
| Chassis color | Black, NATO green |
| IP rating | IP65 |
|---|---|
| Storage temperature | -40–70 °C |
| Operating temperature | -20–60 °C |
| Certifications | CEFCCMIL-STD-461MIL-STD-810RoHS |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
