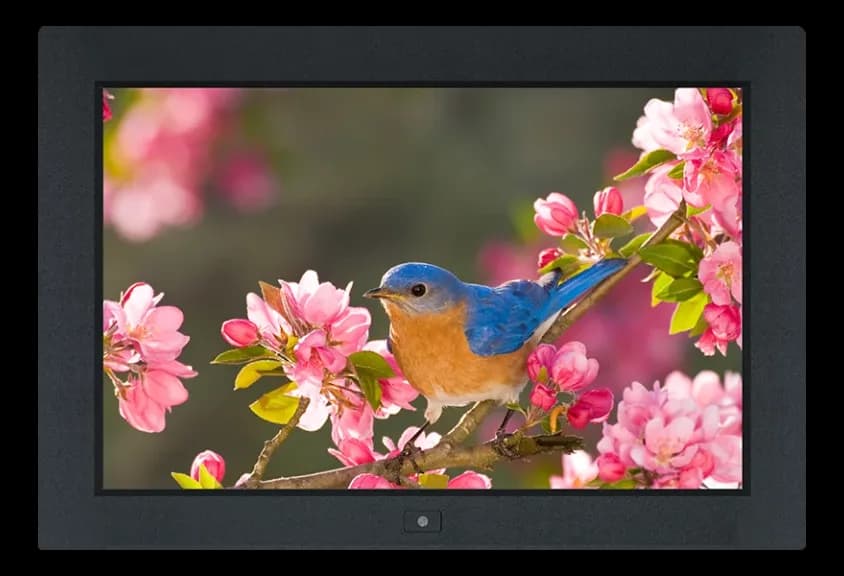

DP-X24Industrial monitor with DC input at a selectable nominal voltage
- Configurations
- 5 available configurations
DP-X24 is a monitor intended for industrial applications powered from direct current: electrical panels, plants and installations where distribution is directly in DC and a display is needed that accepts the voltage already present on board.
The DC power input provides a nominal voltage selectable among 12, 24, 48 or 125 V, according to the chosen configuration; the product carries the CE marking.
The DP-X24 family comprises several configurations with dedicated part numbers; an example is DP-X24/DC12.
At a glance
- Display size: 24 ″
- Resolution: 1920x1200 WUXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA |
| Aspect ratio | 16:10 |
| Contrast ratio | 1000:1 |
| AC/DC input | ACDC(optional) |
|---|---|
| Supply voltage | 100–240 V AC9–18 V DC(optional)18–36 V DC(optional)36–75 V DC(optional)66–160 V DC(optional) |
| Mounting | Desktop / StandVESA Mount |
|---|---|
| Dimensions | 590.4 × 396 × 82.2 mm |
| Weight | 10.4 kg |
| Chassis material | Aluminum |
| Chassis color | Black front, dark gray rear |
| Operating temperature | 0–50 °C |
|---|---|
| MTBF | 30000 h |
| Certifications | CEFCCUKCAWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | AC/DC input | Supply voltage(V) |
|---|---|---|
| DP-X24/DC12 | DC | 9–18 V DC |
| DP-X24/DC125 | DC | 66–160 V DC |
| DP-X24/DC24 | DC | 18–36 V DC |
| DP-X24/DC48 | DC | 36–75 V DC |
| DP-X24/TRB | ACDC | 100–240 V AC9–18 V DC18–36 V DC36–75 V DC66–160 V DC |
