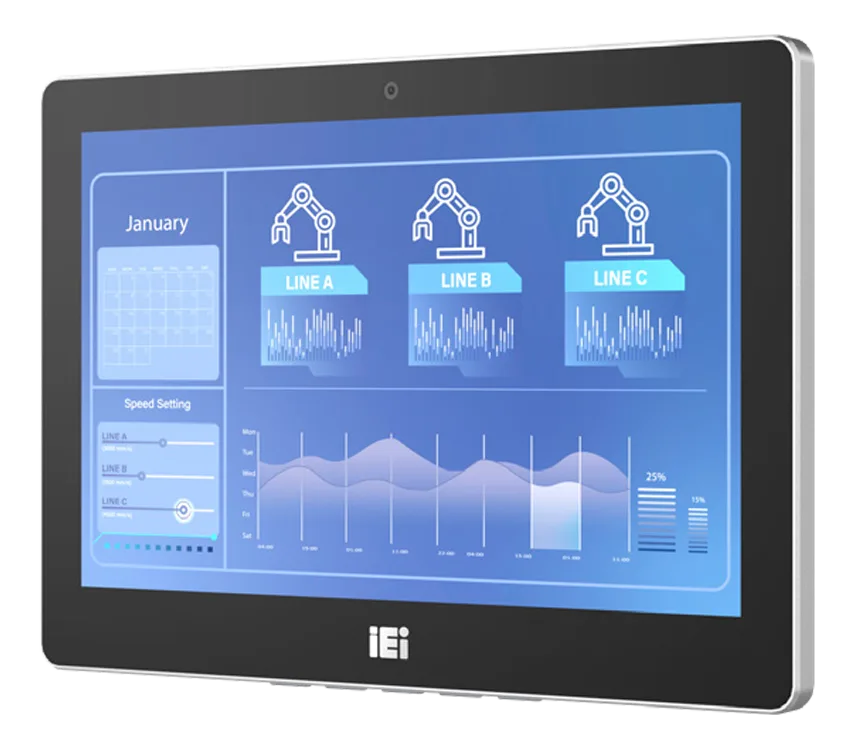

DM2-W101G-R1010.1" panel-mount monitor with capacitive touch and IP65 front
- Manufacturer
DM2-W101G-R10 is an industrial panel-mount monitor with a 10.1" display and a capacitive (PCAP) touchscreen, for use in production environments, control cabinets and installations with panel or VESA support mounting.
The front with IP65 protection rating and the -20~60 °C operating and storage temperature range allow its use in harsh conditions. The display adopts optical bonding with a brightness of 400 cd/m², a contrast ratio of 800 and 16.7 million colors, while the wide-range 9~36 V DC power input simplifies plant integration.
At a glance
- Display size: 10.1 ″
- Brightness: 400-599 high cd/m²
- Touchscreen: PCAP
- Video inputs: VGA
- Optical bonding: Yes
Technical specifications
| Display size | 10.1 ″ |
|---|---|
| Resolution | 1280x800(max) |
| Brightness | 400-599 high cd/m² |
| Touchscreen | PCAP |
| Video inputs | VGADisplayPortHDMI |
| Display colors | 16.7M |
| Touch points | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)(pcap) |
| OSD controls | 5-key membrane OSD keypad |
| Camera | 720P Wide Angle Fixed Focus* |
| Optical bonding | Yes |
| Video outputs | 1× DisplayPort 1.11× HDMI1× VGA (DB-15)1× DisplayPort 1.2 |
| Viewing angle | 178°/178° |
| Contrast ratio | 800:1 |
| Backlight MTBF | 20000 h |
| Touch controller | ilitek |
| USB ports | 4× USB 3.2 Gen1 Type-A (5V2A) (Lite without)1× USB 3.2 Gen1 Type-Bwith USB 3.0 HUB |
|---|---|
| Audio | 1× Line out |
| Other I/O | 1× 9V-36V DC jack · 1× 3-pin terminal block |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 52.8 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Weight | 1.52 kg(net) |
| Chassis color | Black+Silver |
| Cutout dimensions | 241.80 × 157.80 mm |
| Dimensions | 180.95 × 49.3 × 251 mm |
| Chassis material | alluminio, metallo |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–60 °C |
| Operating temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
