CS351Fanless 19"/2 rugged server with removable RAID drives
- Manufacturer

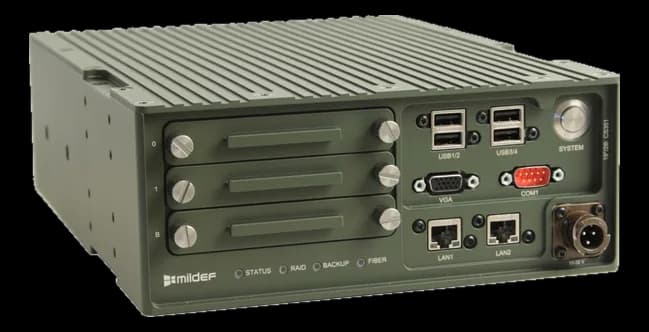

CS351 is a MilDef rugged server in 19"/2 format, fanless, for preconfigured and prevalidated systems where size, weight and dissipated power matter.
The processor is a Core i7-3615QE with memory up to 16 GB DDR3; storage uses two removable RAID 0/1 drives plus a removable USB drive and eSATA, while the I/O comprises two Gigabit Ethernet ports, one fiber LAN, six USB 2.0, one serial port and one VGA. Input is 10-32 V.
At a glance
- Processor: Intel Core i7-3615QE
- CPU class: Intel Core i3/i5/i7/i9
- Memory: Max. 16 GB RAM DDR3
- RAM type: DDR3
- Maximum RAM: 16 GB
Technical specifications
| Processor | Intel Core i7-3615QE |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| Memory | Max. 16 GB RAM DDR3 |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 16 GB |
| Storage | SATA HDD or SSD (optional) |
|---|
| Graphics | Intel HD4000 Graphics |
|---|---|
| GPU | Integrated |
| USB ports | 4× USB 2.0 + 2× USB 2.0 |
|---|---|
| Serial interfaces | 1× RS232 |
| Video outputs | 1× VGA |
| Other I/O | 1 x VGA 1 x RS232 2 x LAN GbE 1 x LAN Fiber 4 x USB 2.0 2 x USB 2.0 2 x Removable RAID disks 1 x Removable USB disk 1 x eSATA 1 x Power in 10-32V (ITS) 1 x Service port |
| Connectors | Standard |
| Ethernet ports | 2× LAN GbE + 1× LAN Fiber |
|---|
| Dimensions | 220 x 88 x 332 mm |
|---|
| Cooling | Fanless |
|---|---|
| Operating temperature | −40~55 |
| Storage temperature | -40–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
