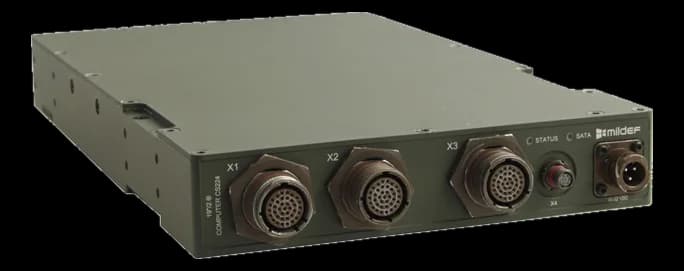

CS220 seriesFour military connectors for a complete I/O
- Manufacturer
CS220 series is a MilDef rugged computer in 19"/2 format, fanless, for preconfigured and prevalidated systems where size, weight and dissipated power matter.
The processor is a Core i7-3517UE with memory up to 16 GB DDR3 and Intel HD4000 graphics; the I/O is distributed across four MIL-DTL-38999 connectors and comprises four Gigabit Ethernet ports, six USB, three RS232 serial ports, DVI, VGA and eSATA, with a 10-32 V input.
At a glance
- Processor: Intel Core i7-3517UE
- CPU class: Intel Core i3/i5/i7/i9
- Memory: Max. 16 GB RAM DDR3
- RAM type: DDR3
- Maximum RAM: 16 GB
Technical specifications
| Processor | Intel Core i7-3517UE |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| Memory | Max. 16 GB RAM DDR3 |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 16 GB |
| Storage | SATA HDD or SSD (optional) |
|---|
| Graphics | Intel HD4000 Graphics |
|---|---|
| GPU | Integrated |
| USB ports | 4× USB (X1) + 1× USB (X2) + 1× USB (X3) |
|---|---|
| Serial interfaces | 2× RS232 (X1) + 1× RS232 (X3) |
| Video outputs | 1× DVI (X3) + 1× VGA (X3) |
| Other I/O | X1: 2 x RS232 1 x Audio 4 x USB X2: 4 x LAN GbE 1 x USB X3: 1 x DVI 1 x VGA 1 x Remote Power On 1 x USB 1 x RS232 X4: 1 x eSATA 1 x Power In 10-32V (ITS) 1 x Service Port |
| Connectors | MIL-DTL-38999 |
| Ethernet ports | 4× LAN GbE (X2) |
|---|
| Dimensions | 220 x 44 x 391 mm |
|---|
| Cooling | Fanless |
|---|---|
| Operating temperature | −40~55 |
| Storage temperature | -40–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
