CS211Fanless 19"/2 rugged computer with a removable system drive
- Manufacturer

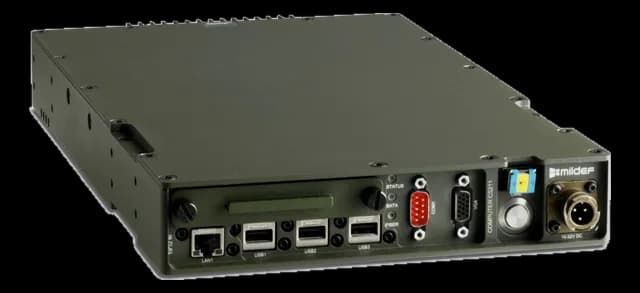

CS211 is a MilDef rugged computer in 19"/2 format, fanless, for preconfigured and prevalidated systems where size, weight and dissipated power matter.
The processor is a Core i7-3517UE with memory up to 16 GB DDR3 and Intel HD4000 graphics; the I/O comprises one RJ45 LAN port and one fiber LAN port, three USB 2.0, one RS232 serial port and one VGA, with a removable system drive and a 10-32 VDC input. The chassis measures 220x44x391 mm.
At a glance
- Processor: Intel Core i7-3517UE
- CPU class: Intel Core i3/i5/i7/i9
- Memory: Max. 16 GB RAM DDR3
- RAM type: DDR3
- Maximum RAM: 16 GB
Technical specifications
| Processor | Intel Core i7-3517UE |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| Memory | Max. 16 GB RAM DDR3 |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 16 GB |
| Storage | SATA HDD or SSD (optional) |
|---|
| Graphics | Intel HD4000 Graphics |
|---|---|
| GPU | Integrated |
| USB ports | 3× USB 2.0 |
|---|---|
| Serial interfaces | 1× RS232 |
| Video outputs | 1× VGA |
| Other I/O | 1 x VGA 1 x RS232 1 x LAN RJ45 1 x LAN Fiber 3 x USB 2.0 1 x Removable system disk 1 x Power in 10-32V DC (ITS) |
| Connectors | Standard |
| Ethernet ports | 1× LAN RJ45 + 1× LAN Fiber |
|---|
| Dimensions | 220 x 44 x 391 mm |
|---|
| Cooling | Fanless |
|---|---|
| Operating temperature | −40~55 |
| Storage temperature | -40–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
