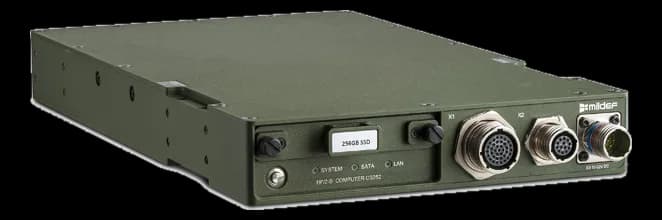

CS250 seriesFanless 19"/2 rugged computer with removable drive and digital I/O
- Manufacturer
CS250 series is a MilDef rugged computer in 19"/2 format, fanless, for preconfigured and prevalidated systems where size, weight and dissipated power matter.
The processor is a Core i7-3517UE with memory up to 16 GB DDR3; the I/O is distributed across five MIL-DTL-38999 connectors and comprises two Gigabit Ethernet ports, one fiber LAN, three USB, two RS232 serial ports, DVI and VGA, plus one ON/OFF digital input and one ON/OFF digital output. The chassis measures 220x44x400 mm and weighs 3.7 kg.
At a glance
- Processor: Intel Core i7-3517UE
- CPU class: Intel Core i3/i5/i7/i9
- Memory: Max. 16 GB RAM DDR3
- RAM type: DDR3
- Maximum RAM: 16 GB
Technical specifications
| Processor | Intel Core i7-3517UE |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| Memory | Max. 16 GB RAM DDR3 |
|---|---|
| RAM type | DDR3 |
| Maximum RAM | 16 GB |
| Storage | SATA HDD or SSD (optional) |
|---|
| Graphics | Intel HD4000 Graphics |
|---|---|
| GPU | Integrated |
| USB ports | 3× USB (X1) |
|---|---|
| Serial interfaces | 2× RS232 (X2) |
| Video outputs | 1× DVI (X1) + 1× VGA (clone from DVI interface) (X5) |
| Other I/O | X1: 3 x USB 1 x DVI 1 x Remote power on X2: 2 x GbE 2 x RS232 1 x Audio X3: 1 x LAN Fiber 1 x DC in 10-32V DC 1 x Digital input ON/OFF 1x Digital output ON/OFF X4: 1 x DC In 10-32V X5: 1 x VGA (clone from DVI interface) 1 x Removable system disk 1 x System button 1 x Power in 10-32V DC 1 x Service port |
| Connectors | MIL-DTL-38999 |
| Ethernet ports | 2× GbE (X2) + 1× LAN Fiber (X3) |
|---|
| Dimensions | 220 x 44 x 400 mm |
|---|---|
| Weight | 3.7 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | −40~55 |
| Storage temperature | -40–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
