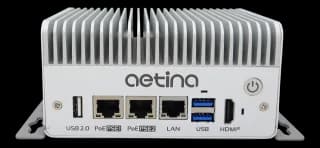

AIE-CO23_33-S1-AIE-CN33_43-A1Fanless edge AI system with NVIDIA Jetson Orin NX or Orin Nano Super Mode
- Manufacturer
- Configurations
- 2 available configurations
AIE-CO23/33-S1 and AIE-CN33/43-A1 are industrial-grade fanless edge AI systems built on the NVIDIA Jetson Orin Nano modules with Super Mode and Jetson Orin NX. They serve urban traffic analysis, security, retail, logistics robots and AMRs, precision agriculture and factory automation.
Two aspects set them apart: the Super Mode of the Jetson modules, which brings INT8 inference up to 157 TOPS on the AIE-CN43-S1-F configuration, and LTE, Wi-Fi and Bluetooth wireless connectivity via module. Aetina also provides BSP customization and validated peripherals.
Configurations: AIE-CO23-S1 and AIE-CO33-S1 with Orin Nano 4 GB and 8 GB; AIE-CN33-A1 and AIE-CN43-A1 with Orin NX 8 GB and 16 GB; AIE-CN33-S1-F and AIE-CN43-S1-F with Orin NX 8 GB and 16 GB, plus the AIE-CO23-1-S1, AIE-CO33-1-S1, AIE-CN33-1-A1, AIE-CN43-1-A1, AIE-CN33-1-S1-F and AIE-CN43-1-S1-F versions.
At a glance
- Powers two PoE cameras, 30 W PSE total
- 12–24 VDC input
- M.2 B/E/M-Key slot with 128 GB NVMe
- Support from NVIDIA JetPack 6.2
- Form factor 132 × 91.5 × 68.5 mm
Technical specifications
| AI module | NVIDIA Jetson Orin NanoNVIDIA Jetson Orin NX |
|---|---|
| Processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit 2MB L2 + 4MB L3 |
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores |
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| Video outputs | 1× HDMI 2.0 Type A1x HDMI 1.4 Type A(16GB) |
|---|
| Ethernet ports | 1× RJ-45 GbE Ports |
|---|---|
| USB ports | 1× OTG Type-C1x USB 2.0 Gen2 Type A(front)2x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)(front) |
| Serial interfaces | 1× CAN (Isolation; support CAN FD), 1× RS-422/485/232 (switch 3-in1) |
| Digital I/O | 7× GPIO, 1× SPI, 3× I2C, 1× UART |
| CAN bus | 1× CAN (Isolation; support CAN FD), 1× RS-422/485/232 (switch 3-in1) |
| Other I/O | 1× Recovery Button |
| PoE | 2× RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port, Total PSE ports support up to 30W ) |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | Equipped with 1× M.2 B-Key / E-Key / M-Key slot with built-in NVMe 128GB storage. · 1 x M.2 B-Key 3052 (LTE) |
|---|
| Supply voltage | 12–24 V |
|---|---|
| Battery / UPS | RTC Battery BR2032 |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | Ultra-compact 132× 91.5 × 68.5 mm form factor, optimized for space-constrained edge AI deployments.or 132× 91.5 × 83.5 mm form factor |
| Weight | 1.143 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-CN33-1-A1 |
| AIE-CN33-1-S1-F |
