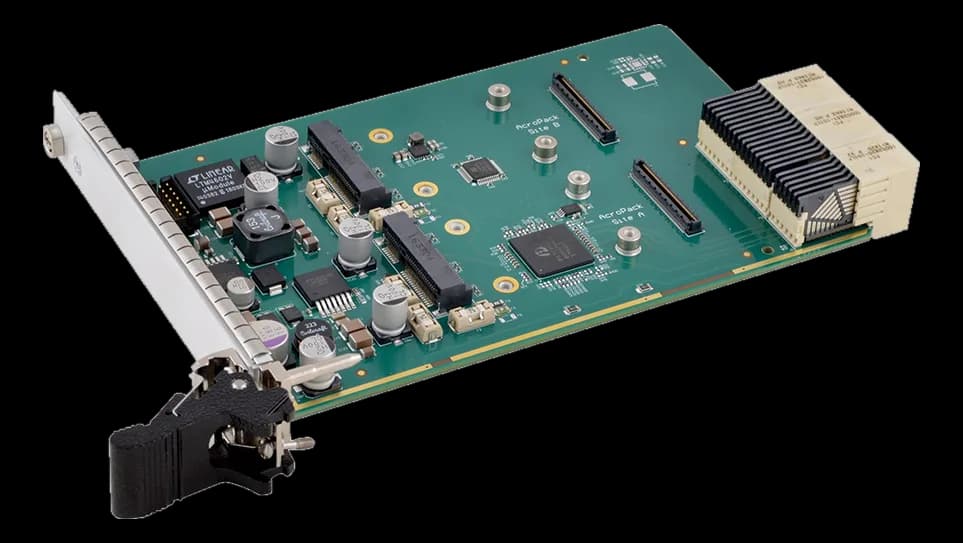

ACPS33203U CompactPCI Serial carrier card for two AcroPack or mini PCIe modules
- Manufacturer
ACPS3320 from Acromag is a carrier card in 3U CompactPCI Serial 4HP form factor, measuring 100 × 160 mm and weighing 163 g. Each hosted site is served by a PCIe x1 link and site B also provides a USB 2.0 interface; towards the system the board complies with the PICMG CPCI-S.0 R2.0 and PCI Express 2.1 specifications.
The operating temperature range runs from -40 to 85 °C with 200 LFM airflow; storage is specified from -55 to 125 °C and relative humidity from 5 to 95% non-condensing. On the EMC side it has EN 61000-6-2 immunity and EN 61000-6-4 Class A emissions.
At a glance
- Board function: Carrier
- Architecture standard: AcroPack
- Form factor: 3U 4HP
- Power consumption: 5 W
- Operating temperature: -40–85 °C
Technical specifications
| Storage | removable 2.5 inch solid state drive(2.5-SATA) |
|---|
| Connectors | CHAMP(68-pin dual CHAMP)N-pin connector(Two 68-pin 0.8mm Connectors) |
|---|
| Isolation | Yes |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | AcroPackCPCI-S.0 |
| Form factor | 3U 4HP |
| Bus interface | x1 Edge connector interface32-bit interface to the 2GB of LPDDR4 main memoryBoth AcroPack modules have a PCIe x1 link Operating / Storage Temperature Range ACPS3320-RTM: Rear transition module, 68-pin CHAMP |
| Power consumption | 5 W |
|---|
| Dimensions | 100 × 160 × 4 mm |
|---|---|
| Rugged / conformal coating | Conformal coating available on request |
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -55–125 °C |
| Certifications | CE |
|---|
| Operating systems | VxWorksLinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
